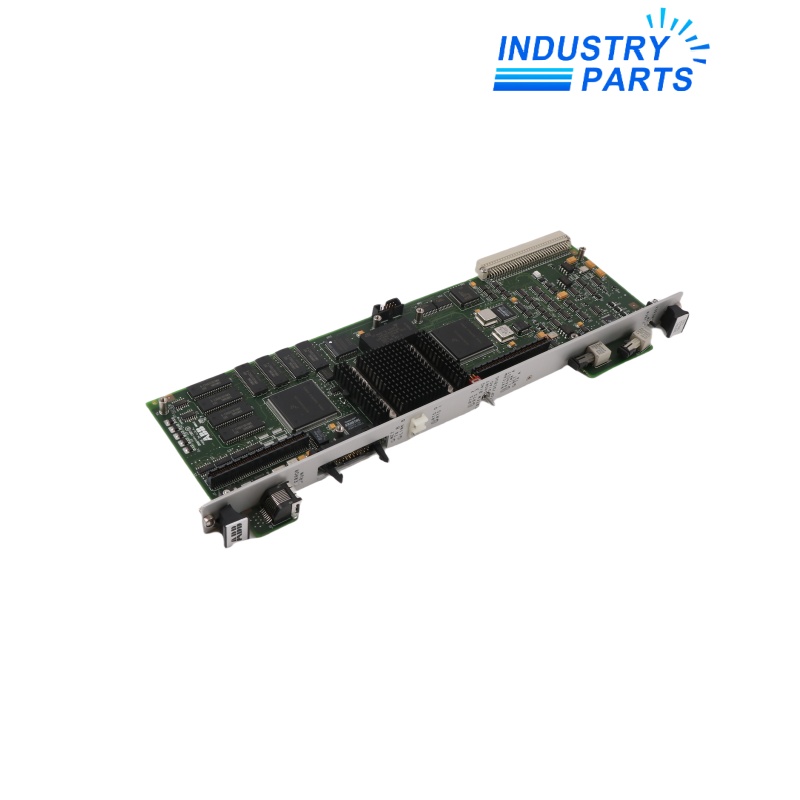

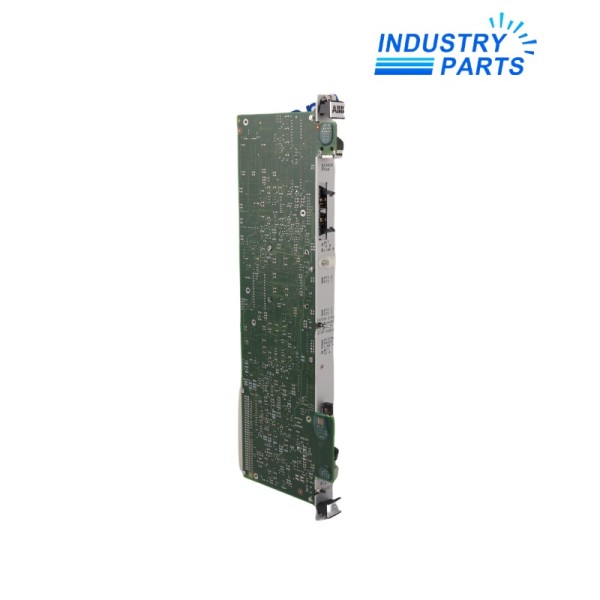

ABB 086444-001 MPRC086444-001 Scanning Board

Get in Touch

 Manager: Leonia

 E-mail: sales@mvme.cn

Phone: +8618030175807(whatsapp)

Basic Information

Part Number:086444-001 MPRC086444-001

Product Parameters:Scanning Board

Manufacturer:ABB

Back-plane Power:+5 V @ 1.2 A

Isolation:2500 VDC optical

Cable Length:≤ 300 m per channel

Operating Temperature:0 °C to +60 °C

Storage Temperature:–40 °C to +85 °C

Humidity:5 % – 95 % RH non-condensing

The ABB 086444-001 MPRC086444-001 module is a central processing board used in ABB’s legacy Scanning Platform systems. It provides the core microcontroller and interface logic required to manage data acquisition, diagnostics, and communication within the scanning electronics cabinet. Its onboard LEDs indicate both local diagnostic status and bus activity, helping maintenance personnel monitor board health and operational status.

On reset, the module performs internal checks, and its “ERROR” LED reflects local diagnostics, while the “RUN” LED’s brightness varies with the activity of its external bus. The board also supports network communication through its Ethernet ports, enabling data transfer between the scanning platform and host computer.
