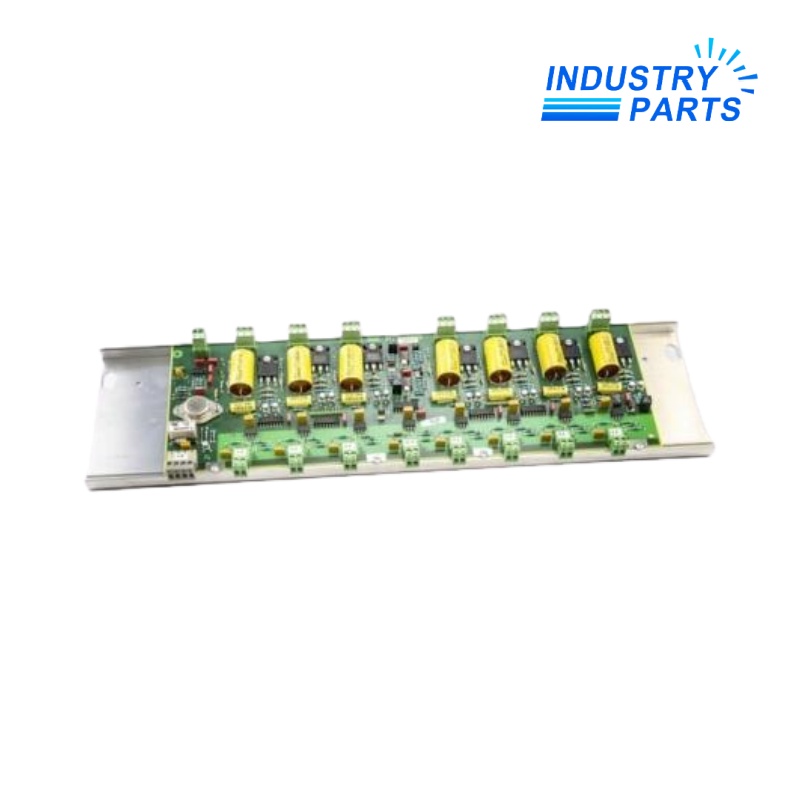

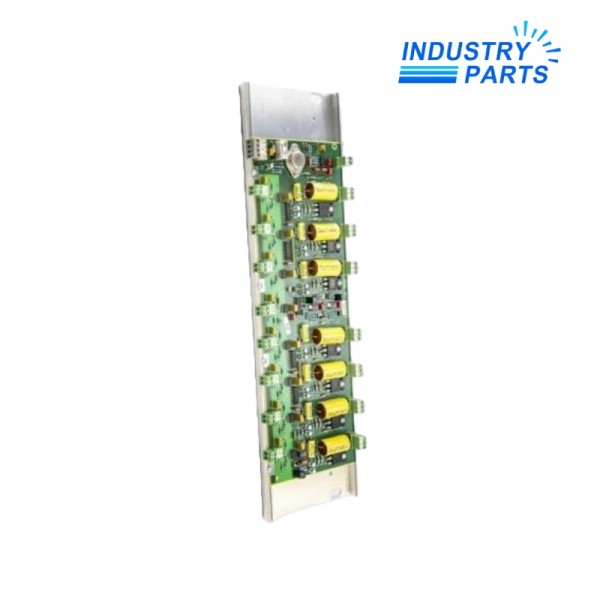

ABB DSTS103 DSTS 103 Trigger Pulse Amplifier

ABB

ABB DSTS103 DSTS 103 Trigger Pulse Amplifier.

Item No.:DSTS103 DSTS 103

Product Parameters:Trigger Pulse Amplifier

Brand:ABB

Voltage: 5-15V DC

Frequency: Up to 10kHz

Pulse Voltage: 24V DC

Peak Current: 2A

Pulse Width: 60-120μs

Input-to-output: 4kV AC

Channel-to-channel: 2kV AC

Operating Voltage: 220V AC ±15%

Power Consumption: 15W max

Backup Power: Optional 24V DC input

The ABB DSTS103 DSTS 103 Trigger Pulse Amplifier is a specialist module designed for the ABB S100/Advant®‑

class DCS environment. It functions as a conditioned signal interface card, accepting input trigger pulses and

converting or amplifying them into standardized analog outputs via jumpers S1 (AI1) and S2 (AI2).
