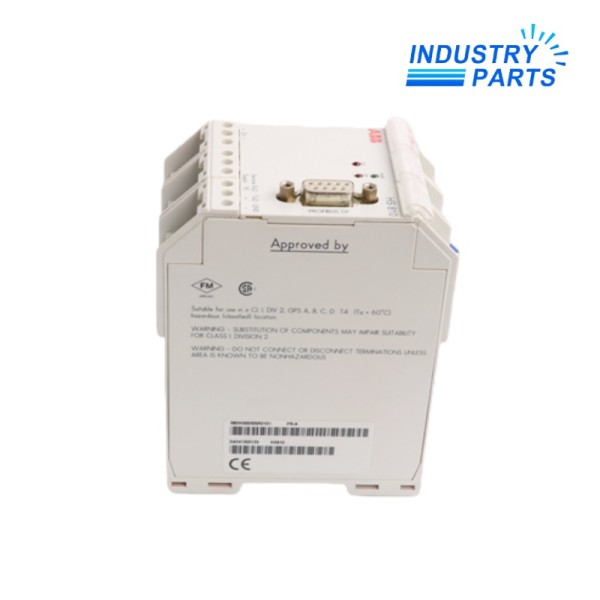

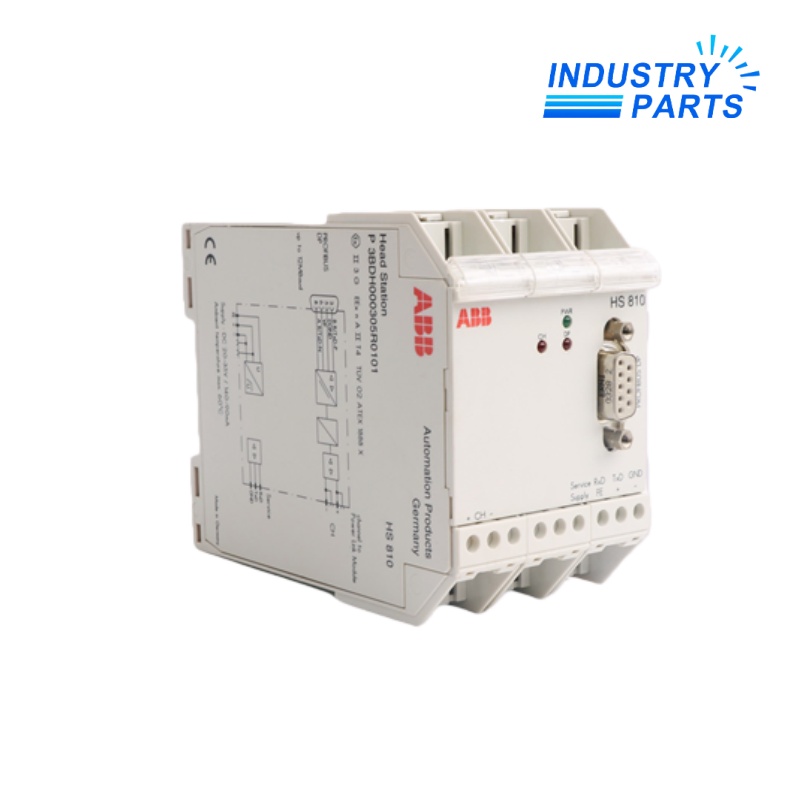

ABB HS810 Head station for LD 800P

Manager

E-mail

Phone

Leonia

sales@mvme.cn

+8618030175807(whatsapp)

Item NO.:HS810

Brand Name:ABB

Nominal voltage:20 ... 35 V DC

Nominal current:138 mA ... 84mA

Safety relevant maximum voltage Um:253 V AC/ 125 V DC

Ripples:< 10%

Power dissipation:3 W

Conductor cross section:up to 2,5 mm²

Housing:60 mm x 115 mm x 107 mm

Mass:600 g

Protection class:IP20

Functional Description

A Linking Device consists of one head station and at least one power link module for establishing the

connecton of PROFIBUS PA Segments to PROFIBUS DP. PROFIBUS is standardized accorting to EN 50

170/2. The head station supports all there defined transfer rates from 45.45 kBit/s up to 12 MBit/s.

The head station provides one channel. Up to 5 power link modules can be connected to one channel. Each

power link module creates a new segment.

The communication between the head station and the Power Link Modules is realized via removable

terminal blocks.

The communication is transparent. Each PA-subscriber is planned like a PROFIBUS DP subscriber and each

PA device is directly addressed like a DP slave device. The head station and the power link modules don’t

need to be planned.

It is allowed to mount the head station, and the power link modules within zone 2.

The channels are working with 31.25 kBaud (Manchaster coded). This saves from additonal time delay
