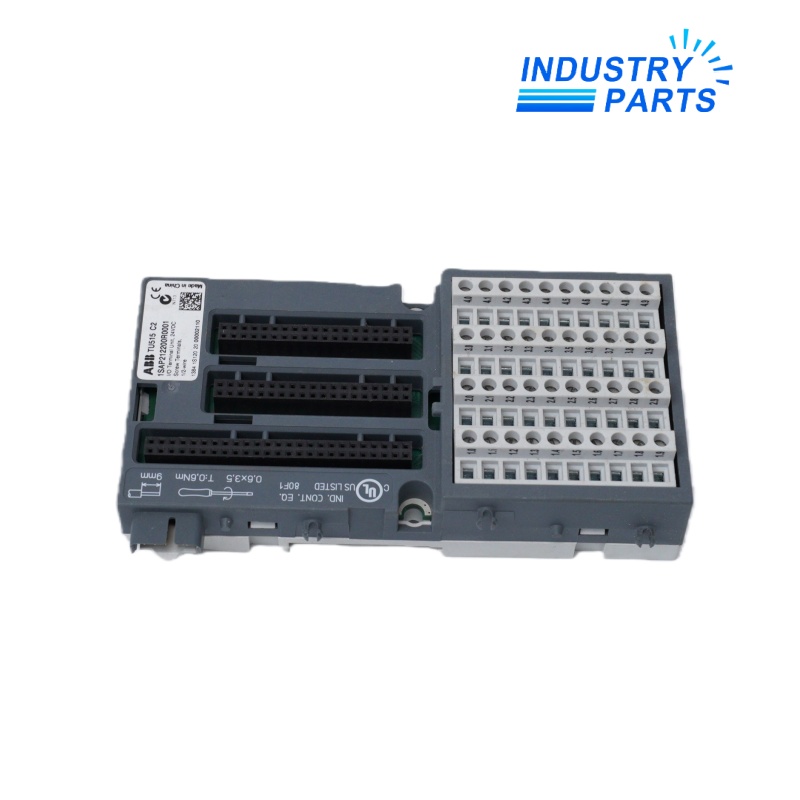

TU515 is the screw-terminal standard I/O base for compatible ABB AC500/S500 analog and 24 V DC digital modules. It supplies the field-termination layer between the plug-in I/O module, process voltage and local I/O bus.

Forty terminals are arranged in four channel groups. The inserted I/O module determines the actual signal assignment, while the base provides the common mechanical and electrical connection system.

• Connects the plug-in I/O module to the previous and following positions on the local I/O bus.
• Provides forty screw terminals for field signals and the common UP/ZP process-supply connections.
• Secures the inserted I/O module with two mechanical locks.
• Allows the field-wired terminal unit to remain in place during permitted module service.
• Provides a functional-earth connection through the DIN rail or wall-mounting screws.

• AC500 and S500 stations that use compatible analog, digital or mixed I/O modules.
• Control cabinets where screw-terminal field wiring is the required plant standard.
• Local I/O expansion chains with up to thirty-two module-defined signal positions.
• Maintenance work that separates the replaceable I/O module from the installed field termination.
• Horizontal or vertical panel arrangements designed to ABB system clearances.

• TU515 order code 1SAP212200R0001 is listed as Active.
• TU516 is the spring-terminal counterpart and must not be treated as the same orderable base.
• Standard TU515 does not include the hot-swap designation used by TU5xx-H products.
• Retain the I/O module order code, terminal assignment, supply grouping and cabinet position in the service record.
