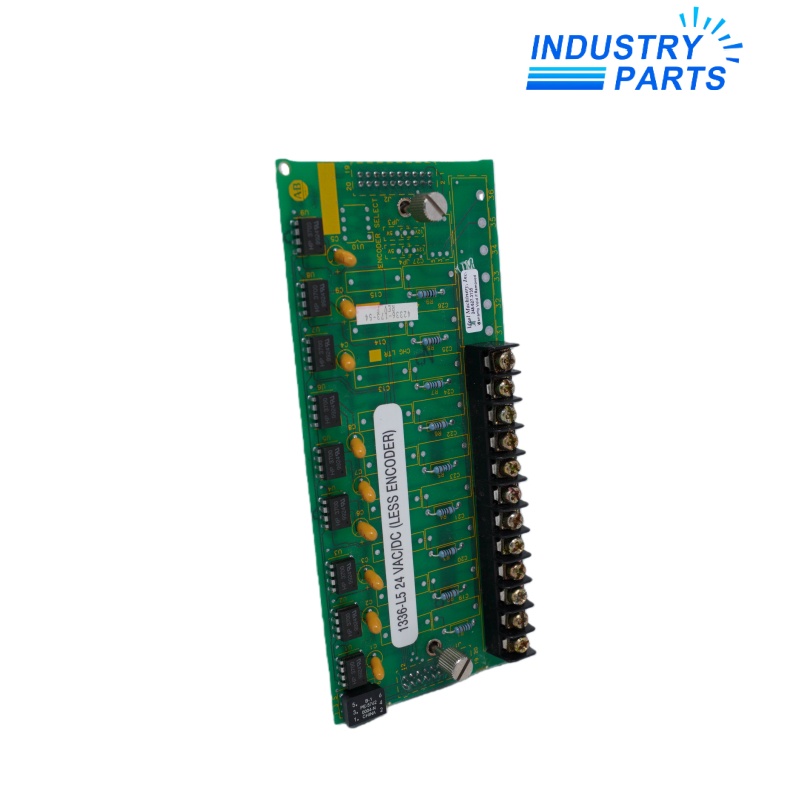

Allen-Bradley 1336-L5 42336-173-54 Control Interface Board

Allen-Bradley

Allen-Bradley 1336-L5 42336-173-54 Control Interface Board

Item NO.:1336-L5 42336-173-54

Product Parameters:Control Interface Board

Brand name :Allen-Bradley

Input Voltage: 24V AC/DC

Product Family: 1336 Adjustable Frequency AC Drive

Product Lifecycle Status: Discontinued/Obsolete

Product Description: Control Interface Board

Alternate Description: Logic PCB for main CTL

Compatible Drive Series: 1336 Plus, 1336 Force, and 1336 Impact

Compatible Drive Frame: Frame A-H

No. of Units per Drive: One (1)

Terminal Strip: TB3

Terminal Type: Screw Type

Recommended Wire Size: 2.1 and 0.30 mm² (14 and 22 AWG)

Tightening Torque: 0.90-1.13 N·m (8-10 lb.-in.)

The 1336-L5 is a Control Interface option card that is part of the 1336 Plus Adjustable Frequency AC Drive by

Allen-Bradley. It is specifically compatible for use with the 1336 Plus, 1336 Force, and 1336 Impact, drives specifically,

Frame A-H drives except Frame C drives with 25 HP and 30 HP power rating. This control interface board is mounted

at the bottom of the main control board, sitting atop the TB2 terminal strip.
