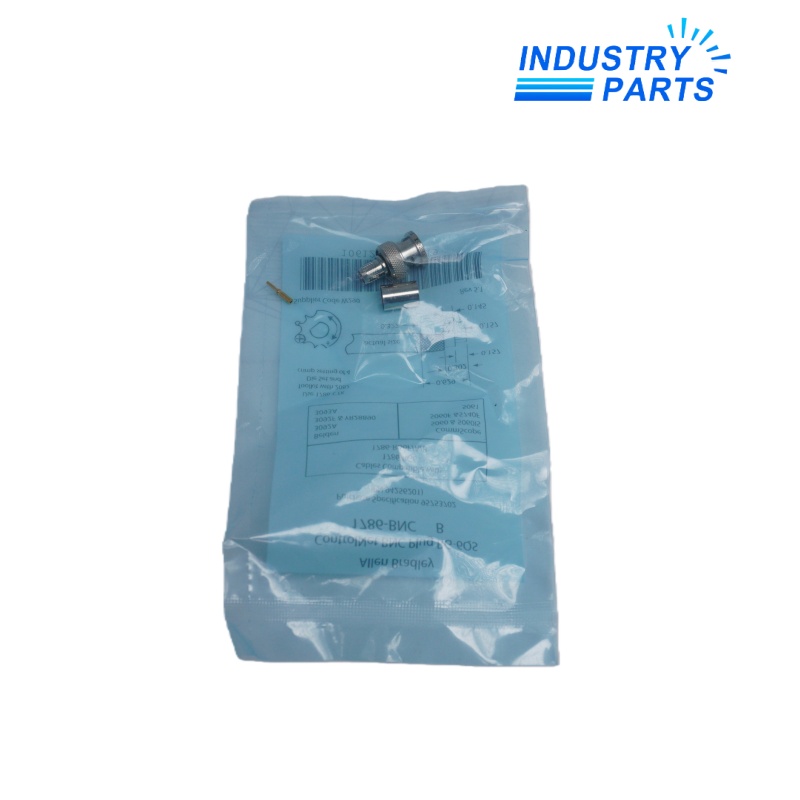

Allen-Bradley 1786-BNC Cable Connector

Reach Us

Manager

E-mail

Phone

Leonia

sales@mvme.cn

+8618030175807(whatsapp)

Key specifications

Model:1786-BNC

Brand:Allen-Bradley

Type:Cable Connector

Impedance：75Ω ±1Ω

Frequency Range：0-4 GHz

VSWR：≤1.3:1 @ 3 GHz

Insertion Loss：≤0.3 dB @ 3 GHz

Operating Temp：-40°C to +85°C

Humidity：0-95% RH (non-condensing)

Vibration：10-500 Hz, 15G

The Allen‑Bradley 1786-BNC is a ControlNet media coaxial BNC connector designed to support high‑integrity data communication in industrial automation networks. It is part of the Allen‑Bradley ControlNet cable system components used to join coaxial trunk cable sections to network nodes, ensuring consistent signal transmission across ControlNet physical media. This connector is engineered specifically for 75 Ω impedance coaxial systems, matching the characteristic impedance of standard ControlNet cabling and enabling reliable network performance.

Packing & Delivery

100% full New! - Original Factory Seal!

Warranty: 12 months!

Package: Original packing with cartons.

Delivery time: Shipped in 3 days after payment.
