Allen-Bradley 1790D-TN4V0 CompactBlock LDX 4 A/I Base Block
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameAllen-Bradley 1790D-TN4V0 CompactBlock LDX 4 A/I Base Block
- Item NO.3495853
- Weight2.0000 kg = 4.4092 lb = 70.5479 oz
- CategoryPLC
- BrandAllen-Bradley
- Creation Time2025-12-23
- Allen-Bradley CompactBlock LDX 4 A/I Base Block
Allen-Bradley

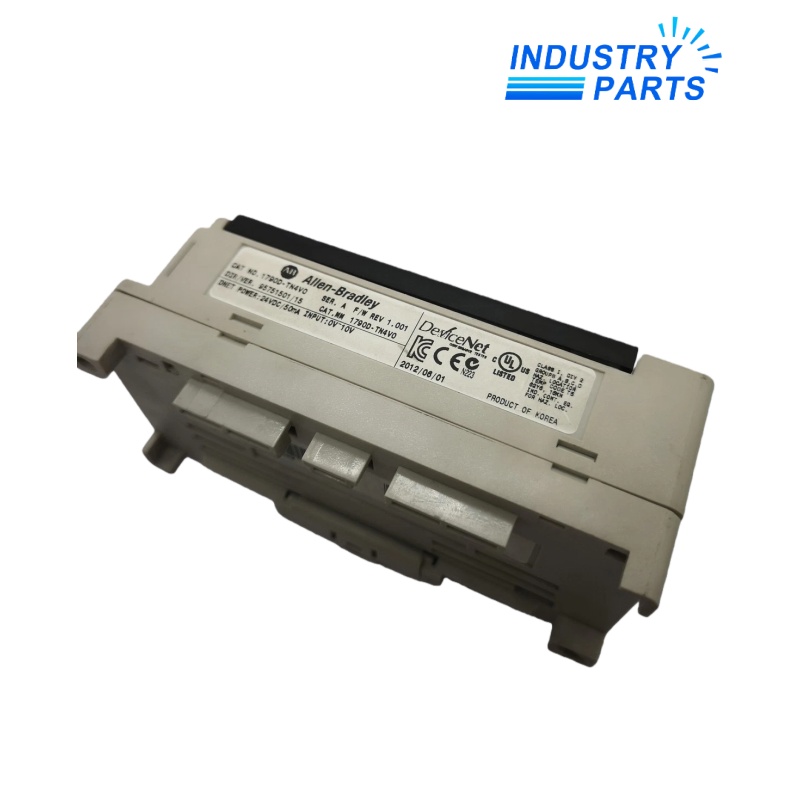

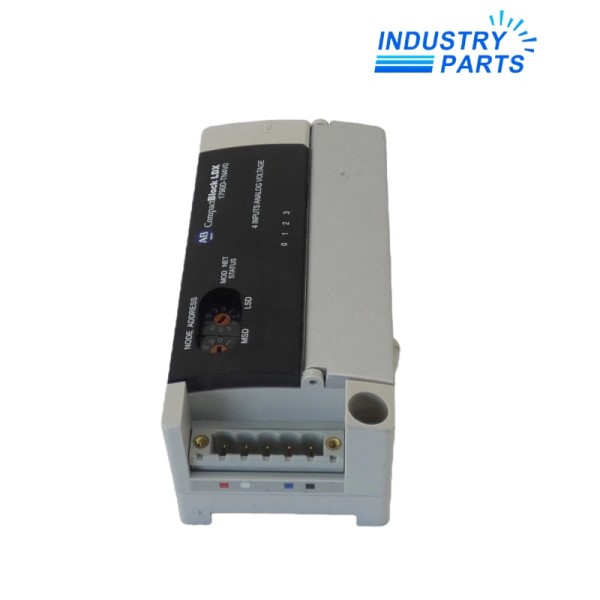

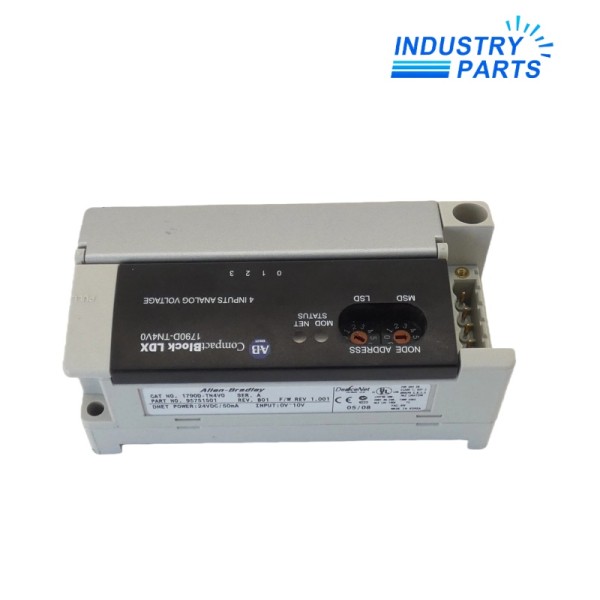

Allen-Bradley 1790D-TN4V0 CompactBlock LDX 4 A/I Base Block
|
|
||
|
Manager |
|
Phone |
|
Leonia |
+8618030175807(whatsapp) |
|
|
|
|
Model:1790D-TN4V0 Brand:Allen-Bradley Type:CompactBlock LDX 4 A/I Base Block
Inputs per Module：4 channel single-ended, nonisolated Input Voltage：0…10 V Resolution：12 bits-unipolar Conversion Time：10 ms/channel Overall Accuracy：0.2% Full scale @ 0…55 °C Input Impedance：500 KΩ min Insulation Resistance：20 mΩ min @ 250 V DC Supply Voltage：24 V DC nom Voltage Range：11…28.8 V DC Power Dissipation：1.2 W max @ 28.8 V DC
The Allen‑Bradley 1790D-TN4V0 CompactBlock LDX 4 A/I Base Block is an analog input base module in the CompactBlock™ LDX I/O family, designed for distributed I/O applications on DeviceNet networks. It provides four single‑ended analog voltage input channels (0–10 V) to collect field signal data from industrial sensors and instrumentation, converting these signals into digital values for use by a DeviceNet‑based control system. This base block integrates DeviceNet network connectivity, built‑in node addressing, and DeviceNet autobaud detection to simplify network commissioning and enable real‑time data exchange in light‑industrial environments.
|
|
|
|
|
