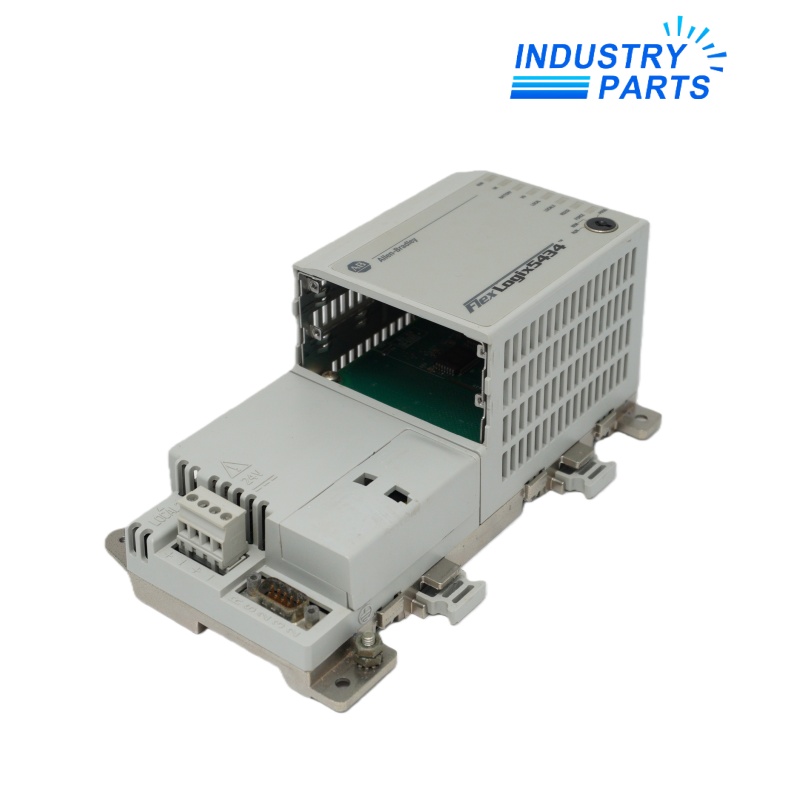

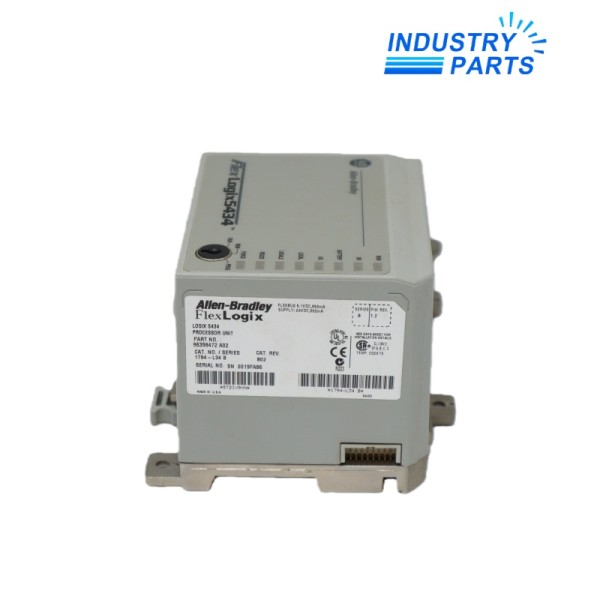

Allen-Bradley 1794-L34 FlexLogix Processor

Allen-Bradley

Allen-Bradley 1794-L34 FlexLogix Processor

❋Item Specifics❋

Product Model:1794-L34

Product Parameters: FlexLogix Processor

Manufacturer:Allen-Bradley

Thermal Dissipation: 87 BTU/hour @ 19.2 V

Power Dissipation: 25.5 W maximum at 19.2 V; 20.4 W maximum at 24 V DC

Isolation Voltage: 30 V DC (Qualification tested to withstand 850 V DC for 60 s)

User Memory: 512 Kbytes

Nominal Power Supply Voltage: 24 V DC

Power Supply Voltage Range: 19.2‑31.2 V DC

Backplane Current: 653 mA maximum @ 5.1 V DC

Extended Local I/O Cable: 1794‑CE1 cable (1 foot); 1794‑CE3 cable (3 feet)

Mounting: DIN Rail; Panel Mount

DIN Rail Type: Steel, 35 x 7.55 mm DIN rail A-B part number 199-DR1; 46277-3; EN 50022

Memory: 512 Kb

Input Voltage: 24 Volts DC

Input Current: 0.85 A at 24 Volts DC maximum

Flexbus Current Output: 653 mA at 5.1 Volts DC maximum

Power Connector Torque: 0.6 to 0.8 N-m

The Allen‑Bradley 1794-L34 is a FlexLogix processor/controller from Rockwell Automation designed to serve as the

central processing unit in a Flex I/O distributed I/O system, providing logic execution and communications capabilities

for industrial automation applications. It incorporates an onboard processor with embedded user memory and supports

modular communication adapters to interface with standard industrial networks such as EtherNet/IP, DeviceNet, and

ControlNet, enabling integration into broader plant control architectures while maintaining flexible and scalable I/O

distribution.
