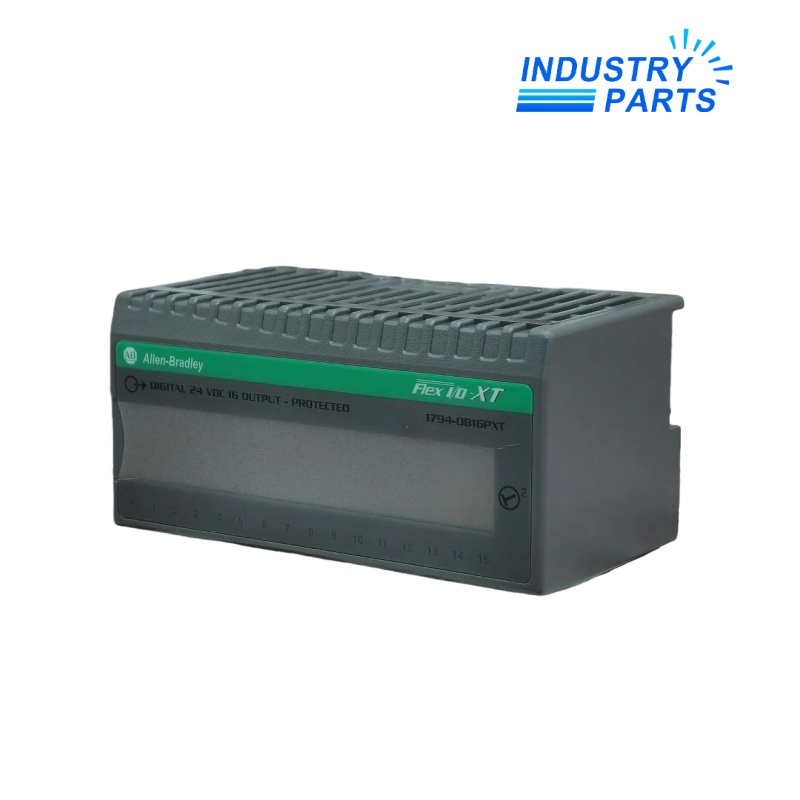

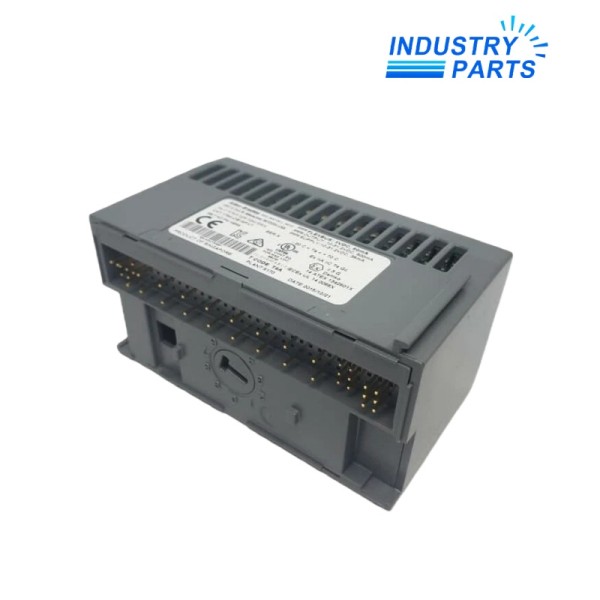

Allen-Bradley 1794-OB16PXT Digital Output Module

Allen-Bradley

Allen-Bradley 1794-OB16PXT Digital Output Module

❋Item Specifics❋

Product Model:1794-OB16PXT

Product Parameters:Digital Output Module

Manufacturer:Allen-Bradley

Number of Digital Outputs: 16

Digital Output Type: 24 V DC Sourcing (NPN) type

Nominal On-State Voltage: 24 V DC

Operating Temperature, Max.: 70 °C

Operating Temperature, Min.: -20 °C

On-State Current: 1.0 mA min. per channel, 500 mA max. per channel

Output Current Rating: 8.0 A (16 outputs at 0.5 A)

Flexbus Current: 60 mA

Power Dissipation, Max.: 5.0 W at 31.2 V DC

Thermal Dissipation, Max.: 17.0 BTU/hr at 31.2 V DC

Indicators: 16 yellow status indicators

The Allen‑Bradley 1794-OB16PXT is a Flex I/O XT 16‑Point Digital Output Module from Rockwell Automation

designed to provide sixteen protected digital output channels within a distributed I/O architecture. It mounts on a

compatible Flex I/O terminal base and communicates with a host controller via the FlexBus backplane, enabling

reliable discrete output control such as activating actuators, indicators, and other DC field devices.
