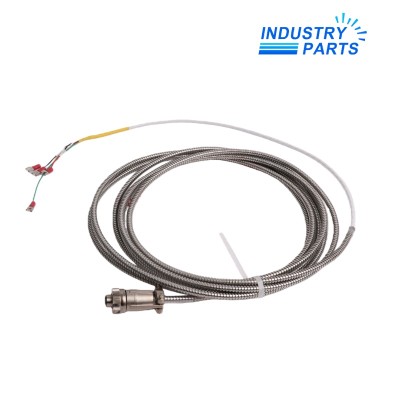

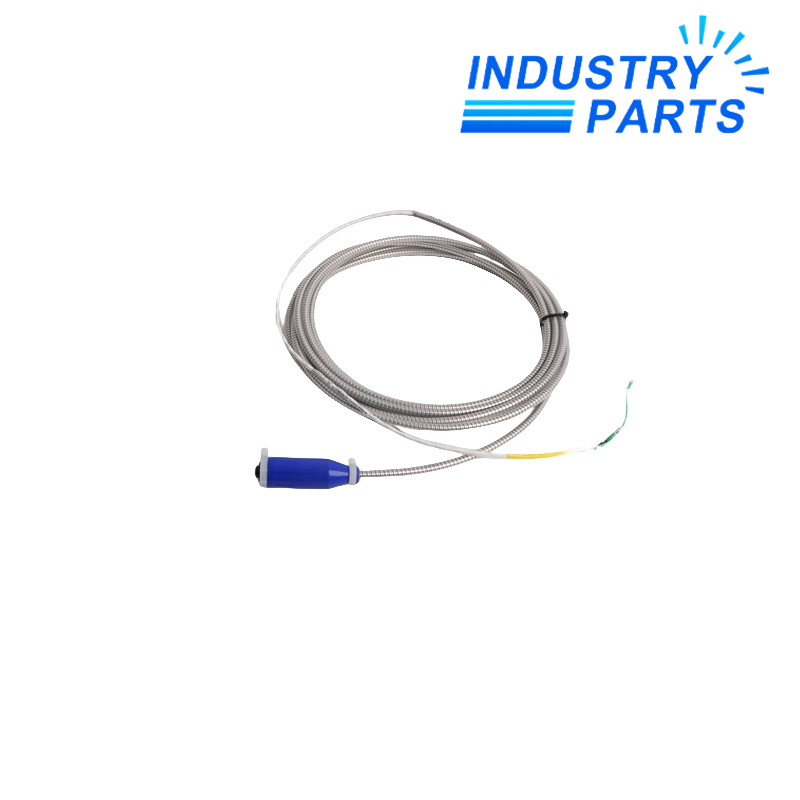

Armored construction protects the sensor interconnection in industrial machinery environments.
Overview
106765-07 is the seven-metre version of the Bently Nevada 106765 interconnect cable assembly. The manufacturer lists the 106765-AA cable as an accessory for the 330525 Velomitor XA piezo-velocity sensor.
The cable uses two 22 AWG conductors with shielding and a protective stainless-steel armor. White, black and green terminations identify the A, B and shield conductors.
The complete 106765-07 suffix must remain on the enquiry because the 106765 family is ordered by cable length and adjacent suffixes are not the same assembly.
Specifications
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Exact part number | 106765-07 |
| Product family | 106765 interconnect cable |
| Matched sensor family | 330525 Velomitor XA piezo-velocity sensor |
| Cable length | 7 m (23.0 ft) |
| Conductors | Two-conductor, 22 AWG |
| Construction | Shielded cable with stainless-steel armor |
| Lead identification | A white; B black; shield green |
| Manufacturer ordering range | 1 to 25 m for the 106765-AA family |
| Ordering increment | 3 m increments after the minimum length |
Features
Shielded two-conductor design preserves the Velomitor XA signal path to the monitoring wiring.
Factory length suffix keeps installed routing and spare identity traceable.
Dedicated conductor colors support controlled termination and inspection.
Applications
- Connection of a 330525 Velomitor XA sensor to compatible vibration-monitor field wiring.
- Machinery vibration installations requiring a seven-metre armored sensor lead.
- Like-for-like cable replacement where the installed label confirms 106765-07.
About IndustryParts
https://www.industryparts.com/Cable length and sensor identity stay linked
IndustryParts prepares 106765-07 enquiries around the exact seven-metre suffix, 330525 sensor identity and installed routing evidence.
- Seven-metre suffix retained
- Sensor label requested
- Termination evidence reviewed
Lifecycle
- Photograph both end terminations and the complete 106765-07 label before removal.
- Confirm the seven-metre route, bend protection and connector condition before ordering.
- Keep armor, shield and conductor terminations free from mechanical damage and contamination.
- After installation, verify continuity, insulation, shield termination and stable sensor response.
FAQ
Can 106765-07 be replaced by another 106765 cable length?
Only after the routing, enclosure position and approved spare record are reviewed. The -07 suffix identifies seven metres and should not be discarded as a minor revision.
What should accompany an enquiry for 106765-07?
Provide the complete cable and sensor labels, required quantity, route length, connector photographs, armor condition and the connected monitor channel.
Is 106765-07 a probe or the interconnect cable?
It is the armored interconnect cable used with the 330525 Velomitor XA sensor; the sensor is a separate item.
How should a stored 106765-07 cable be protected?
Cap the ends, avoid tight coils and crushing loads, protect the armor from kinks and keep the identification label visible.
What proves a replacement 106765-07 is ready for service?
Record exact identity, continuity and insulation checks, correct A/B/shield termination, secure routing and a stable vibration signal under the approved test.
