Ten-metre factory length serves longer sensor-to-junction routing without changing the cable family.
Overview

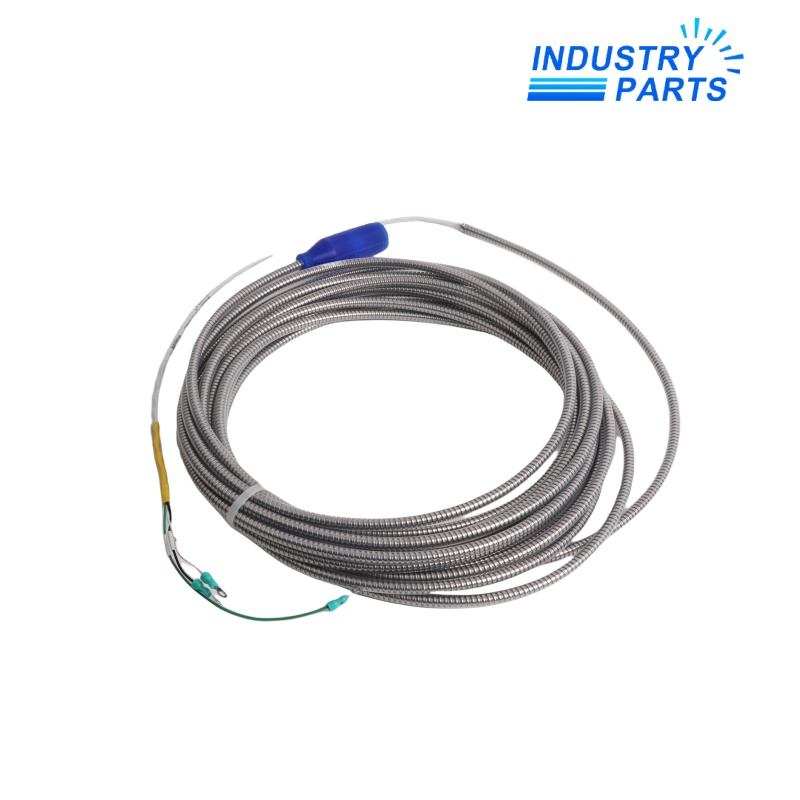

106765-10 is the ten-metre member of the Bently Nevada 106765 interconnect cable family used with the 330525 Velomitor XA sensor.
Manufacturer documentation identifies the family as a two-conductor shielded cable assembly with 22 AWG conductors, stainless-steel armor and color-identified A, B and shield leads.
The -10 suffix is a length selection, not a revision that can be shortened in the product name. It must remain visible in procurement, installation and spare records.
Specifications
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Exact part number | 106765-10 |
| Product family | 106765 interconnect cable |
| Matched sensor family | 330525 Velomitor XA piezo-velocity sensor |
| Cable length | 10 m (32.8 ft) |
| Conductors | Two-conductor, 22 AWG |
| Construction | Shielded cable with stainless-steel armor |
| Lead identification | A white; B black; shield green |
| Manufacturer ordering range | 1 to 25 m for the 106765-AA family |
| Ordering increment | 3 m increments after the minimum length |
Features
Stainless-steel armor provides mechanical protection around the shielded conductors.
Color-coded leads simplify inspection against the documented A, B and shield connections.
Exact suffix control prevents a seven-metre or other length from being supplied accidentally.
Applications
- 330525 Velomitor XA installations requiring a ten-metre armored interconnect route.
- Machinery vibration monitoring where the sensor cable must reach a remote terminal or field-wiring point.
- Maintenance replacement based on a complete 106765-10 label.
About IndustryParts
https://www.industryparts.com/Ten-metre cable supply stays installation-specific
IndustryParts keeps 106765-10 separate from shorter 106765 variants and requests route and termination evidence before quotation.
- Ten-metre length confirmed
- Armor condition reviewed
- Monitor channel documented
Lifecycle
- Measure and document the installed route before selecting the ten-metre assembly.
- Avoid kinks, crushed armor and unsupported connector loads during installation.
- Terminate the A, B and shield conductors according to the approved wiring record.
- Verify electrical integrity and the monitor signal before closing the machinery protection loop.
FAQ
Is 106765-10 the same as 106765-07?
No. Both belong to the same interconnect-cable family, but 106765-10 is ten metres and 106765-07 is seven metres.
What should be sent for a 106765-10 quotation?
Provide cable and 330525 sensor labels, required quantity, measured route, termination photographs and the condition required.
Can excess 106765-10 length simply be coiled in the enclosure?
Only if the approved installation allows it and bend radius, segregation and enclosure space remain compliant. Confirm routing before choosing a longer cable.
How should 106765-10 be inspected after shipment?
Check the label, cable length, armor, boots, clamps, connectors and exposed leads before continuity and insulation testing.
What closes the 106765-10 replacement record?
Retain exact part identity, routing photographs, A/B/shield verification, electrical test results and a stable Velomitor XA channel response.
