Bently Nevada 106765-25 Velomitor XA Interconnect Cable
A twenty-five-metre armored sensor cable assembly for the 330525 Velomitor XA installation.
Key Information

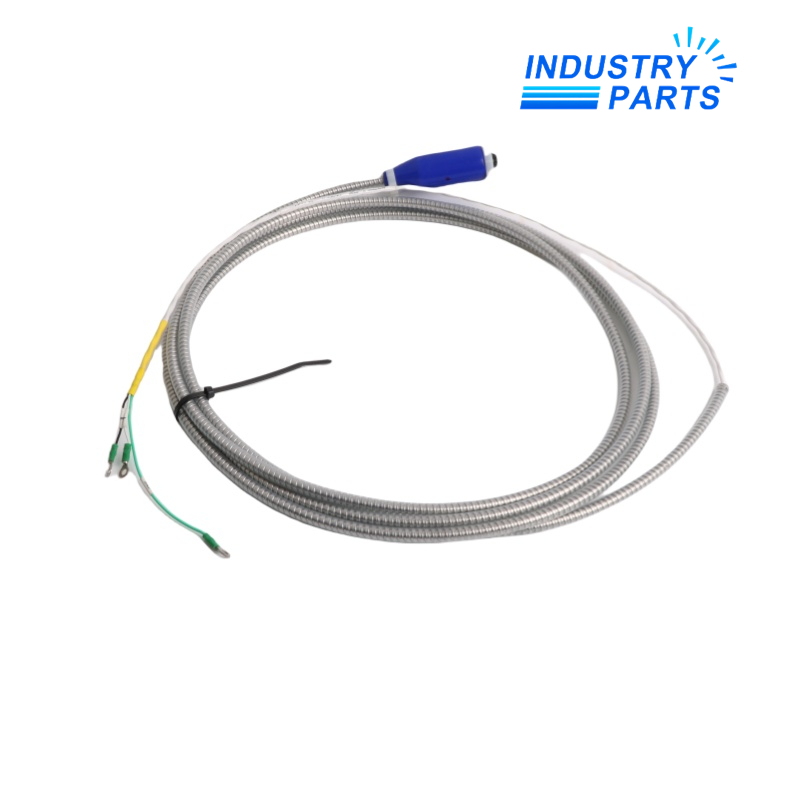

106765-25 is the 25 m interconnect cable specified for the Bently Nevada 330525 Velomitor XA piezo-velocity sensor. It carries the sensor conductors and shield between the field sensor and the monitoring connection.
The cable assembly includes a weather-resistant sensor-end arrangement and stainless-steel armor. The installed route, terminal housing and hazardous-area entity parameters must be checked as part of the complete channel.
Functions
- Connects a 330525 Velomitor XA sensor to the field termination or monitor wiring path.
- Protects the signal conductors with an armored construction for demanding field routing.
- Maintains the A, B and shield conductor assignments required by the sensor loop.
Specifications
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Part Number | 106765-25 |
| Product Type | Velomitor XA interconnect cable |
| Compatible Sensor Family | 330525 Velomitor XA |
| Configured Length | 25 m (82 ft) |
| Conductors | 22 AWG A, B and shield conductors |
| Mechanical Protection | Stainless-steel armor over cable |
| Optional Protection | Splash-resistant boot and clamps are separate accessories |
Installation
- Observe the specified cable bend radius and keep the connector free from side loading.
- Verify A, B and shield termination against the approved channel drawing before connection.
- Use the correct terminal housing or mounting block when transitioning to bulk field wiring.
- For classified areas, include the cable in the complete intrinsic-safety or Zone 2 entity-parameter review.
Lifecycle
- Inspect the armor, connector, boot and clamps during planned machine outages.
- Do not substitute a generic cable that lacks the required sensor connector and conductor arrangement.
- Retain the cable length and sensor serial information in the channel record for future diagnostics.
FAQ
Is 106765-25 a proximity-probe extension cable?
No. 106765-25 is the interconnect cable for the 330525 Velomitor XA piezo-velocity sensor, so it should not be selected for a proximity probe loop.
What should be confirmed before ordering 106765-25?
Confirm the 330525 sensor, route length, connector condition, terminal-housing arrangement and hazardous-area wiring design.
Are the splash-resistant boot and clamps included automatically with 106765-25?
They are listed as separate accessories, so the quotation should state explicitly whether the boot and both clamps are required.
Can 106765-25 be shortened in the field?
Field alteration should not be assumed acceptable; preserve the supplied assembly and use the documented termination method for the monitoring connection.
What should be tested after installing 106765-25?
Check conductor continuity, shield isolation, connector seating, sensor polarity, channel bias and the resulting vibration signal before service release.
