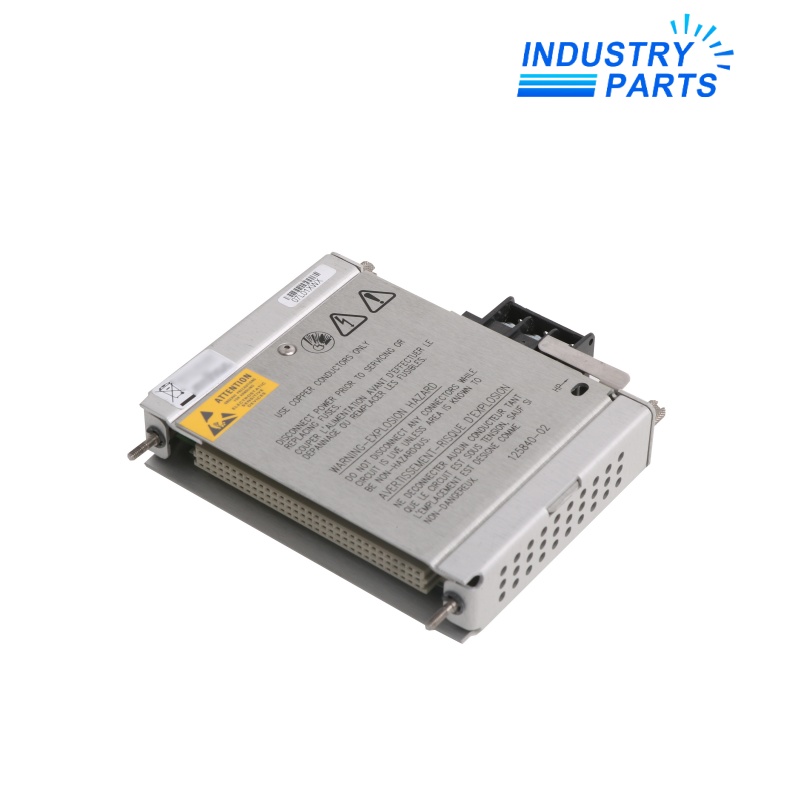

Bently Nevada 125840-02 Power Supply

Bently Nevada 125840-02 Power Supply

Item NO.: 3317017
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada 125840-02 Power Supply
  • Item NO.3317017
  • Weight0.3400 kg = 0.7496 lb = 11.9931 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2025-08-14
  • Legacy Low Voltage AC Power Input Module
125840-02 Product Page
Bently Nevada · 3500/15 AC and DC Power Supplies

Bently Nevada 125840-02 Legacy Low Voltage AC Power Input Module

The Bently Nevada 125840-02 is the legacy Low Voltage AC Power Input Module used behind the associated 3500/15 AC power supply in an earlier 3500 rack power architecture.

Product Information

Overview

The Power Input Module occupies the special half-height rear position directly behind its associated front 3500/15 power supply. For the legacy Low Voltage AC configuration, the module provides the incoming AC connection to the power-supply pair.

Baker Hughes' current 3500/15 documentation retains the legacy Low Voltage AC architecture for compatibility reference and explicitly states that later Universal AC hardware must not be mixed with the legacy High Voltage AC or Low Voltage AC units.

Official Technical Data

Technical Specifications

Manufacturer Bently Nevada, a Baker Hughes company
Part Number 125840-02
Associated System 3500/15 Power Supply
Product Type Legacy Low Voltage AC Power Input Module
Legacy Input Range 85–132 Vac rms
Input Frequency 47–63 Hz
Full-Rack Legacy Input Current 4.5 A rms maximum
Rack Position Special half-height rear position behind associated power supply
Operating Temperature -30°C to +65°C
Storage Temperature -40°C to +85°C
Humidity 95%, non-condensing
Functional Characteristics

Key Features

Legacy Low Voltage AC Input
Provides the rear input interface for the earlier 3500 Low Voltage AC power architecture.
Dedicated Rear Position
Installs directly behind the corresponding front power-supply module.
Redundant Rack Support
The 3500 rack can use two supplies so the second supply can back up the primary supply.
Generation-Specific Hardware
Must remain matched to the legacy AC power-supply architecture.
Typical Uses

Applications

Existing 3500 Racks
Maintenance of racks built with legacy Low Voltage AC power hardware.
Machinery Protection Systems
Power-input interface for 3500 monitoring racks in existing installations.
Shutdown Maintenance
Exact-model replacement work during scheduled plant maintenance.
Legacy System Support
Service of long-running 3500 installations where the original AC generation is retained.
Service & Product Status

Lifecycle

Baker Hughes' current 3500/15 datasheet no longer lists 125840-02 in the current spare-parts table, but it still documents the legacy Low Voltage AC PIM architecture and its electrical range for installed-system compatibility.
Replacement / Compatibility Note
Universal AC Power Supply / PIM hardware is not compatible with the legacy High Voltage AC or Low Voltage AC units. A migration should be treated as a matched power-system change rather than a one-module substitution.
Buyer & Maintenance Questions

Frequently Asked Questions

1. Is 125840-02 the complete 3500/15 power supply?
No. It is the rear Low Voltage AC Power Input Module; the front power-supply module is a separate component.
2. What input range is associated with 125840-02?
The legacy Low Voltage AC architecture is documented at 85–132 Vac rms and 47–63 Hz.
3. Can 125840-02 be replaced directly by a Universal AC PIM?
No direct one-for-one replacement should be made because Baker Hughes states that Universal AC hardware is not compatible with the legacy AC units.
4. What should be checked before ordering 125840-02?
Verify the rear PIM part number, the matching front power supply, incoming AC supply and the rack's existing power-generation architecture.
5. Where is 125840-02 installed?
The PIM is installed in the special half-height rear position directly behind its associated 3500/15 power supply.
