Provides the internal field-termination interface for the six-channel 3500/60 monitor.
Key Information

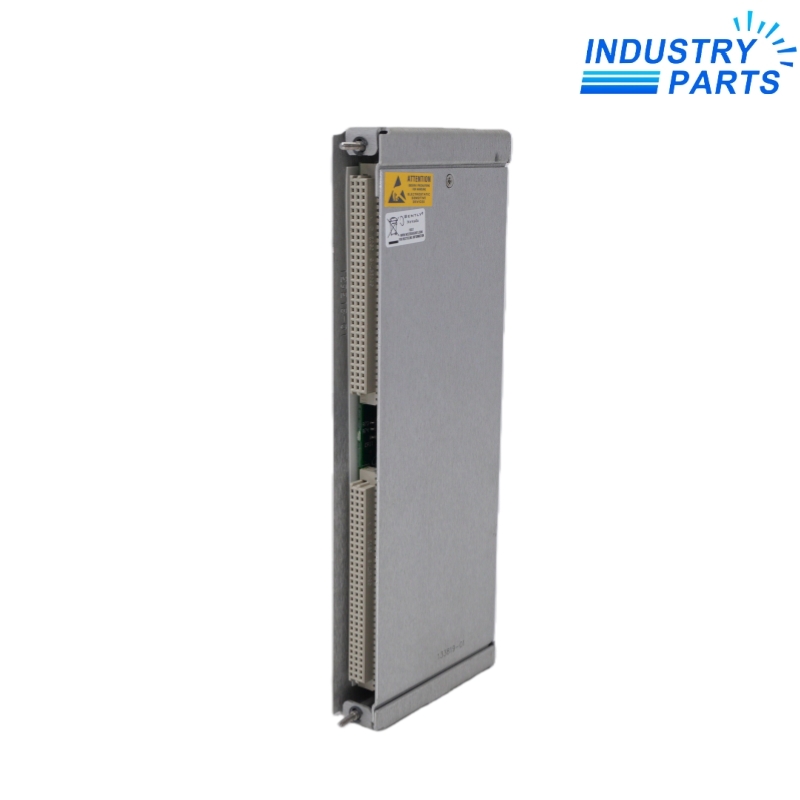

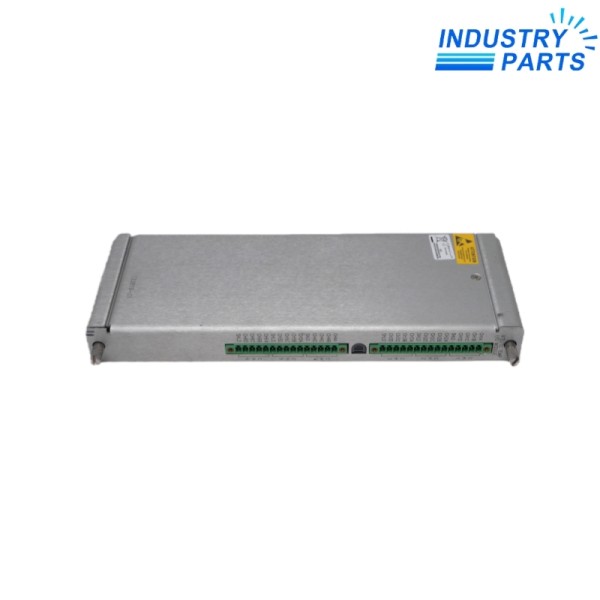

133819-01 is the Bently Nevada RTD/TC non-isolated I/O module with internal terminations for the 3500/60 six-channel temperature monitor.
The I/O module occupies one rear rack slot and provides the field-termination interface for the matching monitor. It must be kept distinct from external-termination and isolated-thermocouple versions.
Sensor type, lead configuration, channel setup and the complete I/O part number are required to preserve the installed temperature measurement chain.
Functions
Accepts configured RTD or thermocouple measurement circuits through the non-isolated execution.
Keeps field wiring in the rear rack position while the monitor occupies the corresponding front slot.
Separates 133819-01 from external-termination and isolated-thermocouple I/O alternatives.
Specifications
ManufacturerBently Nevada
Exact model133819-01
Host monitor3500/60 Temperature Monitor
I/O typeRTD/TC non-isolated
TerminationInternal terminations
Rack positionOne rear slot
Measurement-chain inputsRTD or thermocouple as configured by the host monitor
Isolation classNon-isolated execution
Selection boundarySensor type, lead wiring, termination style and host monitor
Installation
- Record the front 3500/60 monitor part number, rear I/O label and rack slot before removal.
- Identify each sensor type, lead arrangement, polarity and terminal assignment from approved drawings.
- Isolate field circuits and follow rack procedures before disturbing the rear I/O module.
- Verify channel readings, sensor fault diagnostics, alarm setpoints and relay action after exchange.
Lifecycle
- Keep 133819-01 paired with the corresponding front monitor and rack-slot record.
- Retain the sensor-type and terminal schedule for every channel.
- Inspect terminal condition and field wiring during planned rack maintenance.
- Do not convert termination or isolation architecture without an approved engineering change.
About IndustryParts
https://www.industryparts.com/Rear I/O identity and sensor wiring remain linked
IndustryParts handles 133819-01 with the matching 3500/60 monitor, rack slot and channel-by-channel sensor record.
- Internal termination confirmed
- Host monitor recorded
- Sensor wiring map requested
Related Models
FAQ
Can 133819-01 replace an isolated thermocouple I/O module?
No automatic interchange should be assumed. Isolation architecture, sensor wiring, approvals and monitor configuration must match.
What should accompany a 133819-01 enquiry?
Provide the rear I/O label, front monitor label, rack slot, sensor types, terminal drawing, configuration record, quantity and destination.
How is 133819-01 distinguished from an external-termination version?
133819-01 is the non-isolated RTD/TC I/O module with internal terminations; the termination architecture is part of the exact selection.
What wiring evidence matters most for 133819-01?
Record channel-by-channel RTD lead arrangement or thermocouple type and polarity, shield treatment and terminal numbers.
What proves 133819-01 is ready after service?
Confirm the exact I/O identity, correct rear-slot installation, stable temperature readings, clean diagnostics and passed alarm and relay tests.
