Bently Nevada 135813-01 Display Interface I/O Module
The dedicated rear I/O module that connects the 3500/93 display path to its rack-mounted Display Interface Module.
Technical Summary

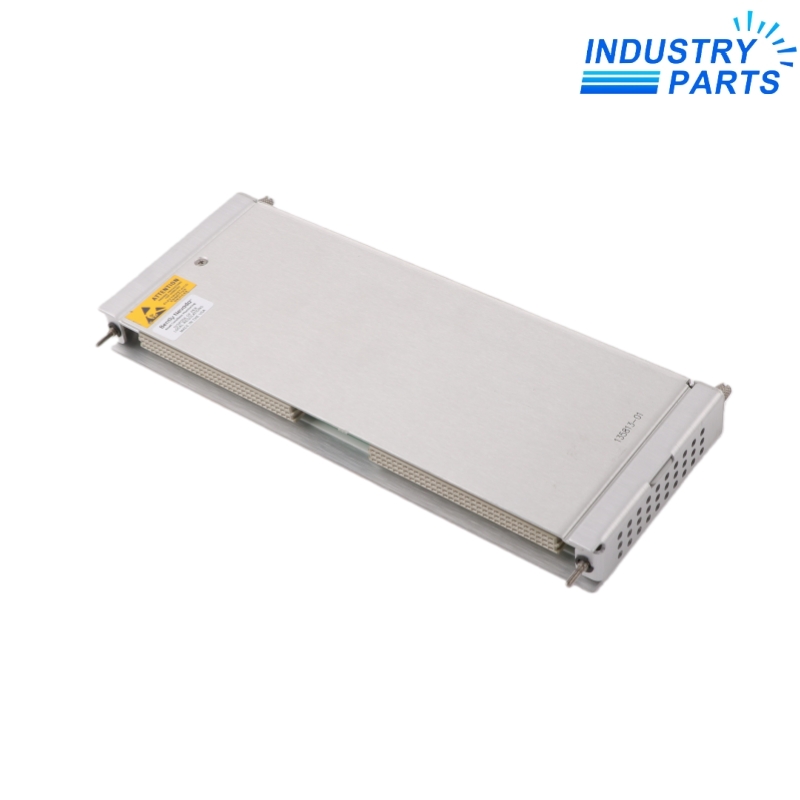

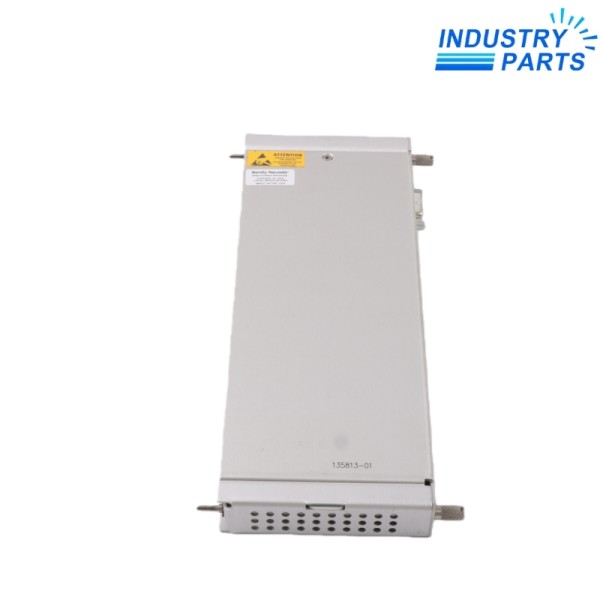

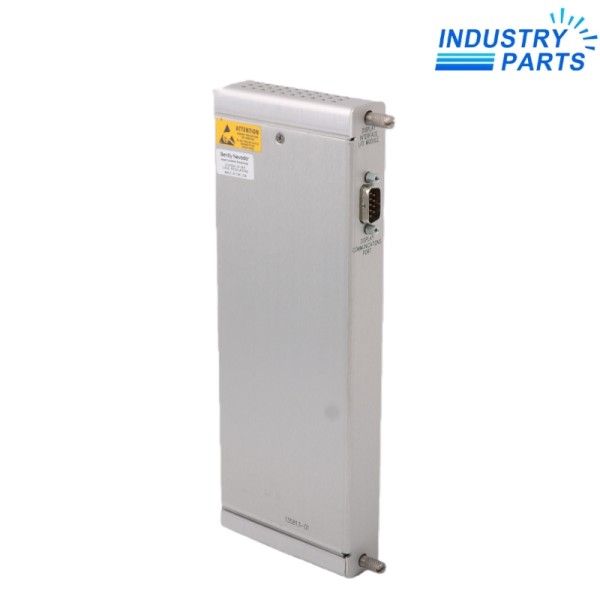

135813-01 is the Bently Nevada spare part identified in the 3500/93 System Display documentation as the Display Interface I/O Module. It occupies one full-height rear rack slot and works with the corresponding front Display Interface Module.
The module belongs to the display communication chain rather than to a machinery-measurement channel. Its service boundary includes the front DIM, display unit, selected mounting arrangement, display cable and any external power equipment used by the installed 3500/93 configuration.
For replacement control, retain the complete 135813-01 marking and record the paired front module, rack slot, cable path and display mounting option before the rack is disturbed.
Specifications
Bently Nevada
135813-01
3500/93 System Display
Display Interface I/O Module
One full-height rear slot
−30 to +65 °C
−40 to +85 °C
95%, noncondensing
RS422 interface
3500/93 Display Interface Module and Display Unit
Features
Rear-rack display connection
Provides the rear I/O connection used by the 3500/93 display communication path.
Dedicated paired architecture
Works with a front Display Interface Module rather than operating as a stand-alone display component.
Industrial environmental rating
The published rear-module limits cover −30 to +65 °C operation and 95% noncondensing humidity.
Exact spare-part traceability
The 135813-01 identifier separates this I/O module from the 135799-series front Display Interface Modules.
Compatibility
Front-module pairing
Confirm the installed 3500/93 Display Interface Module part number and whether the display is a standard or back-lighted execution.
Mounting and cable plan
Record face, EIA-rack, panel or independent mounting plus cable length and insulation type.
Power arrangement
Back-lighted displays and cable runs beyond 100 ft require the documented external power and adapter arrangement.
Rack allocation
Verify the front and rear slot plan; face-mounted configurations impose a specific DIM position.
Replacement
Document the complete display path
Capture 135813-01, the front DIM, display unit, rack position, cable and power-supply labels.
Exchange the matched rear module
Follow the approved 3500 rack service procedure and preserve connector orientation and cable routing.
Verify display communication
Confirm module status, rack-state indication, channel data, alarm lists and the configured display response.
