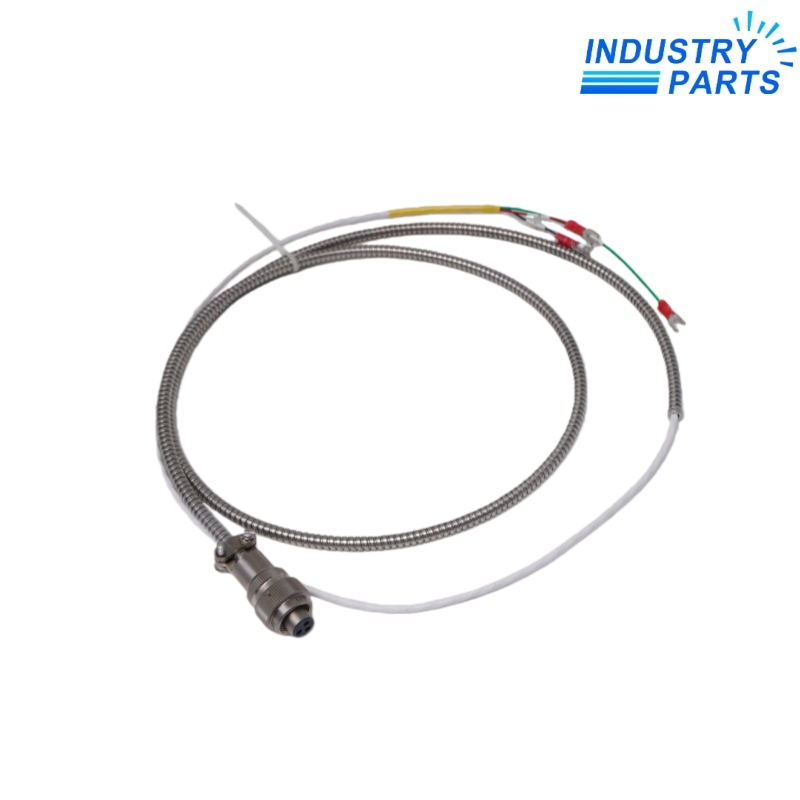

Bently Nevada 16710-06 Armored Three-Conductor Interconnect Cable
A 6-foot armored, shielded 22 AWG three-conductor cable with a three-socket plug and terminal lugs.
Key Information
16710-06 is an armored interconnect cable used with compatible Bently Nevada acceleration and seismic sensing hardware.
The 16710 cable construction uses three-conductor shielded 22 AWG conductors. One end carries a three-socket plug and the other end terminates in lugs.
The 06 length code identifies a 6-foot cable. The exact sensor, monitor and cable route should be confirmed before supply because the 16710 family appears in more than one approved sensing application.
Functions
Carry a conditioned sensor signal
The shielded conductors connect compatible sensing hardware to the receiving monitor or interface.
Protect the field route
Armor provides mechanical protection where the approved installation calls for an armored lead.
Support serviceable termination
The plug-to-lug construction separates the sensor connection from the terminal-side wiring.
Specifications
| Manufacturer | Bently Nevada | Exact model | 16710-06 |
|---|---|---|---|
| Product family | 16710 interconnect cable | Cable length | 6 ft (1.8 m) |
| Conductors | 3 | Conductor size | 22 AWG (0.5 mm²) |
| Shielding | Shielded cable | Mechanical protection | Armor |
| Sensor end | 3-socket plug | Field end | Terminal lugs |
About IndustryParts
https://www.industryparts.com/Cable quotations include both connected endpoints
IndustryParts links the exact cable length, connector arrangement, destination wiring and requested quantity before preparing supply details.
- •Exact submitted model retained
- •Installed-system evidence reviewed
- •Requested quantity linked to the enquiry
Installation
Identify both endpoints
Record the connected sensor and receiving instrument before removing the cable.
Trace the complete route
Measure routing, supports, armor condition and separation from heat or damage sources.
Confirm connector fit
Inspect the sensor receptacle and terminal-side lug arrangement before replacement.
Test continuity and signal
Verify conductors, shield, insulation and the connected channel response before return to service.
Lifecycle
- Endpoint custody
- Keep the sensor, cable and destination terminal identifiers on one wiring record.
- Route control
- Preserve supports and bend treatment so the armor does not load either termination.
- Acceptance record
- Close work with continuity, insulation and monitored-signal evidence.
FAQ
What endpoint information should accompany a 16710-06 enquiry?
Provide the connected sensor model, receiving instrument, connector photograph and terminal schedule.
Can a non-armored 16925 cable replace 16710-06?
Only after the mechanical-protection requirement and the approved field route have been reviewed.
Why should the complete 6-foot route be checked for 16710-06?
The replacement must reach both terminations without tension, excess unsupported cable or an unapproved bend.
What should be tested before energizing a new 16710-06?
Check conductor continuity, insulation, shield termination and correct terminal-lug placement.
What closes a 16710-06 cable replacement?
Matched endpoints, protected routing, good electrical tests and a stable channel signal complete the service record.
Request a model-specific quotation
Send the complete 16710-06 label, requested quantity, delivery destination and installed-system context.
