Bently Nevada 200350-02-00-01 Accelerometers

Bently Nevada 200350-02-00-01 Accelerometers

Item NO.: 200350-02-00-01
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada 200350-02-00-01 Accelerometers
  • Item NO.200350-02-00-01
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2025-03-16
  • Accelerometers
200350-02-00-01
Bently Nevada · 200350 · Accelerometer

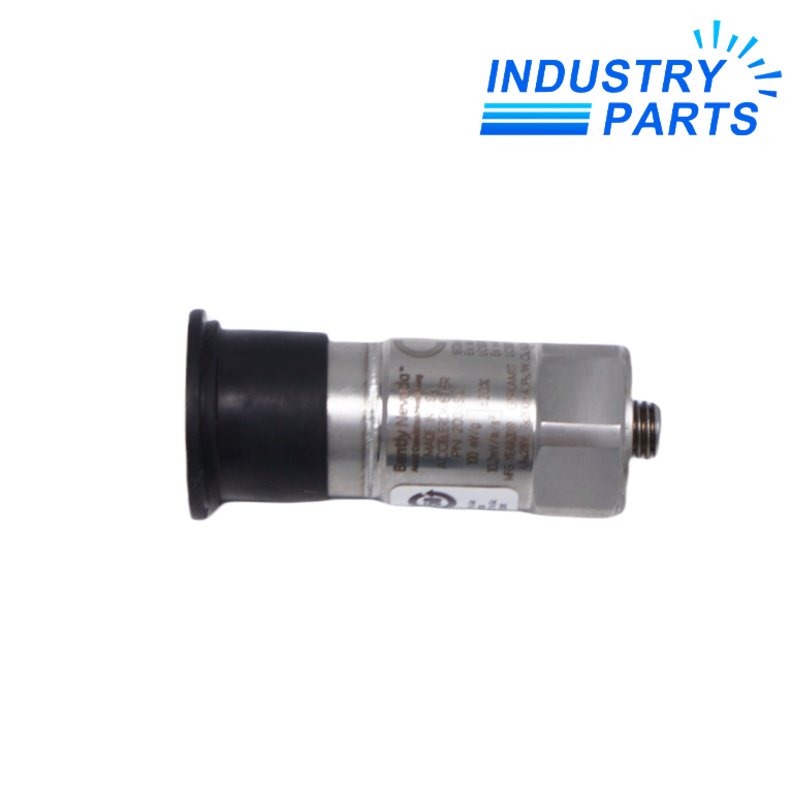

Bently Nevada 200350-02-00-01 Accelerometer

The Bently Nevada 200350-02-00-01 is a general-purpose case-mounted accelerometer configured with an M8 × 1.25 mounting stud, 100 mV/g ±20% sensitivity tolerance, and the CSA / ATEX / IECEx approval option.

Industrial Seismic Transducer

Product Profile

The Bently Nevada 200350-02-00-01 belongs to the 200350 accelerometer family. Baker Hughes describes the 200350 as a general-purpose, case-mounted seismic transducer intended for machinery casing and bearing-housing measurements.

The sensor contains a piezoelectric sensing element and internal electronics that convert vibration-induced charge into a voltage signal proportional to acceleration. The hermetically sealed stainless-steel case and top-mounted 2-pin MIL-C-5015 connector are designed for industrial service.

Baker Hughes Official Data

Technical Data

Manufacturer Bently Nevada, a Baker Hughes company
Part Number 200350-02-00-01
Product Family 200350 Accelerometer
Product Type Case-mounted piezoelectric accelerometer
Mounting Stud Option 02 1/4-28 to M8 × 1.25 stainless-steel mounting stud
Sensitivity Option 00 100 mV/g ±20% (10.2 mV/m/s² ±20%)
Approval Option 01 CSA, ATEX and IECEx
Measurement Range ±50 g
Frequency Range (±3 dB) 0.5 to 10,000 Hz
Mounted Resonant Frequency 25 kHz
Transverse Sensitivity ≤7%
Amplitude Linearity ±1%
Output Bias Voltage 8 to 12 VDC
Excitation Voltage 18 to 28 VDC
Constant Current Excitation 2 to 20 mA
Settling Time ≤2.0 s
Output Impedance <150 Ω
Operating Temperature -54°C to +121°C
Shock Survivability 5,000 g peak
Relative Humidity 100% relative, condensing, non-submerged
Case / Connector Hermetically sealed stainless-steel case; top-mounted 2-pin MIL-C-5015 connector
Measurement Function

System Role

Case-Mounted Vibration Sensing
Measures machine casing or bearing-housing acceleration along the sensitive axis of the transducer.
Piezoelectric Signal Conversion
The internal piezoelectric element generates charge from vibration and the electronics convert it to a voltage signal proportional to acceleration.
Constant-Current Operation
Designed for positive-excitation constant-current input; Baker Hughes specifically cautions not to use the 200350 with negative excitation voltage.
Harsh-Environment Construction
The hermetically sealed stainless-steel body and industrial connector support use in demanding machinery environments.
Monitor & Installation Matching

Compatibility

Use 200350-02-00-01 with a compatible positive-excitation constant-current vibration input. Baker Hughes identifies the 200350 / 200355 accelerometers for Trendmaster Pro constant-current direct input cards and for compatible 3500 seismic monitoring inputs. Mounting quality is important: poor installation can reduce amplitude and frequency response or generate signals that do not represent actual machine vibration.
Typical Machinery Use

Applications

Bearing Housing Vibration
General-purpose case vibration measurement on bearing housings and machine casings.
Trendmaster Pro Systems
Baker Hughes identifies the accelerometer for use with compatible Trendmaster Pro constant-current direct input cards.
3500 Machinery Monitoring
Baker Hughes also identifies compatibility with the 3500/42M monitor using the Prox/Seismic I/O Module and with the Seismic Direct Input Card.
Hazardous-Area Installations
This 01 approval option is the CSA / ATEX / IECEx configuration, subject to the applicable installation and entity-parameter requirements.
Buyer & Maintenance Questions

Frequently Asked Questions

1. What does the 02 code mean in 200350-02-00-01?
It specifies a 1/4-28 to M8 × 1.25 stainless-steel mounting stud.
2. What sensitivity is supplied with 200350-02-00-01?
The 00 tolerance option specifies 100 mV/g with ±20% sensitivity tolerance.
3. Does 200350-02-00-01 include hazardous-area approvals?
Yes. The final 01 code is the CSA, ATEX and IECEx approval option in the current Baker Hughes ordering table.
4. Can 200350-02-00-01 be powered with negative excitation voltage?
No. Baker Hughes specifically warns not to use the 200350 sensor with negative excitation voltage (-Vex).
5. What should be checked before ordering 200350-02-00-01?
Confirm the required mounting stud, constant-current input compatibility, cable / connector arrangement, monitor input type and the approvals required by the installation.
