Housing-only configuration
Allows the probe and cable to be selected from the documented measurement-chain requirement.
Bently Nevada 21000-00-00-00-087-03-02 Proximity ProbeHousing Assemblies
Item NO.: 3514681
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameBently Nevada 21000-00-00-00-087-03-02 Proximity ProbeHousing Assemblies
- Item NO.3514681
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryTSI
- BrandBently Nevada
- Creation Time2026-01-08
21000 Proximity Probe HousingExternal-Mount Aluminum Probe Housing
NO INSTALLED PROBE · 8.7 IN PENETRATION · CABLE-SEAL FITTING SET

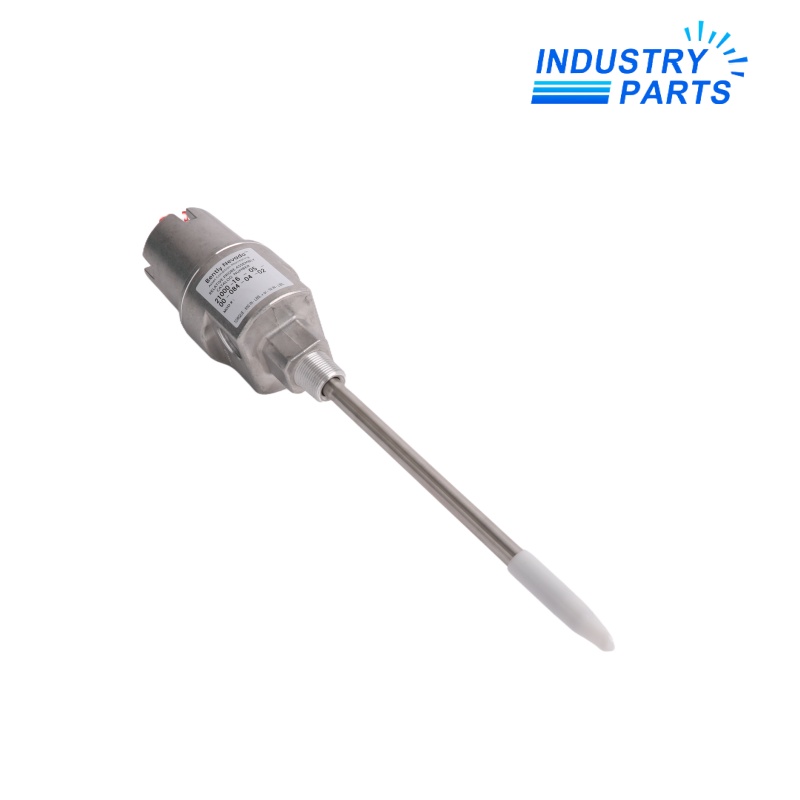

Bently Nevada 21000-00-00-00-087-03-02 Probe Housing Without Installed Probe
A 21000 aluminum housing ordered without a probe or probe cable, with an 8.7 in penetration and a multi-size cable-seal fitting set.
PRODUCT CONTEXT
Overview
21000-00-00-00-087-03-02 is a 21000 external-mount housing configuration supplied without an installed proximity probe or probe cable. The 087 field sets an 8.7 in penetration, while the 03 fitting option supplies a plug, reducer and cable-seal grip with multiple grommets.
Because the probe is not part of this assembly, the receiving project must separately establish the compatible probe, cable, Proximitor sensor and insertion setting. The aluminum body and 304 stainless-steel sleeve remain the mechanical basis of the housing.
CONTROLLED DATA
Specs
Manufacturer
Bently Nevada
Exact model
21000-00-00-00-087-03-02
Housing family
21000
Housing material
Aluminum body
Sleeve material
304 stainless steel
Installed probe
None
Probe cable
None
Standoff adapter
None
Penetration length
8.7 in (221.0 mm)
Fitting option
Plug, reducer and cable-seal grip set
Cable-seal grommets
Three ranges from 1/8 to 3/8 in
Mounting thread
3/4-14 NPT
FUNCTIONAL DISTINCTIONS
Features
Multi-size cable entry
The fitting set includes grommets covering three published cable-diameter ranges.
Defined mechanical reach
The 8.7 in penetration remains fixed by the complete order code.
External adjustment access
The dome-cover and sleeve design supports service from outside the machine case.
FIELD CONTEXT
Applications
Custom probe-chain installation
Preparing a housing where the sensor and cable are specified separately.
Legacy machinery retrofit
Retaining an installed 21000 mechanical envelope with a documented replacement chain.
Cable-sealed field entry
Using the supplied reducer and seal-grip arrangement for the selected cable diameter.
SERVICE SEQUENCE
Lifecycle
Select
Confirm the separate probe, cable, Proximitor, cable diameter, mounting thread and required insertion.
Assemble
Install the approved chain, choose the correct grommet and preserve the 8.7 in housing geometry.
Commission
Set the gap and verify the complete calibrated chain at the monitor channel.
CUSTOMER QUESTIONS
FAQ
Does 21000-00-00-00-087-03-02 include a proximity probe?
No. The first 00 field identifies a housing supplied without a probe, and the second 00 identifies no probe cable.
What must accompany a 21000-00-00-00-087-03-02 quotation?
Provide the full housing code plus the separately selected probe, cable, Proximitor, cable diameter and machine mounting details.
What is distinctive about fitting option 03 on 21000-00-00-00-087-03-02?
It includes a plug, reducer and a cable-seal grip with grommets for three published cable-size ranges.
Can a 21000 housing with option 04 replace 21000-00-00-00-087-03-02?
Not without review; option 04 supplies only a plug and does not establish the same cable-seal fitting set.
How is 21000-00-00-00-087-03-02 accepted after assembly?
Confirm probe-chain compatibility, cable sealing, insertion, static gap and the final monitor response.
