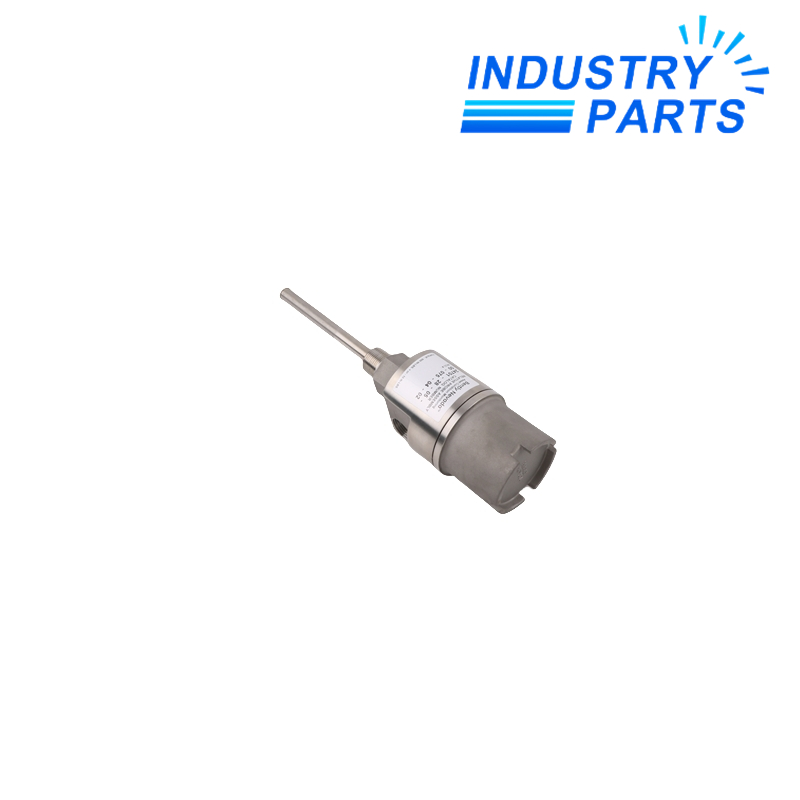

Stainless external housing
The 24701 body supports corrosion-resistant external probe mounting.

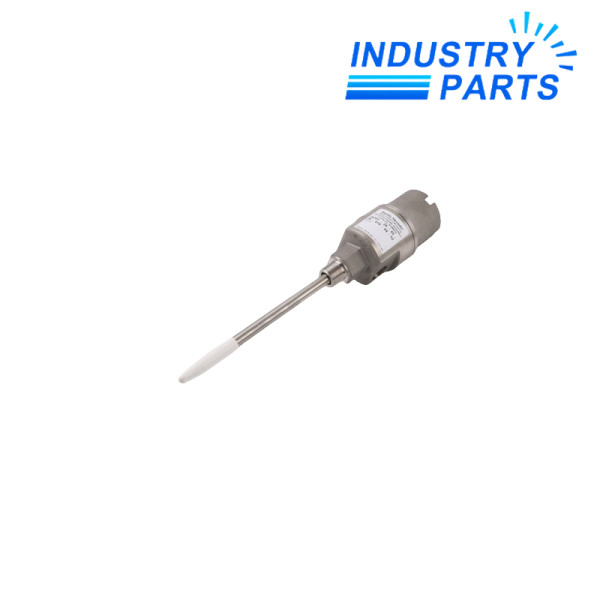

Bently Nevada 24701-28-05-20-040-03-02 Proximity Probe Housing Assemblies
Item NO.: 24701-28-05-20-040-03-02
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameBently Nevada 24701-28-05-20-040-03-02 Proximity Probe Housing Assemblies
- Item NO.24701-28-05-20-040-03-02
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryTSI
- BrandBently Nevada
- Creation Time2025-01-20
24701 Proximity Probe HousingExternal-Mount Stainless-Steel Housing Assembly
STAINLESS HOUSING · 2.0 IN STANDOFF · 4.0 IN PENETRATION
Bently Nevada 24701-28-05-20-040-03-02 Proximity Probe Housing Assemblies
A stainless external-mount housing with a 3300 XL 8 mm probe, 0.5 m cable and a sealed option 03 conduit-entry package.
PRODUCT CONTEXT
Overview
24701-28-05-20-040-03-02 combines the 24701 stainless housing with a 3300 XL 8 mm probe and 0.5 m cable. Its 20 and 040 fields establish a 2.0 in standoff and 4.0 in penetration.
The option 03 fitting package includes the documented plug, reducer and cable-seal grip set. The final 02 retains a 3/4-14 NPT mounting thread for the machine interface.
CONTROLLED DATA
Specs
Manufacturer
Bently Nevada
Exact model
24701-28-05-20-040-03-02
Housing family
24701
Housing body
303 stainless steel
Sleeve material
304 stainless steel
Probe selection
3300 XL 8 mm with approval option
Probe cable
0.5 m (19.7 in)
Standoff adapter
2.0 in
Penetration length
4.0 in (101.6 mm)
Fitting package
Plug, reducer and cable-seal grip set
Mounting thread
3/4-14 NPT
FUNCTIONAL DISTINCTIONS
Features
Two-inch standoff
The adapter preserves clearance between the housing and mounting point.
Four-inch controlled insertion
The penetration field establishes the installed probe reach.
Sealed conduit transition
The option 03 package supports the documented cable-entry arrangement.
FIELD CONTEXT
Applications
Turbine and compressor probe access
Providing an external stainless enclosure for a reverse-mount proximity probe.
Sealed cable routing
Using the supplied reducer and grip where the installation requires the option 03 entry set.
Dimensional spare control
Maintaining the exact standoff, insertion and mounting-thread combination.
SERVICE SEQUENCE
Lifecycle
Survey
Capture the 24701-28-05-20-040-03-02 label, cable diameter, chain labels and measured standoff and penetration.
Rebuild
Preserve the 2.0 in adapter, 4.0 in insertion and correct cable-seal component.
Prove
Verify mechanical security, static gap and monitor-channel behavior.
CUSTOMER QUESTIONS
FAQ
What distinguishes 24701-28-05-20-040-03-02 from other 24701 assemblies?
Its complete code combines probe option 28, a 0.5 m cable, 2.0 in standoff, 4.0 in penetration and the option 03 fitting set.
Which cable detail should accompany a 24701-28-05-20-040-03-02 enquiry?
Supply the installed cable diameter and photographs so the correct seal-grip arrangement can be confirmed.
Can a plug-only fitting execution replace 24701-28-05-20-040-03-02?
Not automatically; a plug-only option does not reproduce the reducer and cable-seal grip supplied by option 03.
What companion identities matter for 24701-28-05-20-040-03-02?
Record the extension cable, Proximitor sensor and receiving monitor channel together with the housing label.
How is 24701-28-05-20-040-03-02 accepted after service?
Confirm the complete mechanical geometry and cable sealing, then prove stable gap voltage and monitor response.
