Bently Nevada 24701-34-05-30-028-04-02 24701-34-05-30-036-04-02 Proximity Probe Housing Assemblies

Bently Nevada 24701-34-05-30-028-04-02 24701-34-05-30-036-04-02 Proximity Probe Housing Assemblies

Item NO.: 3542187
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada 24701-34-05-30-028-04-02 24701-34-05-30-036-04-02 Proximity Probe Housing Assemblies
  • Item NO.3542187
  • Weight1.8000 kg = 3.9683 lb = 63.4931 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2026-02-26
24701 Proximity Probe HousingExternal-Mount Stainless-Steel Housing Assembly
CONNECTOR-PROTECTED 8 MM PROBE · 0.5 M CABLE · 3.0 IN STANDOFF

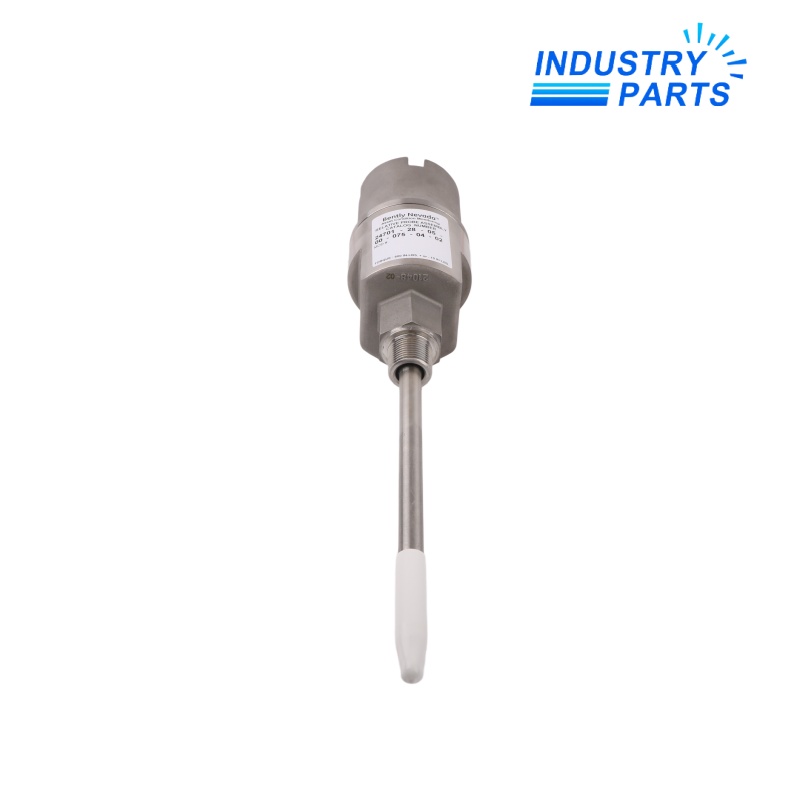

Bently Nevada 24701-34-05-30-028-04-02 Stainless Probe Housing Assembly

A stainless-steel 24701 housing with a connector-protected 3300 XL 8 mm probe, 0.5 m cable, 3.0 in standoff and 2.8 in penetration.

01
PRODUCT CONTEXT

Overview

24701-34-05-30-028-04-02 is a 24701-series external-mount stainless-steel housing. Field 34 selects a 3300 XL 8 mm probe with connector protector and selectable approvals; field 05 selects a 0.5 m cable.

The remaining fields define a 3.0 in standoff, 2.8 in penetration, one 3/4-14 NPT plug and a 3/4-14 NPT mounting thread. This exact combination controls the installation envelope and connector protection.

02
CONTROLLED DATA

Specs

Manufacturer

Bently Nevada

Exact model

24701-34-05-30-028-04-02

Housing family

24701

Housing material

303 stainless steel

Sleeve material

304 stainless steel

Probe selection

3300 XL 8 mm with connector protector and approval option

Probe cable

0.5 m (19.7 in)

Standoff adapter

3.0 in

Penetration length

2.8 in (71.1 mm)

Conduit fittings

One 3/4-14 NPT plug

Mounting thread

3/4-14 NPT

03
FUNCTIONAL DISTINCTIONS

Features

01

Stainless housing construction

Uses a 303 stainless body for the 24701 mechanical family.

02

Protected probe connector

The selected probe execution includes a connector protector.

03

Defined standoff geometry

The 3.0 in adapter separates the housing from the machine mounting point.

04

Short controlled penetration

The 2.8 in code establishes the probe reach for this assembly.

04
FIELD CONTEXT

Applications

External turbine probe mounting

Providing a stainless external housing with controlled standoff and penetration.

Protected connector installations

Shielding the selected 8 mm probe connector within the documented assembly.

Exact mechanical replacement

Maintaining the installed thread, adapter and insertion dimensions.

05
SERVICE SEQUENCE

Lifecycle

01

Measure

Record standoff, penetration, thread, connector protector and the complete probe-chain labels.

02

Fit

Reproduce the 3.0 in adapter and 2.8 in penetration using the approved sealing and adjustment method.

03

Validate

Set the static gap and prove the full chain at the receiving monitor.

06
CUSTOMER QUESTIONS

FAQ

Q01

Which details should accompany a 24701-34-05-30-028-04-02 enquiry?

Provide the full six-field label, probe-chain labels, standoff and penetration measurements, photographs and quantity.

Q02

Why does field 34 matter on 24701-34-05-30-028-04-02?

It selects the 3300 XL 8 mm probe execution with connector protection and an approval option.

Q03

Can a 24701 housing with no standoff replace 24701-34-05-30-028-04-02?

No direct substitution should be assumed because the 3.0 in standoff is part of the installed geometry.

Q04

What fitting is included with 24701-34-05-30-028-04-02?

The 04 field selects one 3/4-14 NPT plug; it does not define the option 03 cable-seal set.

Q05

What proves 24701-34-05-30-028-04-02 is correctly installed?

Matching geometry, secure connector protection, stable gap voltage and a verified monitor response complete acceptance.
