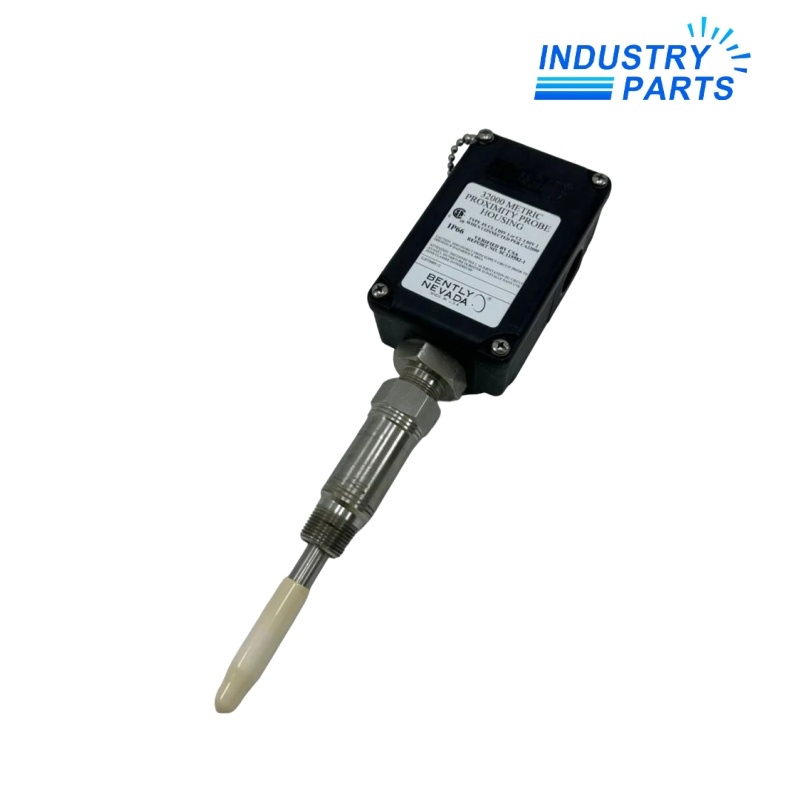

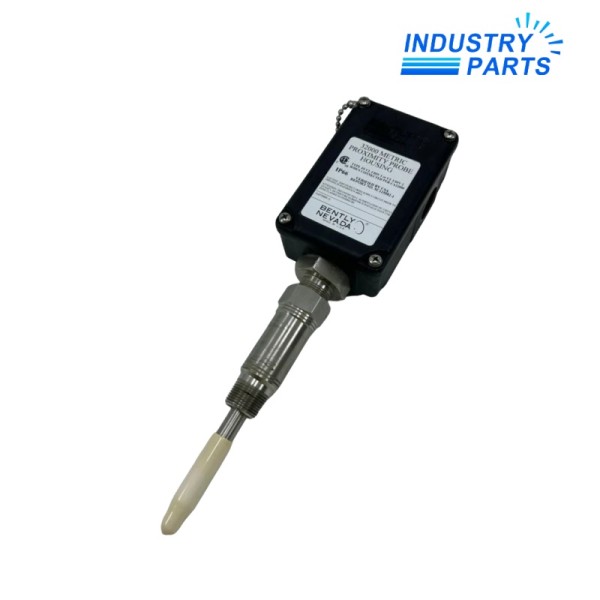

Bently Nevada 32000-28-05-08-080-03-02 Metric Proximity Probe Housing Assemblies
A metric housing configuration for a multiple-approval 3300 XL 8 mm probe and externally accessible adjustment.
Technical Summary
32000-28-05-08-080-03-02 is a metric-dimension proximity probe housing assembly for mounting a 3300 XL 8 mm probe through a machine case. External access supports gap adjustment and probe replacement during maintenance.
The complete code fixes the mechanical reach and installation accessories. A close part number with another standoff or penetration field can place the probe tip in the wrong position.
Specifications
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 32000-28-05-08-080-03-02 |
| Product Family | 32000 Proximity Probe Housing Assemblies |
| Dimension Standard | Metric |
| Probe Selection | 3300 XL 8 mm probe, multiple approvals |
| Probe Cable Length | 0.5 m |
| Standoff Length | 80 mm |
| Case Penetration | 80 mm |
| Fitting Option | Two plugs, M20 fitting and cable seal grip for armored cable |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | PPS housing with stainless-steel hardware |
| Design Reference | API 670-compliant housing arrangement |
Features
- Supports externally accessible probe adjustment at the machine case.
- Combines the metric housing dimensions with the specified mounting interface.
- Provides a protected conduit entry for the approved probe configuration.
- Keeps standoff and penetration values explicit in the traceable order number.
Compatibility
- Verify the approval requirement and armored-cable arrangement at the site.
- Confirm both the external standoff and internal penetration against the mounting drawing.
- Check that the machine interface and conduit entry match the mixed metric/NPT configuration.
Replacement
- Capture the installed probe gap and housing position before removal.
- Compare every code field with the existing nameplate and drawing.
- Re-establish the probe gap, seal the conduit entry and test the complete transducer channel.
FAQ
Why must the two 80 mm fields in 32000-28-05-08-080-03-02 be checked separately?
One defines the external standoff and the other defines case penetration; both affect probe-tip location and service clearance.
Does 32000-28-05-08-080-03-02 use only metric threads?
No. The housing is metric-dimensioned, while the selected mounting thread is 3/4-14 NPT.
What approval evidence should accompany 32000-28-05-08-080-03-02?
Provide the probe label, site classification, cable construction and certification requirements for the complete installed loop.
Can 32000-28-05-08-080-03-02 replace a housing with no standoff?
Not as a direct exchange; the 80 mm standoff changes the external geometry and insertion reference.
Which drawing details are needed for 32000-28-05-08-080-03-02?
Show the machine-case thread, datum surface, required probe-tip position, conduit direction and available access space.
What final checks follow installation of 32000-28-05-08-080-03-02?
Verify mechanical engagement, gap voltage, dynamic response, sealing, cable restraint and monitor-channel alarms.
