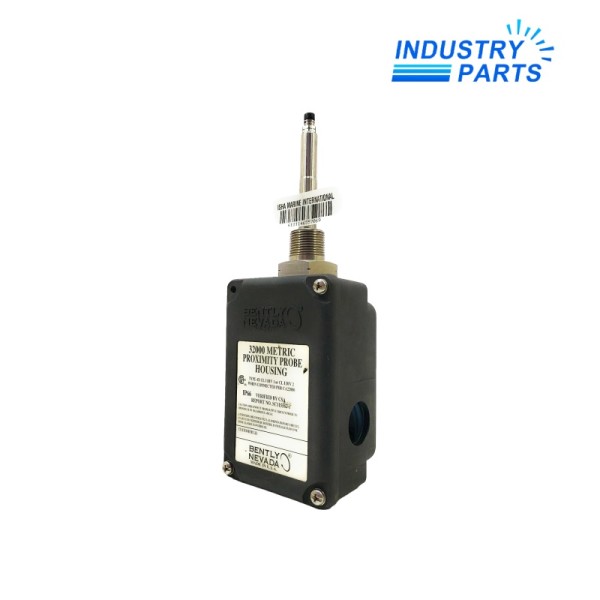

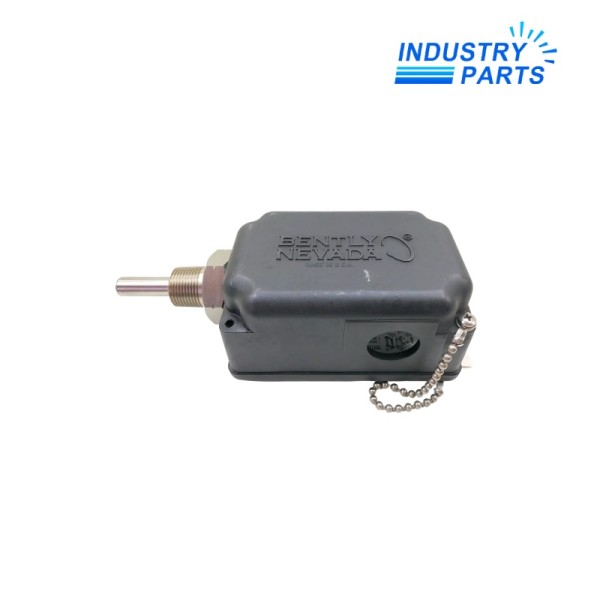

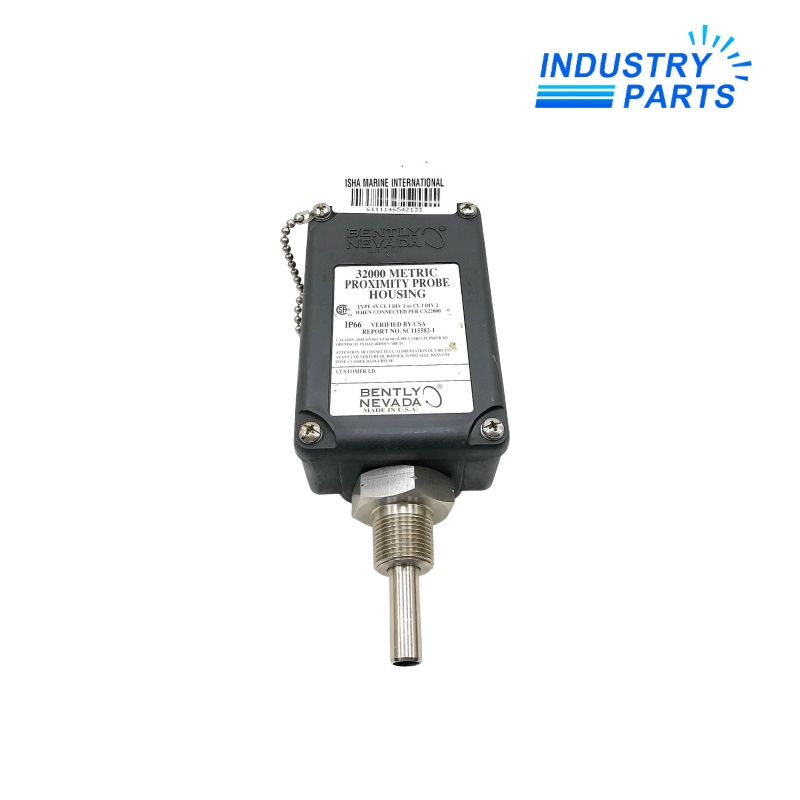

Bently Nevada 32000-28-05-15-080-03-02 Metric Proximity Probe Housing Assembly
A metric, multiple-approval probe housing with extended external standoff for a 3300 XL 8 mm installation.
Product Identification
32000-28-05-15-080-03-02 is a metric proximity probe housing assembly configured with a long external standoff and a separately defined case penetration. It provides protected, serviceable access to the probe through the machine case.
The model is close to other 32000 variants, but its standoff field changes access geometry. The complete string must therefore remain visible in drawings, enquiries and spare records.
Engineering Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 32000-28-05-15-080-03-02 |
| Product Family | 32000 Proximity Probe Housing Assemblies |
| Dimension Standard | Metric |
| Probe Selection | 3300 XL 8 mm probe, multiple approvals |
| Probe Cable Length | 0.5 m |
| Standoff Length | 150 mm |
| Case Penetration | 80 mm |
| Fitting Option | Two plugs, M20 fitting and cable seal grip for armored cable |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | PPS housing with stainless-steel hardware |
| Design Reference | API 670-compliant housing arrangement |
Functions
- Positions the service enclosure away from the machine case with an extended standoff.
- Allows external gap adjustment and probe exchange.
- Protects the probe cable transition and conduit entry.
- Preserves dimensional choices in a single ordering identity.
Applications
- Probe points behind insulation or guards
- Metric rotating-equipment installations
- Certified vibration or phase-reference channels
Lifecycle
- Keep the machine drawing and approval evidence with the housing record.
- Inspect the long standoff for support, thread condition and mechanical disturbance.
- Record probe-gap results after every intervention.
FAQ
What distinguishes 32000-28-05-15-080-03-02 from the 08-standoff variant?
The 15 code provides a 150 mm standoff, changing the external enclosure position while the 80 mm penetration remains separate.
Why is clearance review important for 32000-28-05-15-080-03-02?
The extended standoff can interact with guards, insulation, walkways, conduit bends or maintenance access.
Can 32000-28-05-15-080-03-02 be ordered from an old housing photograph?
A photograph helps, but the mounting drawing, complete label and measured datums are needed to control mechanical fit.
Does 32000-28-05-15-080-03-02 preserve external probe access?
Yes. The housing family is designed for external adjustment and probe replacement.
What certification information is needed for 32000-28-05-15-080-03-02?
Provide site classification, probe approvals, cable construction and the project requirements for the complete transducer loop.
What commissioning record should be retained for 32000-28-05-15-080-03-02?
Keep the final insertion position, static gap voltage, dynamic test result and monitor-channel alarm check.
