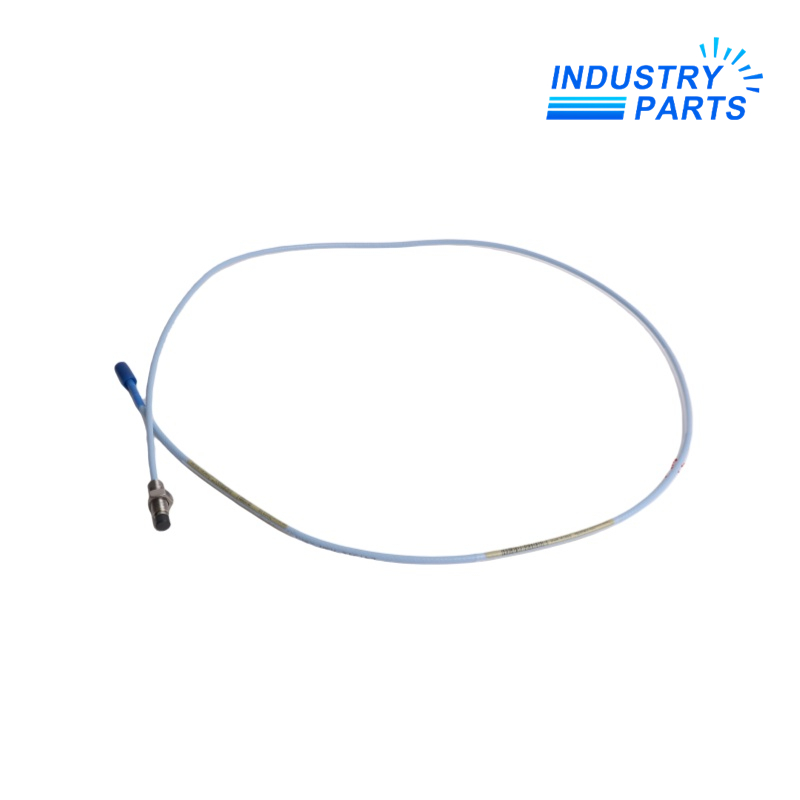

330101-00-08-10-02-00 is a Bently Nevada 3300 XL 8 mm standard proximity probe with 3/8-24 UNF thread, no armor, 0.0 inch unthreaded length and 0.8 inch overall case length.

The 10 option selects 1.0 m total electrical length. The probe uses a miniature coaxial ClickLoc connector with standard cable, and the final 00 indicates that an agency approval option is not required.

• Supports a 2 mm linear range as part of the matched 3300 XL 8 mm transducer system.
• Provides 7.87 V/mm incremental scale factor with ±5% interchangeability tolerance for the standard 1 m system.
• Maintains deviation from best-fit straight line below ±0.025 mm from 0 to 45 °C.
• Supports a 0 to 10 kHz frequency response at +0/-3 dB.
• Uses an approximate -9 Vdc recommended center-gap setting for radial vibration measurements.

• Use the 1.0 m probe with the matching 3300 XL system-length arrangement.
• Ensure the probe and extension-cable lengths add up to the Proximitor Sensor total length.
• Set gap and channel scaling for the connected monitor after installation.
• Protect the unarmored probe cable from abrasion, crushing and excessive connector load.
• Do not treat approval option 00 as authorization for hazardous-area use.

• Radial shaft-vibration monitoring.
• Axial shaft-position measurement.
• Eccentricity measurement on rotating machinery.
• Speed and Keyphasor phase-reference sensing.
• Machine-protection loops using a correctly matched 3300 XL 8 mm Proximitor system.
