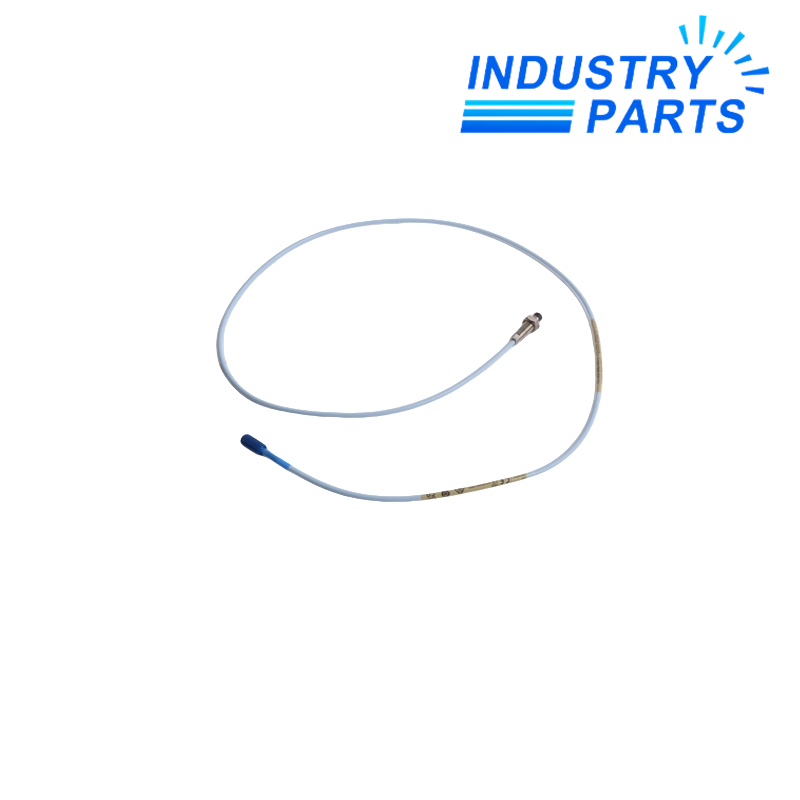

330101-00-12-10-02-00 is a Bently Nevada 3300 XL 8 mm proximity probe with a 3/8-24 UNF threaded case and no cable armor. Its configuration has 0.0 inch unthreaded length, 1.2 inch overall case length and 1.0 m total electrical length.

The probe uses a miniature coaxial ClickLoc connector with standard cable and approval option 00, meaning agency approval is not required. It forms one part of a complete 3300 XL 8 mm probe, extension cable and Proximitor Sensor loop.

• Measures static position and dynamic vibration as part of a correctly matched 3300 XL 8 mm transducer system.
• Supports radial vibration, axial position, eccentricity, speed and Keyphasor reference applications.
• Provides a 2 mm system linear range and 7.87 V/mm incremental scale factor for the standard 1 m system.
• Uses a miniature ClickLoc coaxial connector and 75 Ω triaxial FEP-insulated probe cable.
• Supports documented component interchangeability when the 3300 XL family and electrical length remain correct.

• Match 330101-00-12-10-02-00 with a compatible 3300 XL extension cable and Proximitor Sensor.
• The probe lead plus extension-cable length must equal the Proximitor Sensor system length.
• Preserve the 1.2 inch overall case length and 3/8-24 UNF thread when replacing the installed probe.
• Maintain target size, shaft diameter, probe gap and tip-separation requirements during installation.
• Do not treat the 00 suffix as authorization for hazardous-area installation.

• Keep the complete 330101-00-12-10-02-00 option string in maintenance records so the case length and approval suffix remain unambiguous.
• Record probe, extension-cable and Proximitor Sensor length codes before disconnecting the loop.
• Protect the unarmored probe cable from abrasion, excessive bending and connector loading.
• Inspect the ClickLoc connection and cable route during planned machinery outages.
• Re-establish probe gap and verify the monitoring channel after replacement.
