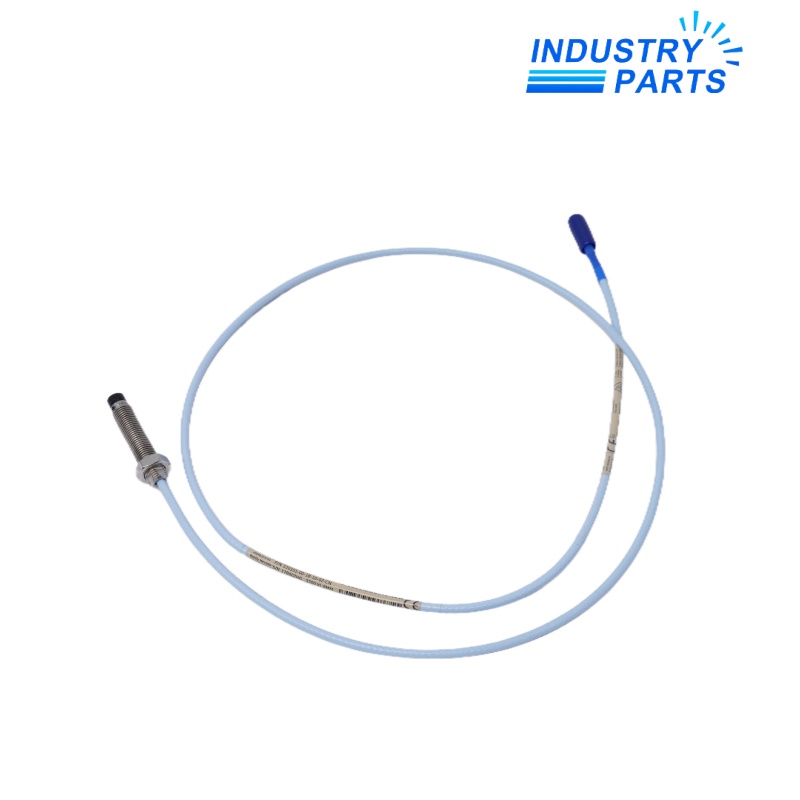

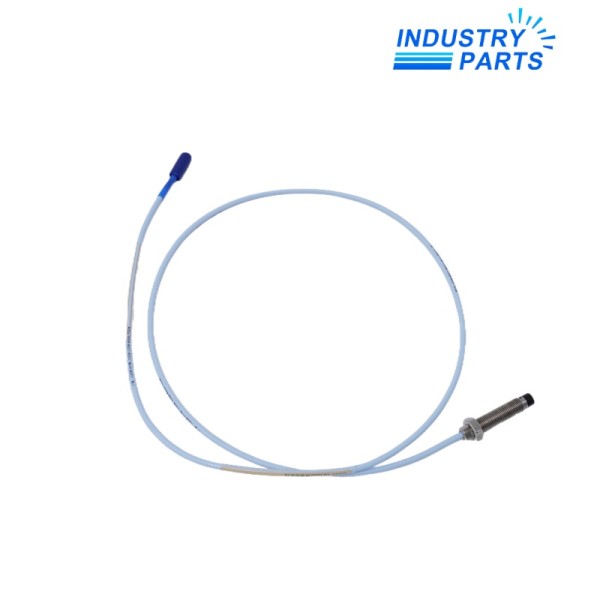

Bently Nevada 330101-00-16-10-02-05 3300 XL 8 mm Proximity Probe
A 3/8-24 UNF proximity probe with 1.6-inch case, one-meter electrical length and ClickLoc connector.
Product Identification
330101-00-16-10-02-05 is a Bently Nevada 3300 XL 8 mm proximity probe with a 3/8-24 UNF threaded case and no cable armor. Its configuration has 0.0 inch unthreaded length, 1.6 inch overall case length and 1.0 m total electrical length.
The probe uses a miniature coaxial ClickLoc connector with standard cable and CSA, ATEX and IECEx approval option 05. It forms one part of a complete 3300 XL 8 mm probe, extension cable and Proximitor Sensor loop.
Engineering Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Part Number | 330101-00-16-10-02-05 |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Thread | 3/8-24 UNF |
| Cable Armor | None |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.6 in |
| Total Electrical Length | 1.0 m (3.3 ft) |
| Connector | Miniature coaxial ClickLoc |
| Cable Type | Standard 75 Ω triaxial FEP-insulated cable |
| Agency Approval Option | CSA, ATEX and IECEx approvals |
| System Linear Range | 2 mm (80 mil) |
| Recommended Radial Gap | Approximately 1.27 mm (50 mil), -9 Vdc |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil), ±5% |
| Probe DC Resistance | 7.59 ± 0.50 Ω |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Minimum Flat Target | 15.2 mm (0.6 in) diameter |
| Probe Temperature Range | -52 to +177 °C |
Functions
- Measures static position and dynamic vibration as part of a correctly matched 3300 XL 8 mm transducer system.
- Supports radial vibration, axial position, eccentricity, speed and Keyphasor reference applications.
- Provides a 2 mm system linear range and 7.87 V/mm incremental scale factor for the standard 1 m system.
- Uses a miniature ClickLoc coaxial connector and 75 Ω triaxial FEP-insulated probe cable.
- Supports documented component interchangeability when the 3300 XL family and electrical length remain correct.
Applications
- Radial shaft-vibration monitoring on fluid-film bearing machinery.
- Axial shaft-position and thrust-position measurement.
- Eccentricity and shaft-centerline measurement.
- Speed and Keyphasor phase-reference sensing.
- Hazardous-area installations covered by option 05 and the applicable installation conditions.
Lifecycle
- Keep the complete 330101-00-16-10-02-05 option string in maintenance records so the case length and approval suffix remain unambiguous.
- Record probe, extension-cable and Proximitor Sensor length codes before disconnecting the loop.
- Protect the unarmored probe cable from abrasion, excessive bending and connector loading.
- Inspect the ClickLoc connection and cable route during planned machinery outages.
- Re-establish probe gap and verify the monitoring channel after replacement.
FAQ
What case geometry is encoded by 330101-00-16-10-02-05?
330101-00-16-10-02-05 has 0.0 inch unthreaded length and 1.6 inch overall case length.
What electrical length belongs to 330101-00-16-10-02-05?
330101-00-16-10-02-05 has a 1.0 m total electrical length.
Does 330101-00-16-10-02-05 include cable armor?
No. The 330101 base number used by 330101-00-16-10-02-05 identifies the 3/8-24 UNF version without armor.
Which connector is fitted to 330101-00-16-10-02-05?
330101-00-16-10-02-05 uses a miniature coaxial ClickLoc connector with standard cable and no connector protector.
Which approval option applies to 330101-00-16-10-02-05?
330101-00-16-10-02-05 uses option 05 for CSA, ATEX and IECEx approvals.
How should 330101-00-16-10-02-05 be matched to the monitoring loop?
Select the extension cable and Proximitor Sensor so the combined electrical length matches the 3300 XL system length required for 330101-00-16-10-02-05.
