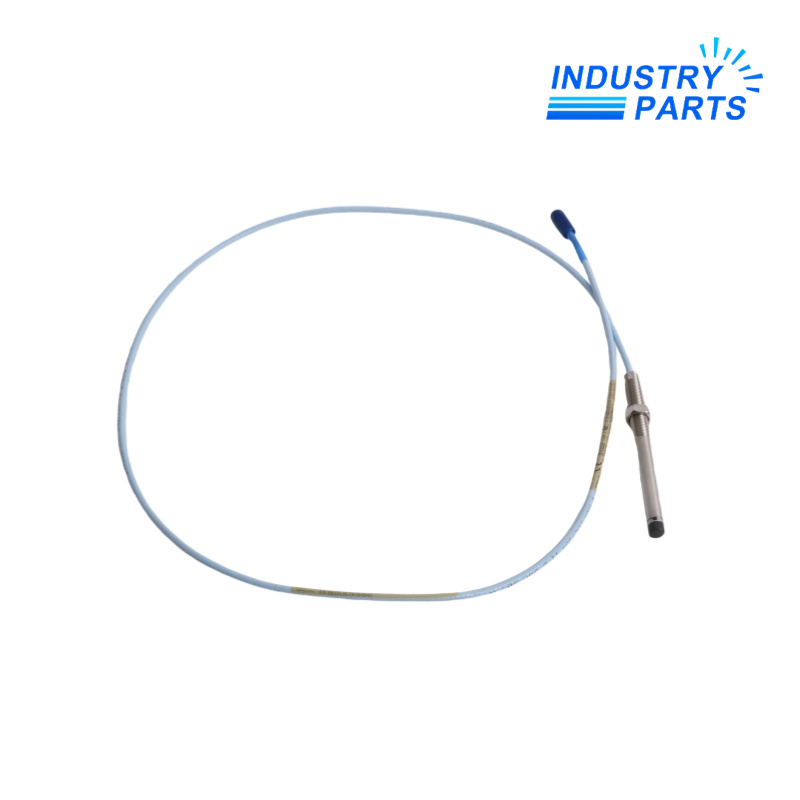

Bently Nevada 330101-00-20-05-02-05 8 mm Proximity Probe
A 3/8-24 UNF unarmored 3300 XL 8 mm probe with a 2.0 in case, 0.5 m cable and multiple approvals.
Technical Summary
330101-00-20-05-02-05 is a 3300 XL 8 mm proximity probe with a 3/8-24 UNF thread and no armor. The ordering fields select 0.0 in unthreaded length, a 2.0 in overall case, and a 0.5 m total length.
Code 02 selects the miniature coaxial ClickLoc connector with standard cable; code 05 selects the multiple-approval option. The probe must be matched to the corresponding Proximitor system length.
Specifications
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330101-00-20-05-02-05 |
| Product Family | 3300 XL 8 mm |
| Probe Thread | 3/8-24 UNF |
| Armor | Without armor |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 2.0 in |
| Total Probe Length | 0.5 m (1.6 ft) |
| Connector / Cable | Miniature coaxial ClickLoc, standard cable |
| Approval Option | Multiple approvals |
Features
- Provides non-contact shaft vibration and position measurement in a 3300 XL 8 mm loop.
- Uses the imperial 3/8-24 UNF unarmored probe construction.
- Uses a short 0.5 m total length for a matching Proximitor system.
- Retains the multiple-approval selection encoded by the final 05 field.
Compatibility
- Match the 0.5 m probe to the correct 3300 XL Proximitor system length.
- Verify the 3/8-24 UNF thread, 2.0 in case and rear clearance.
- Confirm standard cable, ClickLoc connector and approval-loop requirements.
- Do not substitute a metric or armored probe without an engineering check.
Replacement
- Record gap voltage, insertion depth, cable identity and channel scaling.
- Protect the probe tip and ClickLoc connector during installation.
- Re-gap the probe and confirm response, polarity and alarm behavior.
FAQ
330101-00-20-05-02-05: What thread does this model use?
It uses a 3/8-24 UNF thread without armor.
330101-00-20-05-02-05: What does the 20 field specify?
It selects a 2.0 in overall case length.
330101-00-20-05-02-05: Why must the 0.5 m length be matched?
Probe and extension lengths are calibrated as a complete 3300 XL system.
330101-00-20-05-02-05: Does code 02 include a protector?
It selects a ClickLoc connector with standard cable; code 01 adds a protector.
330101-00-20-05-02-05: What does final 05 mean?
It selects the multiple-approval option for the complete installed loop.
330101-00-20-05-02-05: What information should accompany an enquiry?
Provide gap, extension cable, Proximitor, monitor channel, thread and area classification.
