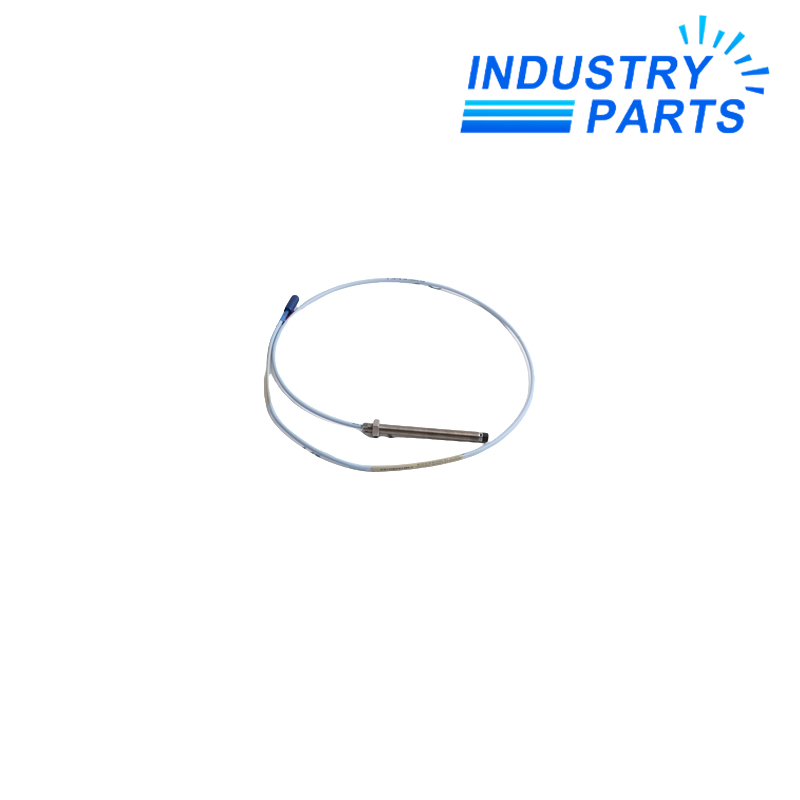

330101-00-40-10-02-05 is a Bently Nevada 3300 XL 8 mm proximity probe with a 3/8-24 UNF threaded case and no cable armor. Its option code specifies 0.0 in unthreaded length, a 4.0 in case and 1.0 m (3.3 ft) total electrical length.

The probe uses a miniature coaxial ClickLoc connector with standard cable and no connector protector. The final suffix specifies CSA, ATEX and IECEx approvals.

• Provides non-contacting static position and dynamic vibration signals in a matched 3300 XL 8 mm transducer system.
• Combines a 4.0 in case with 1.0 m (3.3 ft) total electrical length for the encoded installation geometry.
• Uses a 3/8-24 UNF standard-mount case with an unarmored lead.
• Connects through the miniature coaxial ClickLoc interface using standard cable.
• Supports documented component interchangeability when the correct system family and electrical length are maintained.

• Match 330101-00-40-10-02-05 with a compatible 3300 XL extension cable and Proximitor Sensor.
• The probe lead plus extension-cable length must equal the Proximitor Sensor system length.
• Preserve the 4.0 in case reach and 3/8-24 UNF mounting thread.
• Maintain target size, shaft diameter, probe gap and tip-separation requirements during installation.
• Apply the hazardous-area conditions associated with approval option 05.

• Radial shaft-vibration monitoring on fluid-film bearing machinery.
• Axial shaft-position and thrust-position measurement.
• Eccentricity and shaft-centerline measurement.
• Speed and Keyphasor phase-reference sensing.
• Hazardous-area loops covered by option 05 and the applicable installation conditions.
