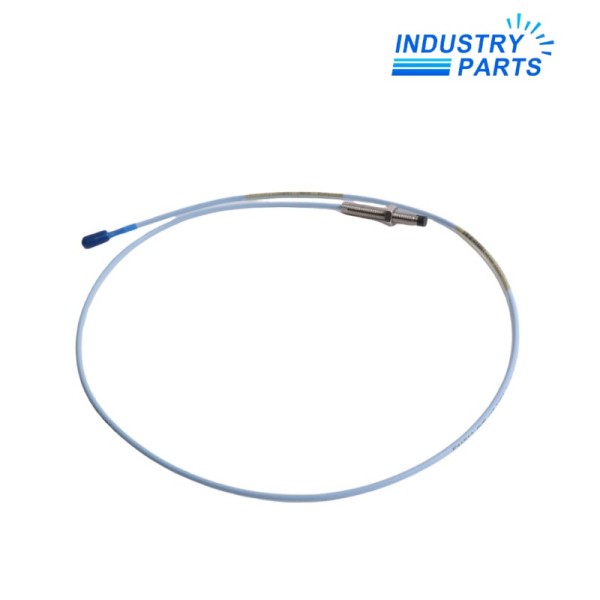

Bently Nevada 330101-00-46-10-02-05 330101-00-52-10-02-05 3300 XL 8 mm Proximity Probes
A precise comparison of two 3300 XL 8 mm probe executions, centered on the requested 5.2-inch configuration.
Product Profile

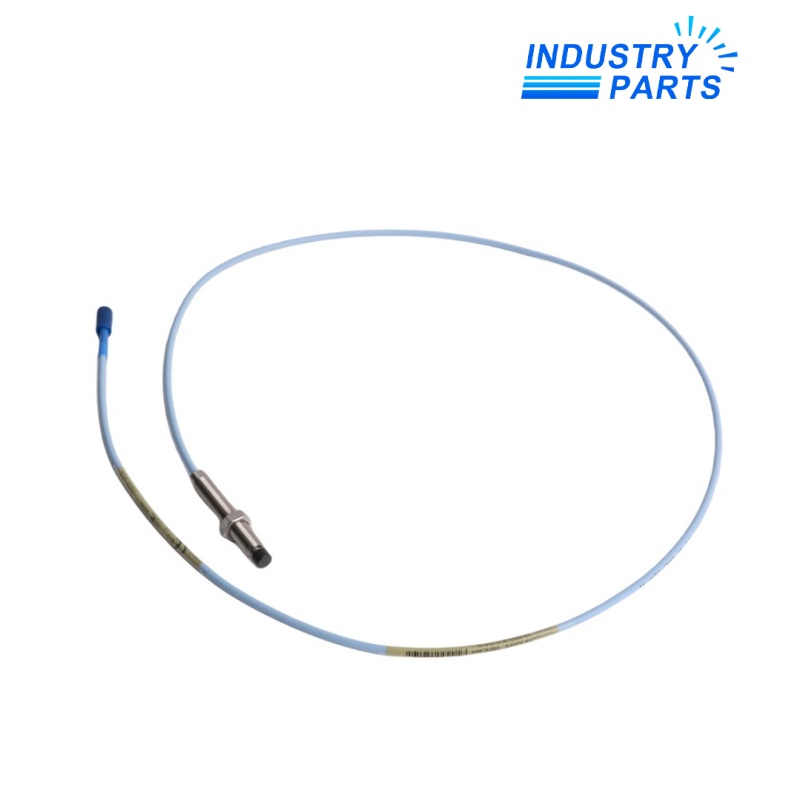

330101-00-52-10-02-05 is a 3300 XL 8 mm probe with 3/8-24 UNF thread, no unthreaded section, a 5.2-inch overall case, 1.0 m standard cable, ClickLoc connector without protector and multiple approvals.
The companion 330101-00-46-10-02-05 code has the same listed electrical and connector selections but a 4.6-inch case. The two are therefore not mechanically identical even though they belong to the same calibrated family.
Technical Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Requested Model | 330101-00-52-10-02-05 |
| Companion Model | 330101-00-46-10-02-05 |
| Series | 3300 XL 8 mm proximity transducer system |
| Probe Thread | 3/8-24 UNF |
| Armor / Unthreaded Length | Without armor; 0 in unthreaded |
| Requested Overall Case Length | 5.2 in |
| Companion Overall Case Length | 4.6 in |
| Total Probe Length | 1.0 m |
| Connector / Cable Option | ClickLoc without protector; standard cable |
| Approval Option | 05, multiple approvals |
| Nominal Scale Factor | 7.87 V/mm (200 mV/mil) for the complete system |
| Linear Range | 2.0 mm (80 mil) for the complete system |
System Role
- Documents both close catalog numbers in one controlled comparison.
- Separates the mechanical difference between the 5.2-inch and 4.6-inch case options.
- Keeps the 1 m lead and approval identity visible for extension-cable selection.
- Supports exact replacement of the requested longer-case execution.
Compatibility
- Measure installed case reach and adjustment allowance before selecting between the two listed probes.
- Use the extension cable that completes the required system length with the 1 m probe lead.
- Protect the option 02 connector in the installation because it has no connector protector.
- Maintain the 05 approval execution and associated loop documentation where required.
Applications
- Side-by-side selection of two close 3300 XL 8 mm probe codes.
- Radial vibration or axial-position replacement using the 5.2-inch case.
- Maintenance planning where two close case-length options appear in historical spares lists.
FAQ
Can 330101-00-52-10-02-05 directly replace the 4.6-inch companion model?
Only after the bracket, insertion depth and adjustment range are checked; the 0.6-inch case difference can change the installed probe position.
Why is 330101-00-52-10-02-05 compared with the 4.6-inch companion?
The suffixes are close while the case reach differs; showing both makes the mechanical selection boundary clear before ordering.
Which cable decision is required for 330101-00-52-10-02-05?
Choose the compatible extension cable that completes the electrical length expected by the installed 3300 XL 8 mm Proximitor Sensor.
What should be photographed before removing 330101-00-52-10-02-05?
Capture the exposed thread, locknut position, connector protection, cable route and probe-to-target gap reference.
How should an approved loop using 330101-00-52-10-02-05 be accepted?
Verify component identities and certificates, reinstall the barrier or isolator circuit correctly, then document gap voltage and channel response.
