Bently Nevada 330101-00-60-10-02-00 3300 XL 8 mm Proximity Probe

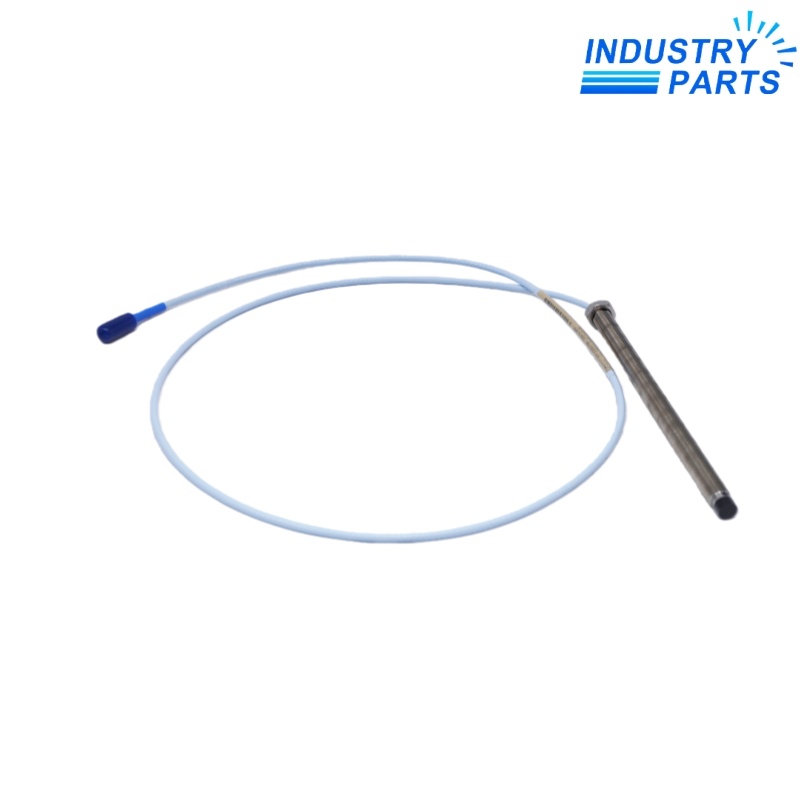

A 3/8-24 UNF six-inch standard probe with ClickLoc connection and standard unarmored cable.
Key Information
330101-00-60-10-02-00 is a Bently Nevada 3300 XL 8 mm proximity probe with a 3/8-24 UNF threaded case and no cable armor. Its option code specifies 0.0 in unthreaded length, a 6.0 in case and 1.0 m (3.3 ft) total electrical length.
The probe uses a miniature coaxial ClickLoc connector with standard cable and no connector protector. The final suffix specifies that an agency approval is not required.
Functions
- Provides non-contacting static position and dynamic vibration signals in a matched 3300 XL 8 mm transducer system.
- Combines a 6.0 in case with 1.0 m (3.3 ft) total electrical length for the encoded installation geometry.
- Uses a 3/8-24 UNF standard-mount case with an unarmored lead.
- Connects through the miniature coaxial ClickLoc interface using standard cable.
- Supports documented component interchangeability when the correct system family and electrical length are maintained.
Specifications
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Part Number | 330101-00-60-10-02-00 |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Thread | 3/8-24 UNF |
| Cable Armor | None |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 6.0 in |
| Total Electrical Length | 1.0 m (3.3 ft) |
| Connector | Miniature coaxial ClickLoc |
| Cable Construction | Standard 75 Ω triaxial FEP-insulated cable |
| Connector Protector | Not included |
| Agency Approval Option | Not required |
| System Linear Range | 2 mm (80 mil) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil), ±5% |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Recommended Radial Gap | Approximately 1.27 mm (50 mil), -9 Vdc |
| Minimum Flat Target | 15.2 mm (0.6 in) diameter |
| Probe Temperature Range | -52 to +177 °C |
Installation
- Match 330101-00-60-10-02-00 with a compatible 3300 XL extension cable and Proximitor Sensor.
- The probe lead plus extension-cable length must equal the Proximitor Sensor system length.
- Preserve the 6.0 in case reach and 3/8-24 UNF mounting thread.
- Maintain target size, shaft diameter, probe gap and tip-separation requirements during installation.
- Do not treat approval option 00 as hazardous-area certification.
Lifecycle
- Keep the complete 330101-00-60-10-02-00 option string so the case, cable and approval selections remain traceable.
- Record probe, extension-cable and Proximitor Sensor length codes before disconnecting the loop.
- Protect the unarmored lead from excessive bending and connector loading during routing.
- Preserve the 6.0 in case and 1.0 m (3.3 ft) electrical-length selection during replacement.
- Re-establish the probe gap and verify the monitor channel before returning machinery protection to service.
FAQ
What mechanical reach is provided by 330101-00-60-10-02-00?
330101-00-60-10-02-00 combines 0.0 inch unthreaded length with a 6.0 inch overall case.
Which cable length is specified for 330101-00-60-10-02-00?
330101-00-60-10-02-00 has a 1.0 m (3.3 ft) total electrical length.
Is 330101-00-60-10-02-00 supplied with cable armor?
No. The 330101 base number identifies 330101-00-60-10-02-00 as a 3/8-24 UNF probe without armor.
Does 330101-00-60-10-02-00 include agency approvals?
No. The final 00 suffix on 330101-00-60-10-02-00 means approval is not required.
What connector configuration belongs to 330101-00-60-10-02-00?
330101-00-60-10-02-00 uses a miniature coaxial ClickLoc connector with standard cable and no protector.
What should be verified after installing 330101-00-60-10-02-00?
Restore the probe gap, inspect routing and verify the monitor-channel response for 330101-00-60-10-02-00.
