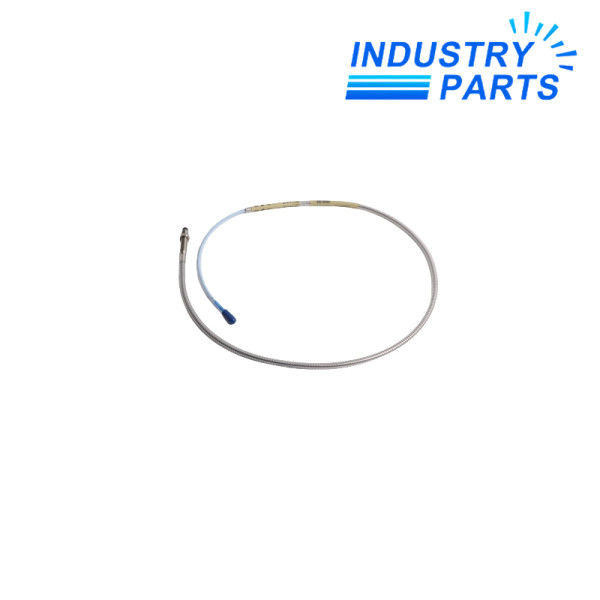

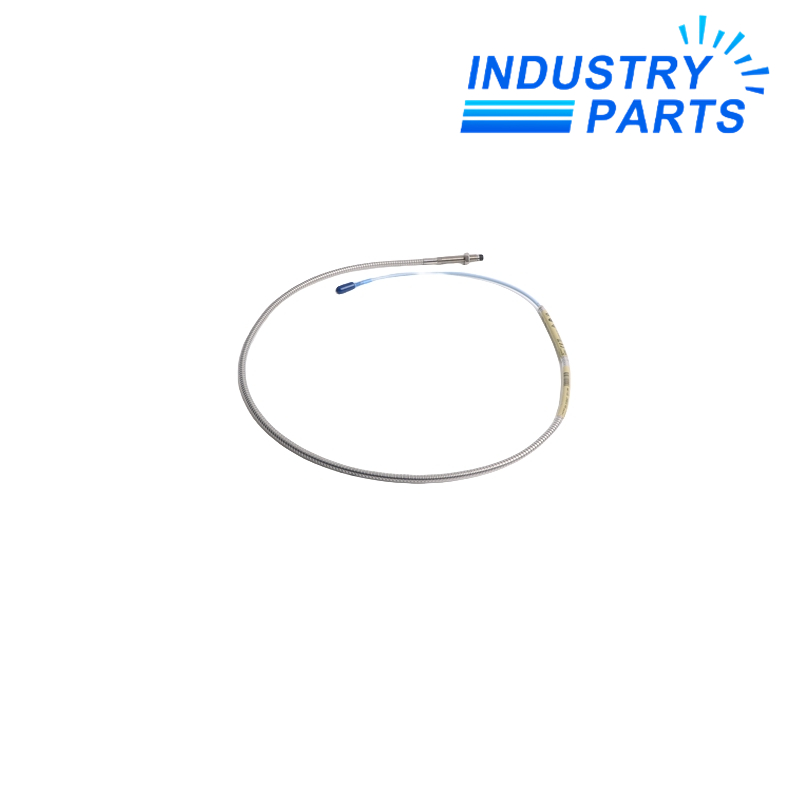

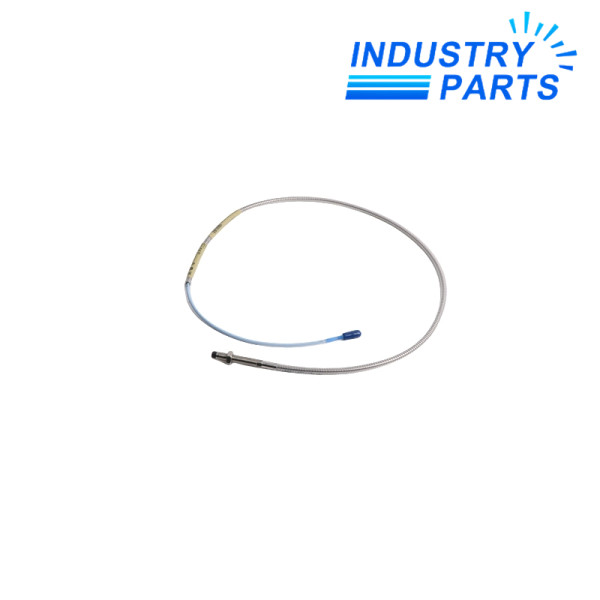

330102-00-20-10-02-00 is a Bently Nevada 3300 XL 8 mm proximity probe with a 3/8-24 UNF threaded case and flexible stainless-steel cable armor. Its option code specifies 0.0 in unthreaded length, a 2.0 in case and 1.0 m (3.3 ft) total electrical length.

The probe uses a miniature coaxial ClickLoc connector with standard cable and no connector protector. The final suffix specifies that an agency approval is not required.

• Provides non-contacting static position and dynamic vibration signals in a matched 3300 XL 8 mm transducer system.
• Combines a 2.0 in case with 1.0 m (3.3 ft) total electrical length for the encoded installation geometry.
• Uses a 3/8-24 UNF standard-mount case with flexible stainless-steel armor.
• Connects through the miniature coaxial ClickLoc interface using standard cable.
• Supports documented component interchangeability when the correct system family and electrical length are maintained.

• Match 330102-00-20-10-02-00 with a compatible 3300 XL extension cable and Proximitor Sensor.
• The probe lead plus extension-cable length must equal the Proximitor Sensor system length.
• Preserve the 2.0 in case reach and 3/8-24 UNF mounting thread.
• Maintain target size, shaft diameter, probe gap and tip-separation requirements during installation.
• Do not treat approval option 00 as hazardous-area certification.

• Radial shaft-vibration monitoring on fluid-film bearing machinery.
• Axial shaft-position and thrust-position measurement.
• Eccentricity and shaft-centerline measurement.
• Speed and Keyphasor phase-reference sensing.
• General-area installations where an agency approval option is not required.
