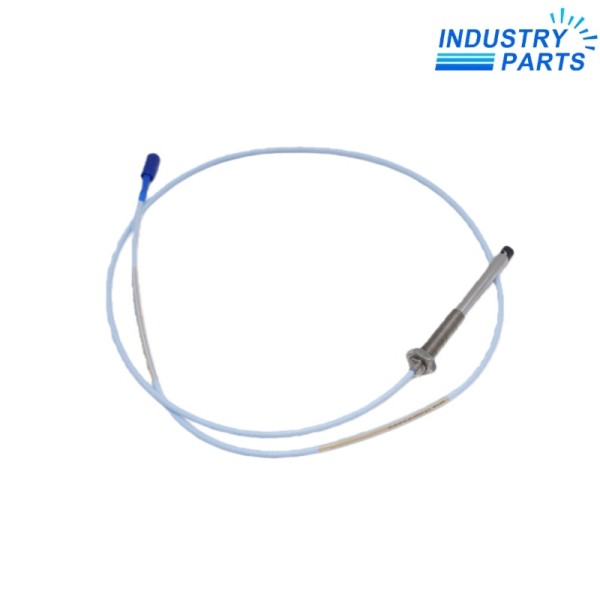

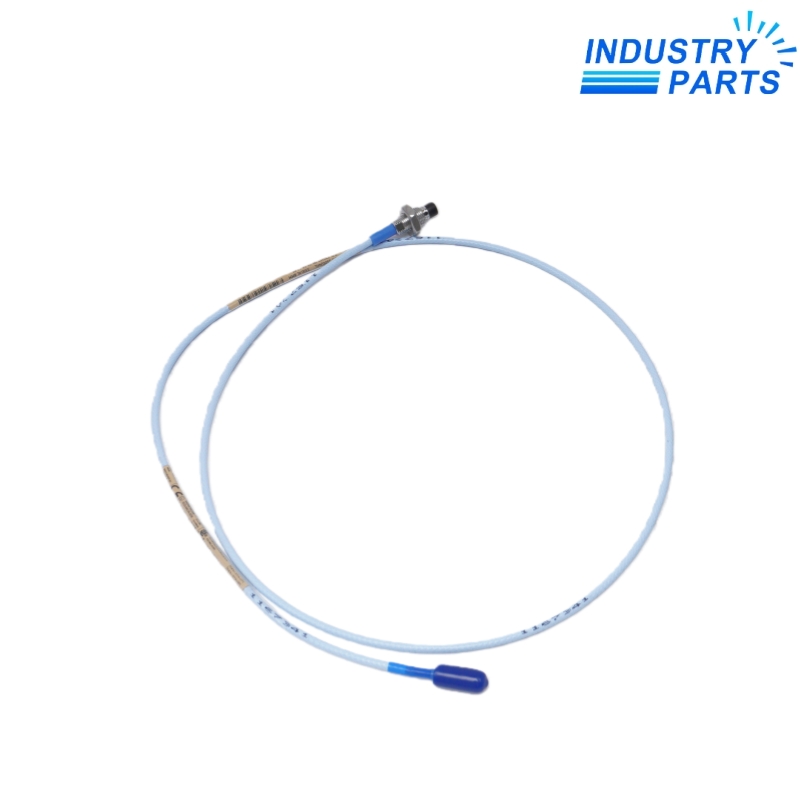

Bently Nevada 330103-00-02-10-02-05 3300 XL 8 mm Proximity Probe
A M10 × 1 approved 20 mm metric probe with ClickLoc connection and standard unarmored cable.
Key Information
330103-00-02-10-02-05 is a Bently Nevada 3300 XL 8 mm proximity probe with a M10 × 1 threaded case and no cable armor. Its option code specifies 0 mm unthreaded length, a 20 mm case and 1.0 m (3.3 ft) total electrical length.
The probe uses a miniature coaxial ClickLoc connector with standard cable and no connector protector. The final suffix specifies CSA, ATEX and IECEx approvals.
Functions
- Provides non-contacting static position and dynamic vibration signals in a matched 3300 XL 8 mm transducer system.
- Combines a 20 mm case with 1.0 m (3.3 ft) total electrical length for the encoded installation geometry.
- Uses a M10 × 1 standard-mount case with an unarmored lead.
- Connects through the miniature coaxial ClickLoc interface using standard cable.
- Supports documented component interchangeability when the correct system family and electrical length are maintained.
Specifications
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Part Number | 330103-00-02-10-02-05 |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Thread | M10 × 1 |
| Cable Armor | None |
| Unthreaded Length | 0 mm |
| Overall Case Length | 20 mm |
| Total Electrical Length | 1.0 m (3.3 ft) |
| Connector | Miniature coaxial ClickLoc |
| Cable Construction | Standard 75 Ω triaxial FEP-insulated cable |
| Connector Protector | Not included |
| Agency Approval Option | CSA, ATEX and IECEx approvals |
| System Linear Range | 2 mm (80 mil) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil), ±5% |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Recommended Radial Gap | Approximately 1.27 mm (50 mil), -9 Vdc |
| Minimum Flat Target | 15.2 mm (0.6 in) diameter |
| Probe Temperature Range | -52 to +177 °C |
Installation
- Match 330103-00-02-10-02-05 with a compatible 3300 XL extension cable and Proximitor Sensor.
- The probe lead plus extension-cable length must equal the Proximitor Sensor system length.
- Preserve the 20 mm case reach and M10 × 1 mounting thread.
- Maintain target size, shaft diameter, probe gap and tip-separation requirements during installation.
- Apply the hazardous-area conditions associated with approval option 05.
Lifecycle
- Keep the complete 330103-00-02-10-02-05 option string so the case, cable and approval selections remain traceable.
- Record probe, extension-cable and Proximitor Sensor length codes before disconnecting the loop.
- Protect the unarmored lead from excessive bending and connector loading during routing.
- Preserve the 20 mm case and 1.0 m (3.3 ft) electrical-length selection during replacement.
- Re-establish the probe gap and verify the monitor channel before returning machinery protection to service.
FAQ
Why is 330103-00-02-10-02-05 a metric 3300 XL probe?
330103-00-02-10-02-05 uses the 330103 M10 × 1 unarmored construction.
Which case dimensions are encoded in 330103-00-02-10-02-05?
330103-00-02-10-02-05 has 0 mm unthreaded length and a 20 mm overall case.
What electrical length belongs to 330103-00-02-10-02-05?
330103-00-02-10-02-05 uses a 1.0 m total electrical length.
Which approval option is selected for 330103-00-02-10-02-05?
330103-00-02-10-02-05 carries option 05 for CSA, ATEX and IECEx approvals.
Does 330103-00-02-10-02-05 include a connector protector?
No. 330103-00-02-10-02-05 uses option 02, a miniature ClickLoc connector with standard cable and no protector.
How should 330103-00-02-10-02-05 be integrated into the transducer loop?
Match 330103-00-02-10-02-05 with the correct extension cable and 3300 XL Proximitor Sensor system length.
