Bently Nevada 330103-00-04-10-02-00 3300 XL 8 mm Proximity Probe

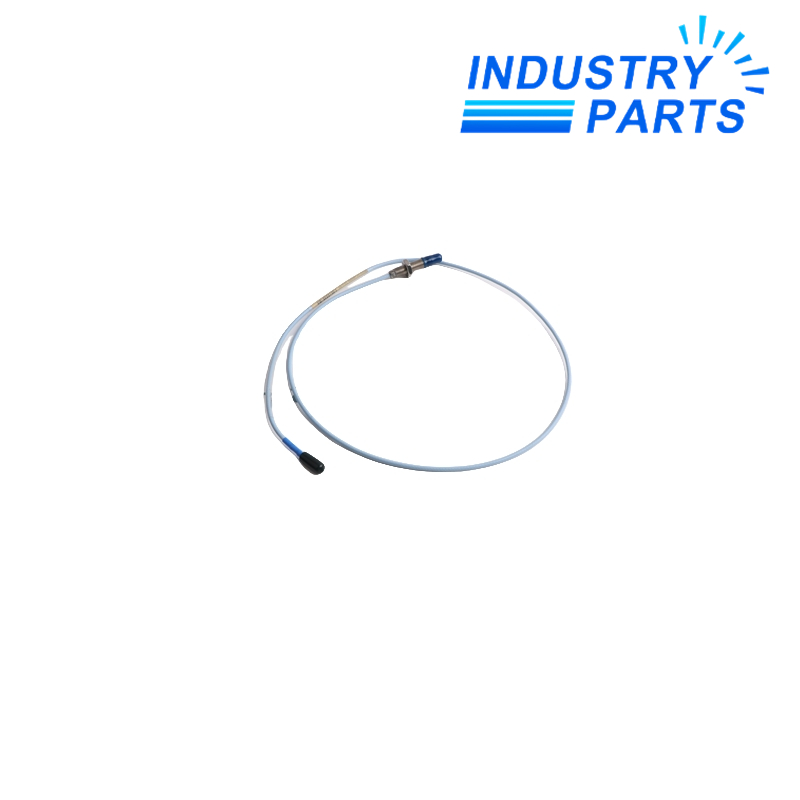

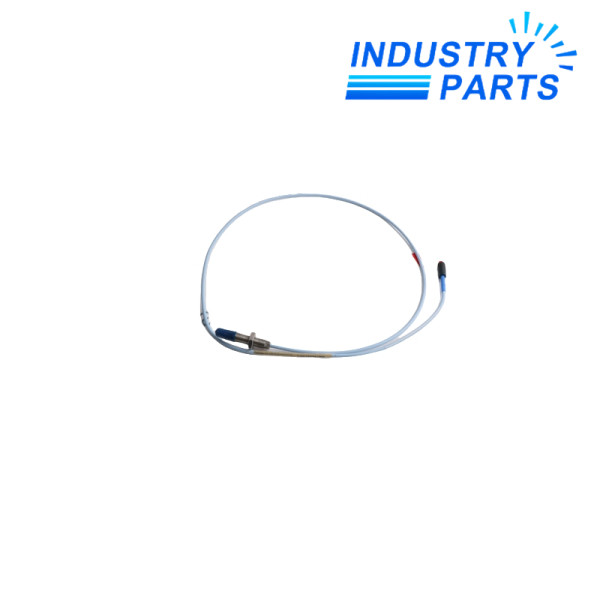

A unarmored 40 mm metric probe with 1.0 m (3.3 ft) electrical length, an unarmored lead and a miniature ClickLoc connection.
Product Identification
330103-00-04-10-02-00 is a Bently Nevada 3300 XL 8 mm proximity probe with a M10 × 1 threaded case and no cable armor. Its option code specifies 0 mm unthreaded length, a 40 mm case and 1.0 m (3.3 ft) total electrical length.
The probe uses a miniature coaxial ClickLoc connector with standard cable and no connector protector. The final suffix specifies that an agency approval is not required.
Engineering Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Part Number | 330103-00-04-10-02-00 |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Thread | M10 × 1 |
| Cable Armor | None |
| Unthreaded Length | 0 mm |
| Overall Case Length | 40 mm |
| Total Electrical Length | 1.0 m (3.3 ft) |
| Connector | Miniature coaxial ClickLoc |
| Cable Construction | Standard 75 Ω triaxial FEP-insulated cable |
| Connector Protector | Not included |
| Agency Approval Option | Not required |
| System Linear Range | 2 mm (80 mil) |
| Nominal System Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Recommended Radial Gap | Approximately 1.27 mm (50 mil), -9 Vdc |
| Minimum Flat Target | 15.2 mm (0.6 in) diameter |
| Probe Temperature Range | -52 to +177 °C |
Functions
- Provides non-contacting static position and dynamic vibration signals in a matched 3300 XL 8 mm transducer system.
- Combines a 40 mm case with 1.0 m (3.3 ft) total electrical length for the encoded installation geometry.
- Uses a M10 × 1 standard-mount case with an unarmored lead.
- Connects through the miniature coaxial ClickLoc interface using standard cable.
- Supports documented component interchangeability when the correct system family and electrical length are maintained.
Applications
- Radial shaft-vibration monitoring on fluid-film bearing machinery.
- Axial shaft-position and thrust-position measurement.
- Eccentricity and shaft-centerline measurement.
- Speed and Keyphasor phase-reference sensing.
- General-area installations where an agency approval option is not required.
Lifecycle
- Keep the complete 330103-00-04-10-02-00 option string so the case, cable and approval selections remain traceable.
- Record probe, extension-cable and Proximitor Sensor length codes before disconnecting the loop.
- Protect the standard probe lead from excessive bending and connector loading during routing.
- Preserve the 40 mm case and 1.0 m (3.3 ft) electrical-length selection during replacement.
- Re-establish the probe gap and verify the monitor channel before returning machinery protection to service.
FAQ
What metric case format belongs to 330103-00-04-10-02-00?
330103-00-04-10-02-00 uses an M10 × 1 thread, 0 mm unthreaded length and a 40 mm overall case.
Is cable armor included with 330103-00-04-10-02-00?
No. 330103-00-04-10-02-00 uses the unarmored 330103 metric construction.
What electrical length is encoded in 330103-00-04-10-02-00?
330103-00-04-10-02-00 provides a 1.0 m (3.3 ft) total electrical length.
Which connector arrangement is fitted to 330103-00-04-10-02-00?
330103-00-04-10-02-00 uses standard cable and a miniature ClickLoc connector without a connector protector.
Does 330103-00-04-10-02-00 include hazardous-area approvals?
No. Approval option 00 on 330103-00-04-10-02-00 means agency approval is not required.
Which checks complete a 330103-00-04-10-02-00 replacement?
Confirm system length, 40 mm case reach, M10 × 1 thread, probe gap, routing and monitor response for 330103-00-04-10-02-00.
