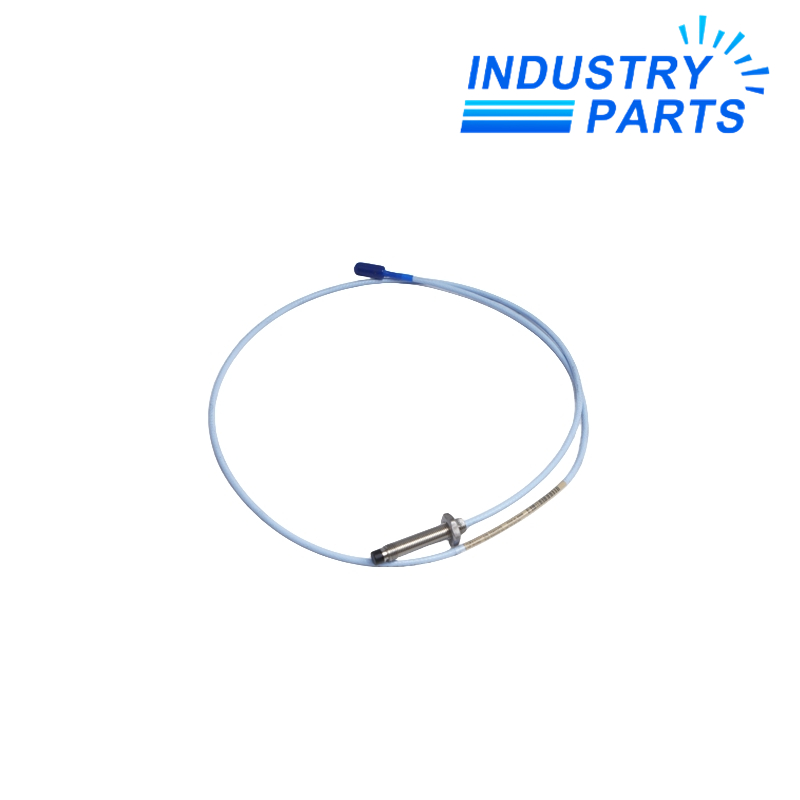

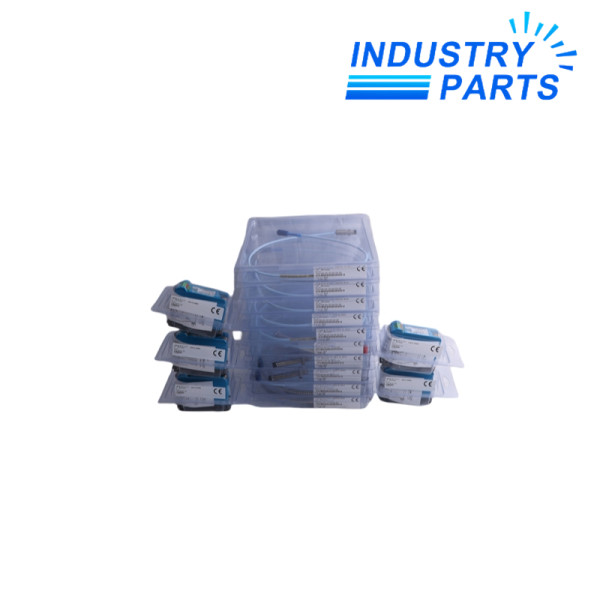

330103-00-05-10-02-00 is a Bently Nevada 3300 XL 8 mm proximity probe with a M10 × 1 threaded case and no cable armor. Its option code specifies 0 mm unthreaded length, a 50 mm case and 1.0 m (3.3 ft) total electrical length.

The probe uses a miniature coaxial ClickLoc connector with standard cable and no connector protector. The final suffix specifies that an agency approval is not required.

• Provides non-contacting static position and dynamic vibration signals in a matched 3300 XL 8 mm transducer system.
• Combines a 50 mm case with 1.0 m (3.3 ft) total electrical length for the encoded installation geometry.
• Uses a M10 × 1 standard-mount case with an unarmored lead.
• Connects through the miniature coaxial ClickLoc interface using standard cable.
• Supports documented component interchangeability when the correct system family and electrical length are maintained.

• Match 330103-00-05-10-02-00 with a compatible 3300 XL extension cable and Proximitor Sensor.
• The probe lead plus extension-cable length must equal the Proximitor Sensor system length.
• Preserve the 50 mm case reach and M10 × 1 mounting thread.
• Maintain target size, shaft diameter, probe gap and tip-separation requirements during installation.
• Do not treat approval option 00 as hazardous-area certification.

• Keep the complete 330103-00-05-10-02-00 option string so the case, cable and approval selections remain traceable.
• Record probe, extension-cable and Proximitor Sensor length codes before disconnecting the loop.
• Protect the standard probe lead from excessive bending and connector loading during routing.
• Preserve the 50 mm case and 1.0 m (3.3 ft) electrical-length selection during replacement.
• Re-establish the probe gap and verify the monitor channel before returning machinery protection to service.
