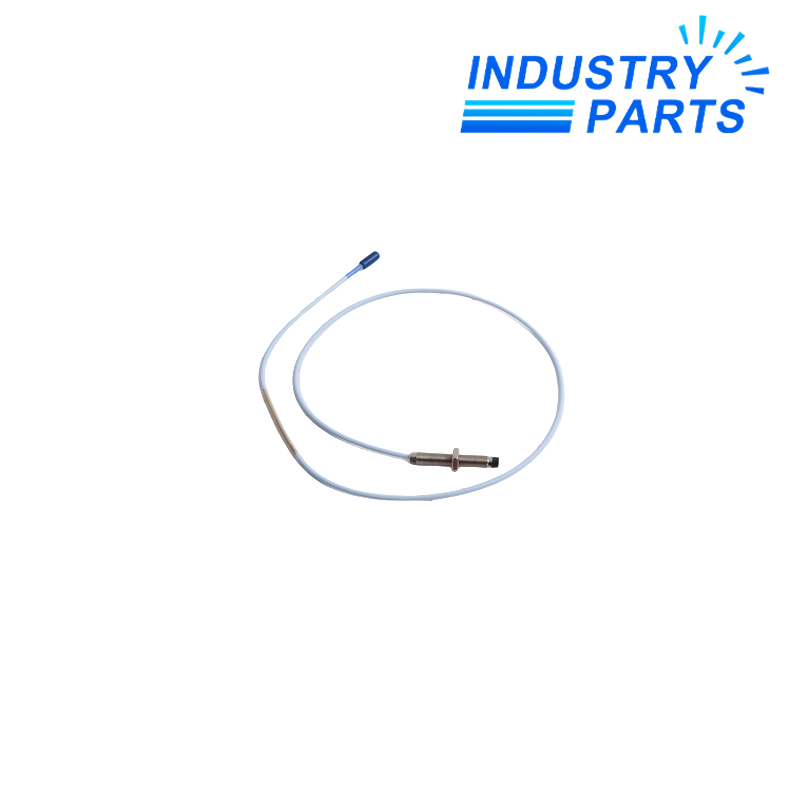

Bently Nevada 330103-00-06-10-02-00 3300 XL 8 mm Proximity Probe
An unarmored metric M10x1 3300 XL 8 mm probe with 60 mm case, 1.0 m lead and no approval option.
Overview
330103-00-06-10-02-00 is the unarmored M10x1 Bently Nevada 3300 XL 8 mm proximity probe. The code specifies zero unthreaded length, a 60 mm case, 1.0 m total lead, standard ClickLoc cable and no agency-approval option.
This exact model already has a live IndustryParts product page; this content is prepared as an update and preserves the existing identity rather than creating a duplicate listing. Match the installed extension and Proximitor before supply.
Specs
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330103-00-06-10-02-00 |
| Product Family | 3300 XL 8 mm proximity transducer system |
| Thread | Metric M10x1 |
| Armor | Unarmored probe |
| Unthreaded Length | 0 mm |
| Case Length | 60 mm |
| Total Length | 1.0 m |
| Connector / Cable | 02: ClickLoc connector, standard cable |
| Approval Field | 00: no agency approval option |
| System Scale Factor | 200 mV/mil nominal with matched system |
| System Linear Range | 80 mils (2.0 mm) with matched 8 mm system |
Features
- Maintains the original unarmored 3300 XL 8 mm probe identity.
- Uses a 60 mm case and metric M10x1 mounting for the matching installation.
- Provides a standard ClickLoc cable option and 1.0 m probe lead.
- Requires the non-approved configuration to be checked against the site classification.
Applications
- General-purpose rotating-machine vibration monitoring.
- Replacement of matching 3300 XL 8 mm probes in non-hazardous installations.
- Radial vibration and axial-position measurement with the correct system electronics.
Lifecycle
- Confirm that the installation does not require an armored lead or approval option.
- Measure target gap and verify M10x1 thread and 60 mm case clearance.
- Record the exact Proximitor, extension and system length.
- Retain the live-page product identity and update service records after exchange.
FAQ
Is 330103-00-06-10-02-00 an armored probe?
No. The 330103 family is the unarmored 8 mm probe; do not substitute a 330104 armored code without checking the installation.
What does approval field 00 mean for 330103-00-06-10-02-00?
It is the no-agency-approval configuration; confirm the site classification before using it in a controlled or hazardous area.
Why must the case length of 330103-00-06-10-02-00 be checked?
The 60 mm case controls mechanical fit, insertion position and available clearance at the machine point.
What related components complete the 330103-00-06-10-02-00 system?
Match the 1.0 m probe lead with the correct extension cable and 3300 XL Proximitor Sensor to achieve the required system length.
What is the status of the IndustryParts listing for 330103-00-06-10-02-00?
A live IndustryParts page already exists; this package is an update of the page content, not a new duplicate product.
