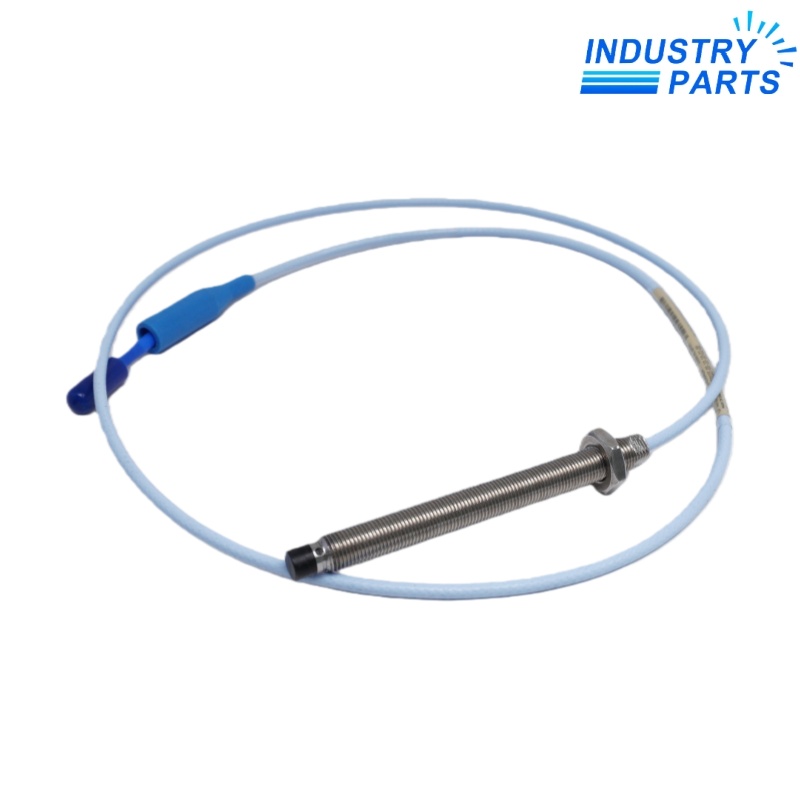

Bently Nevada 330103-00-10-10-01-00 3300 XL Probe
An unarmored 3300 XL 8 mm proximity-probe identifier with a submitted metric option string requiring exact label confirmation.
Key Information
330103-00-10-10-01-00 is a submitted Bently Nevada 3300 XL 8 mm proximity-probe identifier. The 330103 family is the unarmored probe family; the exact option fields in this submitted string must be preserved and checked against the delivered label.
The probe is one element of a matched probe, extension-cable and Proximitor Sensor system. Do not silently add or remove a zero in the model code when quoting or replacing the installed probe.
Functions
- Measures non-contact shaft vibration or position with the matching 3300 XL 8 mm electronics.
- Uses the unarmored 330103 probe family for the installation documented by the complete code.
- Retains the submitted connector, cable and approval fields as a single identity.
- Supports field replacement when target gap and system length are verified.
Specifications
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330103-00-10-10-01-00 |
| Product Family | 3300 XL 8 mm proximity transducer system |
| Probe Family | 330103 unarmored 8 mm probe |
| Option Fields | Preserve the submitted 00-10-10-01-00 string exactly |
| Thread / Case | Confirm from the physical label and installation drawing |
| Connector / Cable | Confirm option 01 and cable execution from the delivered label |
| Approval | Confirm the exact approval field before site use |
| System Electronics | Matched extension cable and 3300 XL Proximitor required |
| Target / Gap | Use the approved 3300 XL installation values |
Installation
- Send the removed probe label and installation drawing before a replacement is approved.
- Verify thread, case geometry, target material, initial gap and extension-cable system length.
- Keep the connector clean and protect the sensing tip while routing the cable.
- After installation, verify gap voltage, monitor indication and machine alarms at controlled speed.
Lifecycle
- Record the exact submitted model string in the asset register without normalization.
- Keep the probe, extension and Proximitor identities together for future service.
- Do not substitute a 330104 armored or differently suffixed 330103 probe without an engineering check.
FAQ
Why must the zero formatting of 330103-00-10-10-01-00 be preserved?
The submitted string is the procurement identity; adding or removing a zero can select a different probe option.
Which companion parts must be checked with 330103-00-10-10-01-00?
Confirm the matching extension cable, 3300 XL Proximitor Sensor, system length and monitor input.
Can 330103-00-10-10-01-00 replace a 330104 probe?
Not automatically. The 330103 family is unarmored, while 330104 identifies the armored family and may change the mechanical installation.
What evidence is needed for a 330103-00-10-10-01-00 quote?
Provide the old probe label, thread and case drawing, target information, cable route and site approval requirement.
What acceptance result matters after fitting 330103-00-10-10-01-00?
Verify gap, scale response, monitor reading, cable continuity, alarm behavior and the completed system record.
