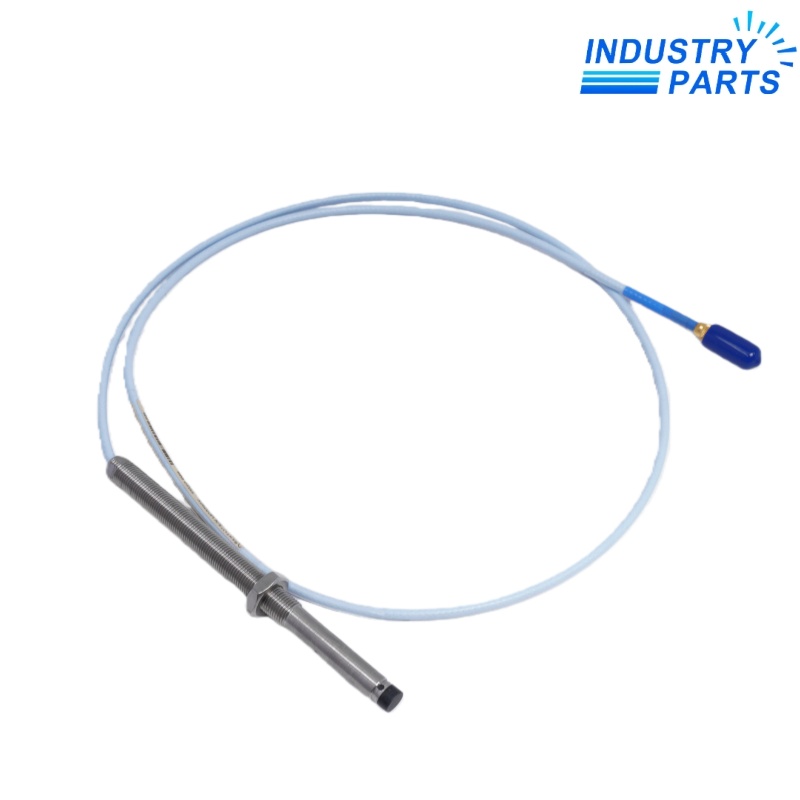

Bently Nevada 330103-00-13-10-02-00 3300 XL 8 mm Proximity Probe
A metric M10 × 1 proximity probe with a 130 mm case and standard one-metre lead.
Overview
330103-00-13-10-02-00 is a forward-mount 3300 XL 8 mm proximity probe with metric case threads and no cable armor. Its ordering code separates probe geometry from cable and approval choices.
The probe is one element of a matched transducer system. Selection must also account for extension-cable length and the total-length calibration of the connected Proximitor Sensor.
Specs
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330103-00-13-10-02-00 |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Case Thread | M10 × 1 |
| Cable Armor | Without armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 130 mm |
| Total Probe Length | 1.0 m (3.3 ft) |
| Connector / Cable | Miniature coaxial ClickLoc connector, standard cable |
| Connector Protector | Not included |
| Agency Approval | Not required |
Features
- Provides non-contact shaft vibration and position measurement within a matched 3300 XL system.
- Uses a compact metric threaded case for controlled probe positioning.
- Connects through the standard miniature coaxial ClickLoc interface.
- Keeps mechanical reach, cable execution and approval selection visible in one order code.
Applications
- Radial vibration measurement on rotating machinery.
- Shaft position or eccentricity monitoring.
- Metric-threaded probe installations in standard-area systems.
Lifecycle
- Record the installed gap voltage and thread engagement before removal.
- Protect the connector and lead from contamination, tension and sharp bends.
- Keep probe, extension-cable and Proximitor Sensor identities together in the channel record.
- Verify static and dynamic channel response after replacement.
FAQ
Can 330103-00-13-10-02-00 replace an armored 330104 probe?
Not as a like-for-like exchange; armor changes the cable construction and routing clearance, so the complete installation must be reviewed.
What mating parts should accompany a 330103-00-13-10-02-00 enquiry?
Provide the extension-cable and Proximitor Sensor numbers, monitor channel, mounting drawing and clear probe-label photographs.
How is system length checked for 330103-00-13-10-02-00?
Add the probe lead and extension-cable lengths, then match that total to the Proximitor Sensor calibration.
What mounting detail prevents damage to 330103-00-13-10-02-00?
Confirm available M10 × 1 thread engagement and use the specified probe installation torque rather than tightening by feel.
Does 330103-00-13-10-02-00 carry hazardous-area approvals?
The final 00 option is the no-approval execution; use the project classification to determine whether another suffix is required.
What should be tested after installing 330103-00-13-10-02-00?
Document final gap, static voltage, polarity, dynamic response, alarm behavior and cable restraint before return to service.
