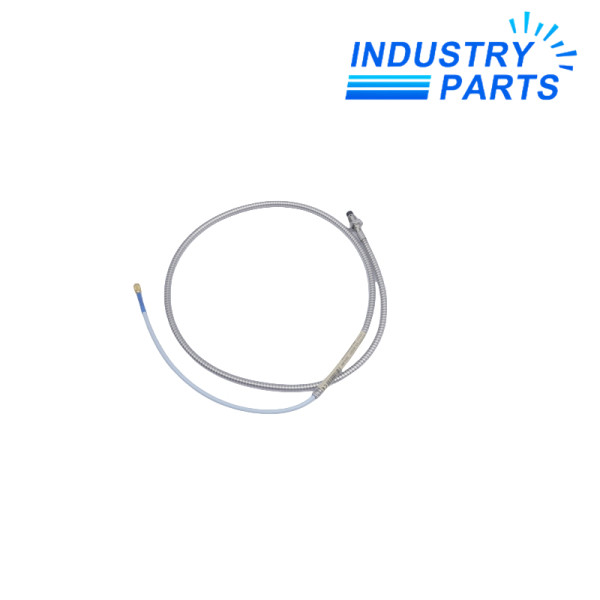

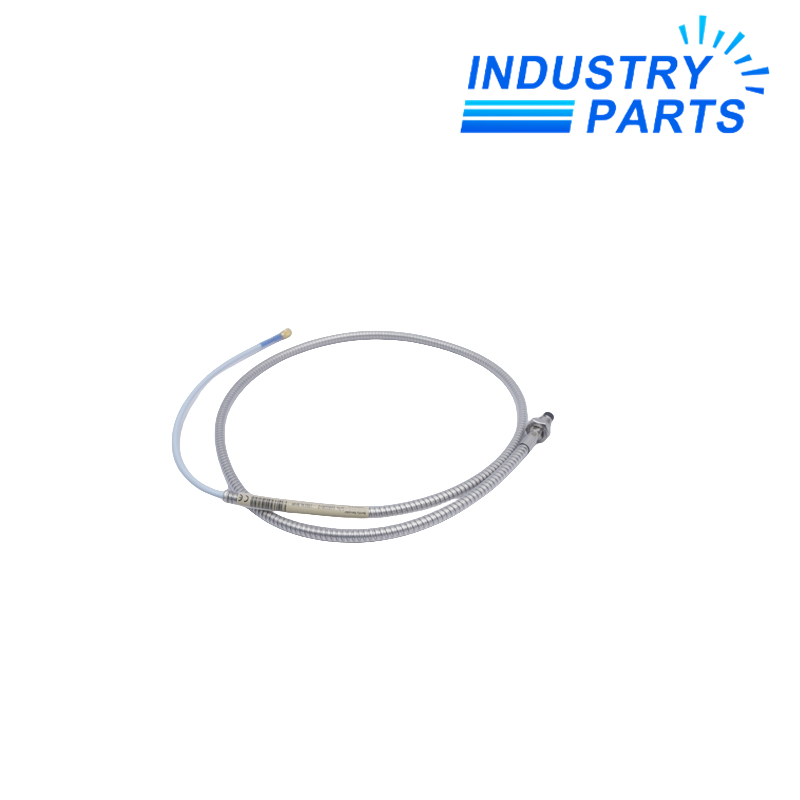

Bently Nevada 330104-00-02-10-02-00 3300 XL Probe
An armored 3300 XL 8 mm proximity-probe identifier whose complete option fields require exact label and installation verification.
Product Overview
330104-00-02-10-02-00 is a complete Bently Nevada 3300 XL 8 mm armored-probe identifier. The 330104 family indicates the armored construction; the option string must be preserved exactly until the physical label confirms each field.
The probe is an electrical system component, not a stand-alone replacement. Match the extension cable, Proximitor Sensor, target gap and site approval before installation.
Performance
- Provides armored non-contact measurement for rotating-machine vibration or position monitoring.
- Uses the 3300 XL 8 mm system architecture with compatible electronics.
- Retains the complete cable, connector and approval fields without silent normalization.
- Supports replacement planning where cable protection is required.
Technical Details
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330104-00-02-10-02-00 |
| Product Family | 3300 XL 8 mm proximity transducer system |
| Probe Family | 330104 armored 8 mm probe |
| Option String | Preserve complete 0-2-10-02-00 exactly |
| Thread / Case | Confirm from the physical label and installation drawing |
| Cable / Connector | Confirm 02 cable and connector execution |
| Approval Field | 00; confirm site classification and delivered marking |
| System Electronics | Matched 3300 XL extension and Proximitor required |
| Mechanical Fit | Verify case clearance, gap and mounting depth |
System Integration
- Provide the removed probe label, drawing, target details and system-length record before order release.
- Check armor, thread, case, cable route and connector keying against the installed assembly.
- Apply lockout and protect the sensing tip during replacement.
- Verify gap voltage, monitor reading, alarms and system approval after installation.
Applications
- Armored 3300 XL 8 mm probe replacement.
- Rotating machinery vibration and position monitoring.
- Cable-protection installations where the exact approval configuration is known.
FAQ
Why must 330104-00-02-10-02-00 remain unchanged in the quote?
The complete option string may encode distinct geometry, cable or approval fields; normalization could select a different probe.
330104-00-02-10-02-00: How does the 330104 family differ from 330103?
330104 identifies the armored family; 330103 is the unarmored family and is not an automatic mechanical substitute.
What companion electronics must match 330104-00-02-10-02-00?
Confirm the 3300 XL 8 mm extension cable, Proximitor Sensor, monitor input and total system length.
330104-00-02-10-02-00: Can approval field 00 be used in every installation?
No. Check the site classification and the actual marking on every installed system component.
What evidence reduces replacement risk for 330104-00-02-10-02-00?
Send the label, installation drawing, thread and case details, target gap, cable route and Proximitor number.
