Bently Nevada 330104-00-04-10-02-00 3300 XL Probe

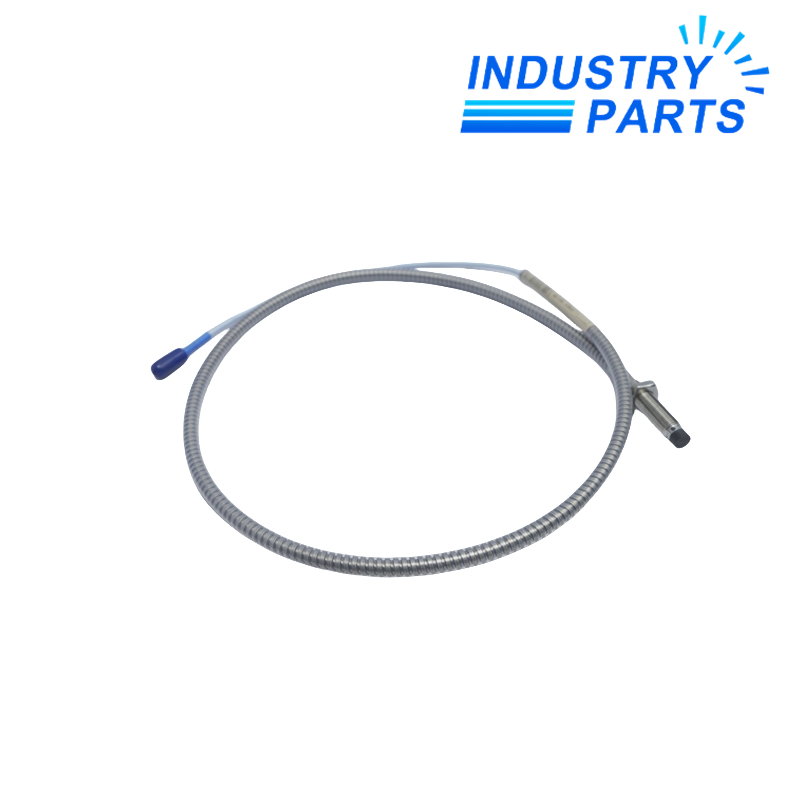

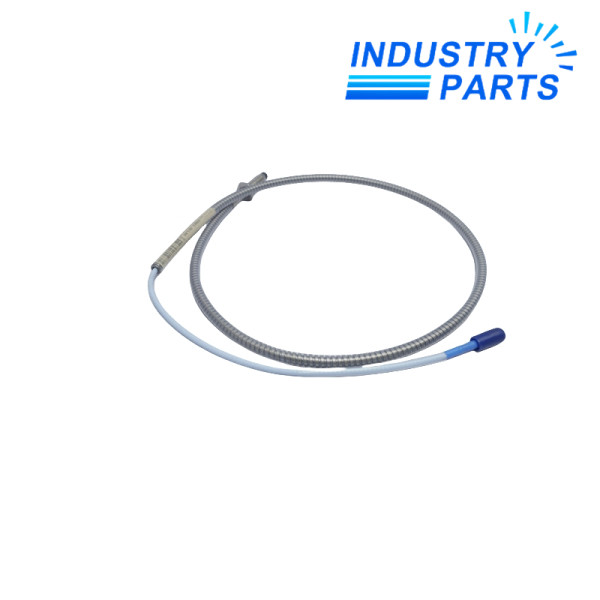

An armored metric M10x1 3300 XL 8 mm probe with 40 mm case, 1.0 m lead and no approval option.
Product Profile
330104-00-04-10-02-00 is the non-approved armored M10x1 Bently Nevada 3300 XL 8 mm probe. Its 40 mm case and 1.0 m standard ClickLoc lead distinguish it from the approval-coded 05 sibling.
The 00 approval field must be checked against the site classification. Do not carry hazardous-area claims from another suffix into this exact model.
Technical Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330104-00-04-10-02-00 |
| Product Family | 3300 XL 8 mm proximity transducer system |
| Thread | Metric M10x1 |
| Armor | Armored probe |
| Unthreaded Length | 0 mm |
| Case Length | 40 mm |
| Total Length | 1.0 m |
| Connector / Cable | 02: ClickLoc connector, standard cable |
| Approval Field | 00: no agency approval option |
| System Scale Factor | 200 mV/mil nominal with matched system |
| System Linear Range | 80 mils (2.0 mm) with matched 8 mm system |
System Role
- Provides an armored 40 mm probe body for general industrial installation.
- Retains the metric M10x1 thread and 1.0 m standard ClickLoc lead.
- Keeps the no-approval configuration distinct from the 05 suffix.
- Requires a matched 3300 XL 8 mm extension and Proximitor system.
Compatibility
- Confirm site classification before selecting the 00 approval field.
- Check M10x1 fit, case clearance, target gap and system length.
- Protect the ClickLoc connector and document the installed cable route.
- Keep the exact non-approved code in the maintenance record.
Applications
- Non-hazardous rotating-machine vibration monitoring.
- Armored cable routes where agency approval is not required.
- Replacement of the exact 40 mm-case 330104 configuration.
FAQ
What is the key difference between 330104-00-04-10-02-00 and the 05 suffix?
330104-00-04-10-02-00 carries approval field 00, while the 05 suffix is the multiple-approval configuration; site classification decides which is suitable.
Is 330104-00-04-10-02-00 the same length as the 120 mm-case model?
No. 330104-00-04-10-02-00 uses a 40 mm case; the 120 mm case has a different mechanical fit.
Which electronics must match 330104-00-04-10-02-00?
Use the compatible 3300 XL 8 mm extension cable and Proximitor Sensor for the required system length.
Can the 00 suffix be used in a hazardous area?
Do not assume so. Confirm the complete installed system approval and the site classification before use.
What should a 330104-00-04-10-02-00 order include?
Provide the exact code, old probe label, M10x1 drawing, case clearance, system length and site classification.
