Provides non-contact shaft vibration and position measurement within a matched 3300 XL 8 mm system.
Key Information

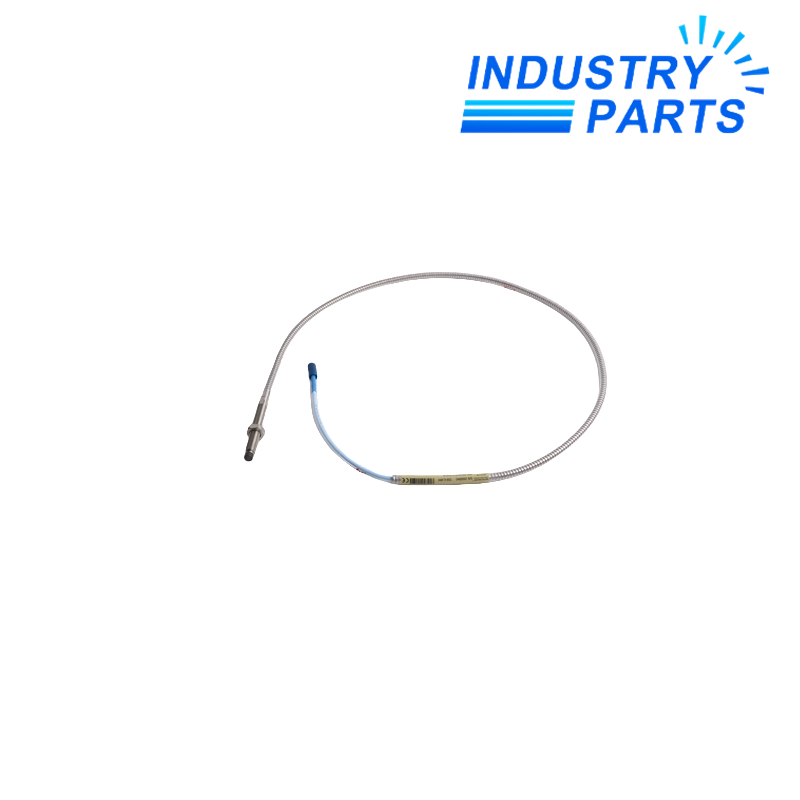

330104-00-07-10-02-00 is a Bently Nevada 3300 XL 8 mm proximity probe with an M10 x 1 case thread and cable armor. Its ordering code defines the mechanical lengths, lead length, connector execution and approval option.
The complete probe must be matched with the correct 3300 XL extension cable and Proximitor Sensor so the combined probe and extension-cable length equals the selected system length.
Functions
Uses an armored probe lead for added mechanical protection in the installed routing.
Connects through a miniature ClickLoc coaxial connector without the separate connector protector option.
Retains metric M10 x 1 mounting geometry for the documented machine location.
Specifications
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Exact model | 330104-00-07-10-02-00 |
| Product family | 3300 XL 8 mm Proximity Transducer System |
| Probe type | Metric standard-mount probe with armor |
| Probe-tip diameter | 8 mm |
| Case thread | M10 x 1 |
| Unthreaded length | 0 mm |
| Overall case length | 70 mm |
| Probe total length | 1.0 m |
| Connector and cable | Miniature ClickLoc coaxial connector; standard cable |
| Connector protector | Not included in option 02 |
| Agency approval option | Not required |
| Cable impedance | 75 ohm coaxial |
Installation
- Confirm the mounting hole thread, required probe gap and available case clearance before installation.
- Route the armored lead without exceeding the permitted bend or pulling force and protect the coaxial connection from contamination.
- Verify that probe length plus extension-cable length matches the Proximitor Sensor system length.
- Set the mechanical gap while monitoring gap voltage, then check runout and signal polarity at the monitoring channel.
Lifecycle
- Retain the entire 330104-00-07-10-02-00 code; neighboring case and cable options are not equivalent.
- Record extension-cable and Proximitor Sensor part numbers with the probe location.
- Inspect armor, ferrule, coaxial connector and probe tip whenever the machine is opened.
