Metric threaded body
The M10 × 1 form supports metric probe mounting hardware.

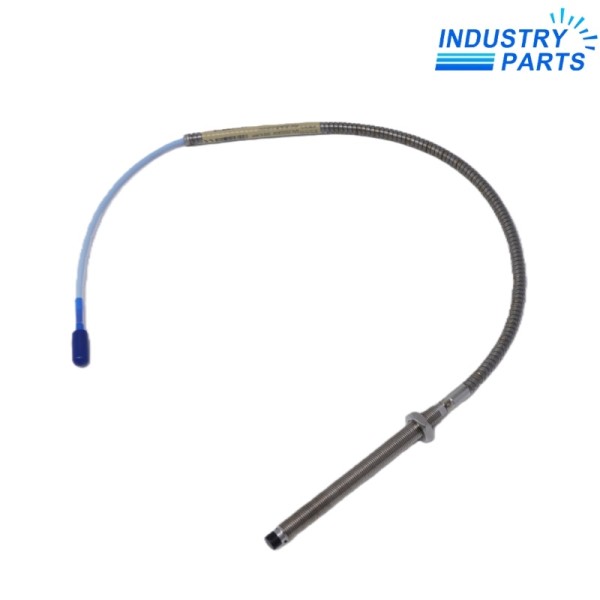

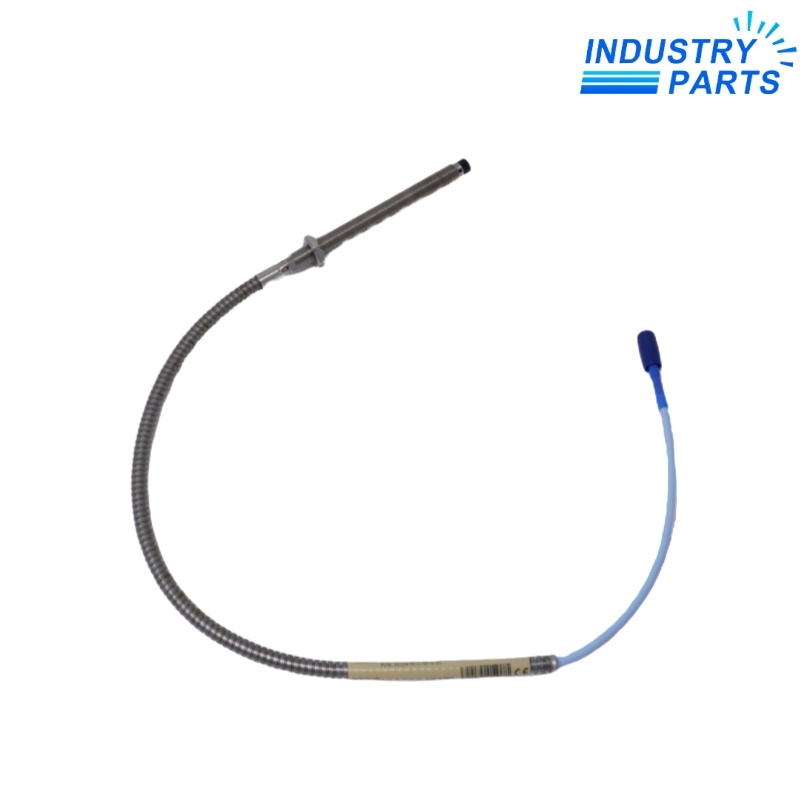

Bently Nevada 330104-00-11-05-02-00 Proximity Probes
Item NO.: 3430589
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameBently Nevada 330104-00-11-05-02-00 Proximity Probes
- Item NO.3430589
- Weight0.1000 kg = 0.2205 lb = 3.5274 oz
- CategoryTSI
- BrandBently Nevada
- Creation Time2025-11-04
3300 XL 8 mm Proximity Transducer SystemM10 x 1 Armored Proximity Probe
M10 × 1 THREAD · 110 MM CASE · 0.5 M TOTAL LENGTH
Bently Nevada 330104-00-11-05-02-00 3300 XL 8 mm Metric Proximity Probe
An armored metric 3300 XL 8 mm proximity probe with no unthreaded length, a 110 mm case and a miniature coaxial ClickLoc connector.
PRODUCT CONTEXT
Overview
330104-00-11-05-02-00 is the armored metric-thread execution of the 3300 XL 8 mm proximity probe. The 00 and 11 fields establish a fully threaded 110 mm case, while 05 sets the probe lead to 0.5 m.
Connector option 02 supplies the standard cable with a miniature coaxial ClickLoc connector and no connector protector. The final 00 identifies an execution without an agency-approval selection.
CONTROLLED DATA
Specs
Manufacturer
Bently Nevada
Exact model
330104-00-11-05-02-00
System family
3300 XL 8 mm
Probe construction
Armored
Thread
M10 × 1
Unthreaded length
0 mm
Overall case length
110 mm
Total probe length
0.5 m
Connector
Miniature coaxial ClickLoc
Connector protector
Not included
Agency-approval selection
None
FUNCTIONAL DISTINCTIONS
Features
Armored lead
The probe cable includes the documented armored construction.
ClickLoc connection
The miniature coaxial connector joins the probe to the compatible extension cable.
System calibration boundary
The probe must remain paired with the correct extension cable and Proximitor sensor.
FIELD CONTEXT
Applications
Metric machinery installations
Measuring shaft position or vibration where an M10 × 1 probe is specified.
Long-case access
Using the 110 mm threaded case for the documented mounting depth.
Like-for-like probe service
Retaining the probe code and calibrated transducer-chain family during replacement.
SERVICE SEQUENCE
Lifecycle
Identify
Record the 330104-00-11-05-02-00 probe, extension cable, Proximitor and monitor-channel labels before disturbance.
Install
Protect the connector, set mechanical clearance and follow the approved probe-thread and gap procedure.
Commission
Check static gap voltage, polarity, scale and channel response with the complete chain connected.
CUSTOMER QUESTIONS
FAQ
Which records should accompany a 330104-00-11-05-02-00 quotation?
Provide the complete probe label, extension-cable and Proximitor identities, installed gap, thread form and required quantity.
Can a 3/8-24 probe replace 330104-00-11-05-02-00?
No direct fit should be assumed because 330104-00-11-05-02-00 uses the M10 × 1 metric thread.
Does 330104-00-11-05-02-00 include a connector protector?
No. Connector option 02 identifies the miniature coaxial ClickLoc connection without a connector protector.
Why is the 110 mm case important for 330104-00-11-05-02-00?
It controls the available threaded reach and must agree with the installed bracket or housing geometry.
What proves 330104-00-11-05-02-00 is accepted after installation?
A correct mechanical fit, secure connection, stable static gap and verified monitor response are required.
