Bently Nevada 330104-00-12-10-02-05 3300 XL Probe
An armored metric M10x1 3300 XL 8 mm probe with 120 mm case, 1.0 m lead and multiple approvals.
Product Profile

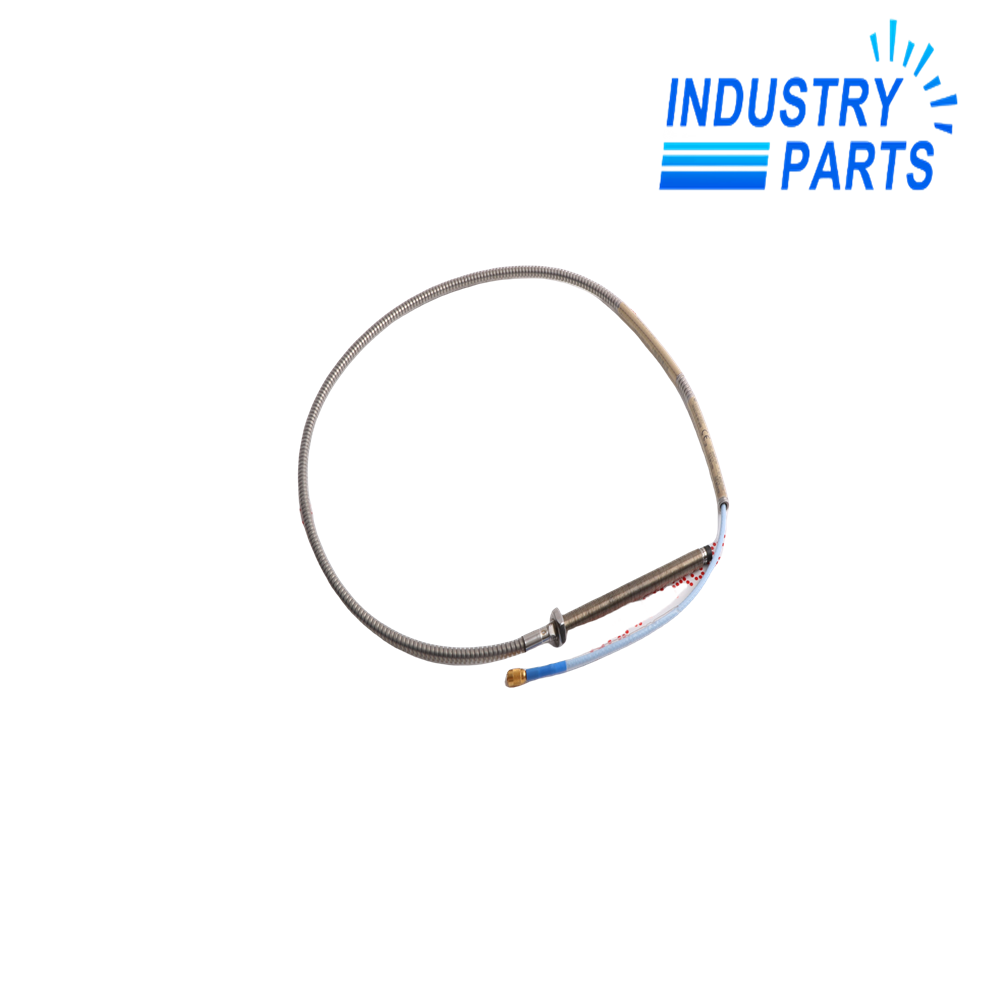

330104-00-12-10-02-05 is an armored M10x1 3300 XL 8 mm probe with the longer 120 mm case. The exact order code keeps its 0 mm unthreaded length, 1.0 m lead, standard ClickLoc cable and approval option together.
The longer case changes the mechanical fit versus the 40 mm sibling. Confirm the installation drawing, insertion depth and target gap before replacement.
Technical Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330104-00-12-10-02-05 |
| Product Family | 3300 XL 8 mm proximity transducer system |
| Thread | Metric M10x1 |
| Armor | Armored probe |
| Unthreaded Length | 0 mm |
| Case Length | 120 mm |
| Total Length | 1.0 m |
| Connector / Cable | 02: ClickLoc connector, standard cable |
| Approval Field | 05: CSA/ATEX/IECEx multiple approvals; verify delivered marking |
| System Scale Factor | 200 mV/mil nominal with matched system |
| System Linear Range | 80 mils (2.0 mm) with matched 8 mm system |
System Role
- Provides a long 120 mm armored case for installations requiring additional reach.
- Retains the M10x1 metric thread, 1.0 m lead and standard ClickLoc option.
- Keeps the approval field visible for controlled hazardous-area procurement.
- Works only with a matched 3300 XL 8 mm extension and Proximitor system.
Compatibility
- Check case clearance, insertion depth and target gap against the machine drawing.
- Verify approval marks on the probe, extension and Proximitor chain.
- Record the cable route and connector condition during scheduled inspection.
- Do not shorten or substitute the 120 mm case with a 40 mm sibling without engineering review.
Applications
- Long-reach probe points on rotating machinery.
- Armored cable routes around skids and compressor packages.
- Replacement of a matching 120 mm-case 330104 assembly.
FAQ
Why is the 120 mm case of 330104-00-12-10-02-05 important?
It controls the mechanical reach and clearance; a 40 mm case from the similar code is not an automatic substitute.
What does the approval suffix of 330104-00-12-10-02-05 require?
Confirm the delivered CSA/ATEX/IECEx marking and the complete hazardous-area system approval.
How should the 330104-00-12-10-02-05 system length be selected?
Match the 1.0 m probe lead with the extension cable and Proximitor Sensor required for the installed electronics.
What mounting evidence improves a 330104-00-12-10-02-05 quote?
Send the M10x1 drawing, measured insertion depth, case clearance, target details and removed probe label.
Can 330104-00-12-10-02-05 be used without checking the 3300 XL electronics?
No. The probe, extension and Proximitor must form the specified 3300 XL 8 mm electrical system.
