60 MM UNTHREADED · 140 MM CASE · 1.0 M CABLE · CLICKLOC
Bently Nevada 330104-06-14-10-02-00 3300 XL 8 mm Armored Metric Proximity Probe

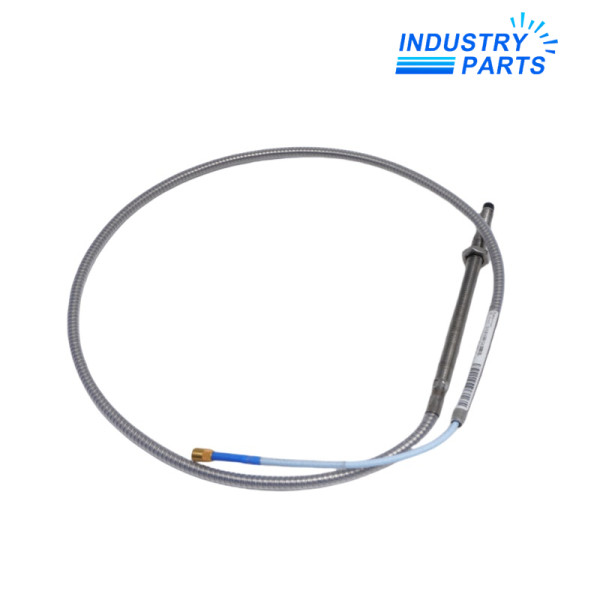

An armored metric 3300 XL 8 mm probe with a 60 mm unthreaded section and 140 mm overall case.
Product Identification
330104-06-14-10-02-00 is a 3300 XL 8 mm proximity probe with M10 × 1 threads and stainless-steel cable armor. Its suffix specifies 60 mm unthreaded length, 140 mm overall case length, one-metre total length and a miniature coaxial ClickLoc connector.
The final 00 field indicates that approvals are not required for this ordered probe. The code controls physical fit and system assembly; target material, Proximitor calibration and any hazardous-area requirement must still be checked independently.
Engineering Data
Functions
Metric armored construction
Combines an M10 × 1 case with protected cable routing.
Documented shaft measurement
The 3300 XL 8 mm system supports vibration, position, speed and Keyphasor applications.
ClickLoc connection
The gold-plated connector locks with finger-tight engagement.
Interchangeable XL system
Compatible XL components support system-level interchangeability when the correct total length and calibration are maintained.
About IndustryParts
https://www.industryparts.com/Exact identity before quotation
IndustryParts prepares 330104-06-14-10-02-00 enquiries around the complete manufacturer label, requested quantity and destination. For controlled replacements, include the host-system record, field photographs and configuration evidence that apply to this exact execution.
Applications
Metric machine brackets
Fitting an M10 × 1 probe where the 140 mm case and 60 mm unthreaded reach are required.
Relative vibration channels
Measuring shaft motion in a complete 3300 XL 8 mm transducer system.
Protected lead routing
Using armor where the one-metre cable needs mechanical protection.
Lifecycle
Dimension
Check thread, unthreaded reach, case length and cable route against the installed drawing.
Assemble
Protect the probe tip and ClickLoc surfaces; maintain cable bend radius and approved total system length.
Commission
Gap against the documented target and verify DC level, waveform, scale and monitor alarms.
FAQ
Q01
What does the 06-14 geometry mean on 330104-06-14-10-02-00?
+
It identifies a 60 mm unthreaded length and 140 mm overall case length.
Q02
Does 330104-06-14-10-02-00 carry hazardous-area approvals?
+
The final 00 ordering field states approvals not required; do not assume approval from the probe family alone.
Q03
Can an unarmored 3300 XL probe replace 330104-06-14-10-02-00?
+
Only after the installation is reviewed; the 330104 base specifically includes cable armor.
Q04
Which system parts should accompany a 330104-06-14-10-02-00 request?
+
Provide the extension cable and Proximitor Sensor identities, total system length, target material and host monitor channel.
Q05
How should 330104-06-14-10-02-00 be accepted after installation?
+
Record final gap voltage, clean waveform, expected scale response and verified alert/danger behavior.
Send the complete 330104-06-14-10-02-00 label, requested quantity and destination.
