Bently Nevada 330104-08-15-10-02-00 Armored 3300 XL 8 mm Proximity Probe

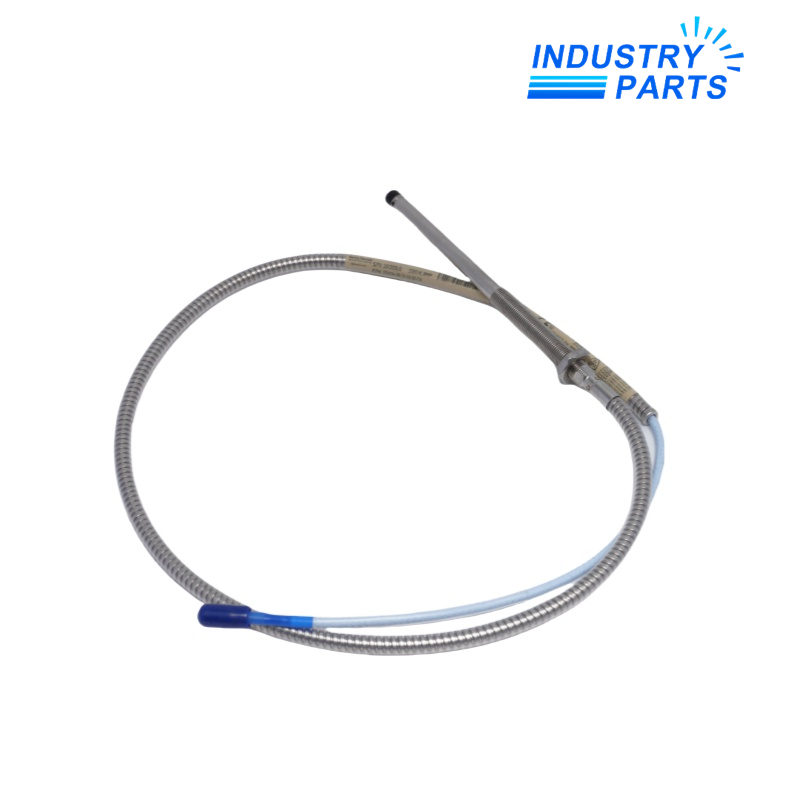

An armored metric proximity probe with an 80 mm smooth tip section and standard one-metre lead.
Product Profile
330104-08-15-10-02-00 is an M10 × 1 armored 3300 XL 8 mm probe whose two metric case fields define a compact but extended mounting geometry. It is configured with standard cable and no agency approval selection.
The correct extension cable and Proximitor Sensor must be chosen from the full channel design. Mechanical fit and electrical calibration are separate checks and both are required.
Technical Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330104-08-15-10-02-00 |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Case Thread | M10 × 1 |
| Cable Armor | Flexible stainless-steel armor with FEP outer jacket |
| Unthreaded Length | 80 mm |
| Overall Case Length | 150 mm |
| Total Probe Length | 1.0 m (3.3 ft) |
| Connector / Cable | Miniature coaxial ClickLoc connector, standard cable |
| Connector Protector | Not included |
| Agency Approval | Not required |
System Role
- Provides non-contact proximity measurement at a metric threaded mounting point.
- Offers an extended smooth section within a shorter overall case than other long-reach variants.
- Protects the probe lead with flexible armor.
- Connects into the matched 3300 XL signal-conditioning chain.
Compatibility
- Verify the 80 mm smooth section and 150 mm overall case against the bracket and target.
- Confirm thread engagement without bottoming or reducing adjustment range.
- Match cable total to the correct Proximitor Sensor.
- Check that the no-approval execution is acceptable for the installation.
Applications
- Compact long-tip radial vibration installations.
- Metric probe brackets with defined smooth-bore reach.
- Armored standard-area machinery monitoring.
FAQ
How does 330104-08-15-10-02-00 differ from the 10-20 metric configuration?
Its smooth section and total case are both shorter, so the mounting datum and final tip position must be recalculated.
Can 330104-08-15-10-02-00 be chosen from the M10 × 1 thread alone?
No. The two case lengths, cable armor, lead length, connector and approval suffix are also part of the fit.
What loop data should accompany a 330104-08-15-10-02-00 quotation?
Provide extension-cable and Proximitor Sensor numbers, channel purpose, monitor model and required site approvals.
What should be checked if 330104-08-15-10-02-00 will not reach the target?
Stop installation and compare the mounting datum, bracket thickness, thread engagement and required tip position rather than forcing the probe.
How should 330104-08-15-10-02-00 be protected during routing?
Support the armored lead, respect bend radius and keep the ClickLoc connector clean and unstressed.
What final tests are required for 330104-08-15-10-02-00?
Verify gap voltage, signal polarity, dynamic response, alarm behavior and mechanical retention.
