Bently Nevada · 3300 XL · 8 mm Reverse Mount Probe

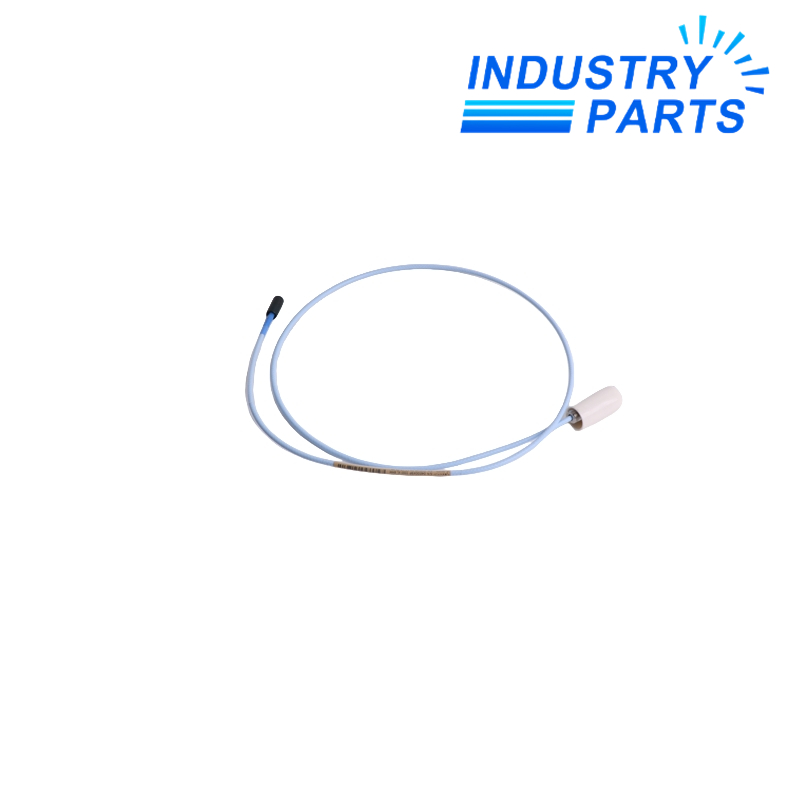

Bently Nevada 330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe
The Bently Nevada 330105-02-12-10-02-00 is a reverse-mount
probe for the 3300 XL 8 mm Proximity Transducer System. It is designed for
non-contact eddy-current measurement as part of a correctly configured
probe, extension cable and Proximitor Sensor system.
3300 XL 8 mm Reverse Mount ClickLoc Standard Cable
Product Information
Overview
The Bently Nevada 330105-02-12-10-02-00 is part of the
3300 XL 8 mm probe family and uses the reverse-mount mechanical arrangement.
It is intended for installations where the probe must be secured from the
reverse side of the mounting location.
Within a complete 3300 XL system, the probe works with the appropriate
extension cable and Proximitor Sensor. Baker Hughes specifies complete
interchangeability within compatible 3300 XL system components without
requiring individual bench matching.
Baker Hughes Technical Data
Technical Specifications
|
Manufacturer
|
Bently Nevada
|
|
Part Number
|
330105-02-12-10-02-00
|
|
Product Family
|
3300 XL 8 mm Proximity Transducer System
|
|
Probe Type
|
Reverse Mount Probe
|
|
Thread
|
3/8-24 UNF
|
|
Total Probe / Cable Length Option
|
1.0 m (3.3 ft)
|
|
Connector
|
Miniature ClickLoc coaxial connector
|
|
Cable Type
|
Standard
|
|
Agency Approval Option
|
Not required
|
|
Standard Probe Temperature Range
|
-52°C to +177°C (-62°F to +350°F)
|
|
Recommended Probe Case Torque
|
7.5 N·m (66 in·lbf)
|
|
Maximum Rated Probe Case Torque
|
22.6 N·m (200 in·lbf)
|
Ordering Code
330105-02-12-10-02-00
330105-02-12 — Reverse mount probe, 3/8-24 UNF threads
10 — 1.0 meter total length
02 — Miniature ClickLoc coaxial connector
00 — Agency approval not required
Functional Characteristics
Key Features
Reverse-Mount Construction
Designed for probe installations requiring mounting from the reverse side of the machine structure.
ClickLoc Connection
Uses the compact ClickLoc connector system for connection to compatible system cabling.
Component Interchangeability
Compatible 3300 XL components are designed for system-level interchangeability without individual component matching.
Eddy-Current Technology
Provides non-contact measurement of the distance between the probe tip and a conductive target surface.
Static Measurement
Suitable for position-related measurements when integrated into the complete proximity system.
Dynamic Measurement
Supports vibration measurements on rotating machinery using the complete transducer system.
Machinery Condition Monitoring
Applications
The 3300 XL 8 mm system is primarily used for vibration and position
measurements on fluid-film bearing machines. Baker Hughes also identifies
Keyphasor reference and speed measurements among the supported applications.
Shaft Vibration
Relative shaft vibration monitoring on rotating machinery.
Shaft Position
Static proximity measurement for shaft-position monitoring.
Keyphasor / Speed
Reference and rotational-speed measurement when configured for the application.
Official Product Documentation
Lifecycle
Baker Hughes continues to list 330105-02-12-10-02-00 in the current official 3300 XL 8 mm Proximity Transducer System datasheet.
No manufacturer-issued cancellation date or direct replacement part was
identified in the official documentation reviewed for this page.
System Matching
Before replacing a probe, verify the mounting thread, total probe length,
connector and cable option, extension-cable length and corresponding
Proximitor Sensor system length.
Product Questions
Frequently Asked Questions
1. Is 330105-02-12-10-02-00 a complete proximity system?
No. It is the probe component of a complete 3300 XL proximity transducer system.
2. Is this a forward-mount or reverse-mount probe?
It is a reverse-mount configuration.
3. Does this version use FluidLoc cable?
No. The connector and cable option identifies the standard ClickLoc configuration.
4. Are agency approvals included with 330105-02-12-10-02-00?
The final ordering option is 00, which the official datasheet defines as agency approval not required.
5. Can another 3300 XL probe be substituted directly?
The complete probe configuration and total transducer-system length should be checked before substitution.
