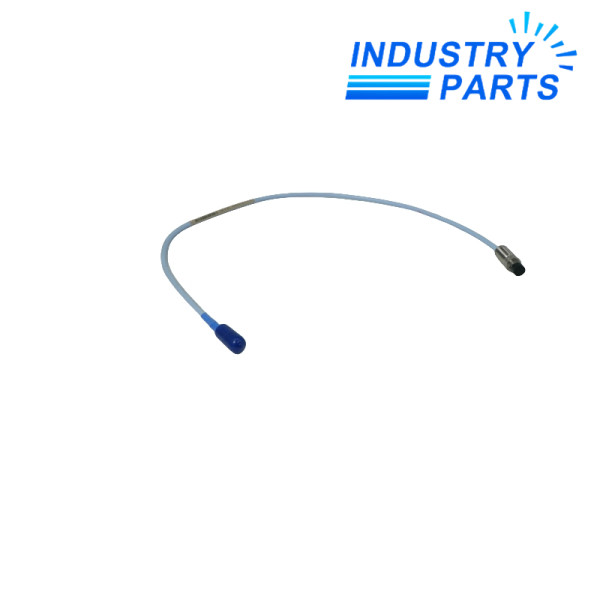

Bently Nevada 330106-05-30-05-02-00 8 mm Reverse Mount Probes

Bently Nevada 330106-05-30-05-02-00 8 mm Reverse Mount Probes

Item NO.: 330106-05-30-05-02-00
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada 330106-05-30-05-02-00 8 mm Reverse Mount Probes
  • Item NO.330106-05-30-05-02-00
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2025-01-09
Bently Nevada · 3300 XL · 8 mm Reverse Mount Probe

Bently Nevada 330106-05-30-05-02-00 3300 XL 8 mm Reverse Mount Probe

The Bently Nevada 330106-05-30-05-02-00 is an M10 × 1 reverse-mount probe for the 3300 XL 8 mm Proximity Transducer System. This configuration has a 0.5-meter total length and a miniature ClickLoc coaxial connector, with no agency approval option required.

3300 XL 8 mm Reverse Mount M10 × 1 ClickLoc
Machinery Monitoring Component

Product Profile

The Bently Nevada 330106-05-30-05-02-00 belongs to the metric reverse-mount section of the 3300 XL 8 mm probe family. The reverse-mount construction is intended for machinery installations where the probe mounting arrangement requires access from the rear of the probe sleeve or housing.

The probe is a sensing component of a complete 3300 XL proximity transducer system. It operates together with the appropriate extension cable and Proximitor Sensor to provide non-contact measurement of a conductive target.

Baker Hughes Official Data

Technical Data

Manufacturer Bently Nevada
Part Number 330106-05-30-05-02-00
Product Family 3300 XL 8 mm Proximity Transducer System
Probe Type Reverse Mount Probe
Case Thread M10 × 1
Probe Tip Diameter 8.0 mm (0.31 in)
Total Length Option 0.5 m (1.6 ft)
Connector Option Miniature ClickLoc coaxial connector
Agency Approval Option Not required
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 303 or 304 stainless steel
Standard Probe Temperature Range -52°C to +177°C (-62°F to +350°F)
System Frequency Response 0 to 10 kHz, +0 / -3 dB
Minimum Flat Target Size 15.2 mm (0.6 in) diameter
Recommended Minimum Shaft Diameter 76.2 mm (3 in)
Ordering Configuration
330106-05-30 — Metric 3300 XL 8 mm reverse-mount probe, M10 × 1 thread
05 — 0.5 meter total length
02 — Miniature ClickLoc coaxial connector
00 — Agency approval not required
Proximity Measurement Chain

System Role

Non-Contact Sensing
Provides the machine-side sensing element for detecting probe-to-target distance changes.
Reverse-Mount Installation
Supports machinery arrangements where the probe is installed from the rear side of the mounting location.
Transducer System Input
Works with compatible system components that condition the proximity signal for monitoring equipment.
Component Selection

Compatibility

The Bently Nevada 330106-05-30-05-02-00 is intended for a compatible 3300 XL 8 mm transducer configuration. The probe and extension cable lengths must be selected so their combined length corresponds to the total length of the associated Proximitor Sensor.

Before Substitution
Check the metric mounting thread, probe length, connector option, extension-cable length and system-length requirement. Approval requirements must also be checked separately when the installation is in a hazardous area.
Rotating Machinery Monitoring

Applications

The 3300 XL 8 mm system is used for non-contact measurements on rotating machinery, including relative shaft vibration, shaft position and rotational-reference tasks.

Shaft Vibration
Relative shaft-motion monitoring on rotating equipment.
Shaft Position
Non-contact static position measurement at machine bearings and shafts.
Speed / Keyphasor
Rotational reference or speed measurement when configured appropriately.
Product Questions

Frequently Asked Questions

1. What type of probe is 330106-05-30-05-02-00?
It is a metric reverse-mount probe in the 3300 XL 8 mm proximity transducer family.
2. Is this probe metric?
Yes. This reverse-mount family uses an M10 × 1 case thread.
3. Is hazardous-area approval included?
No. The final ordering code is 00, which specifies that agency approval is not required.
4. Can the probe operate by itself?
No. It is designed as one component of a complete compatible proximity transducer system.
5. Can a similar reverse-mount probe be substituted directly?
The mechanical configuration, cable length and complete system-length matching should be verified before substitution.
