Bently Nevada 330106-05-30-05-02-05 Proximity Probes

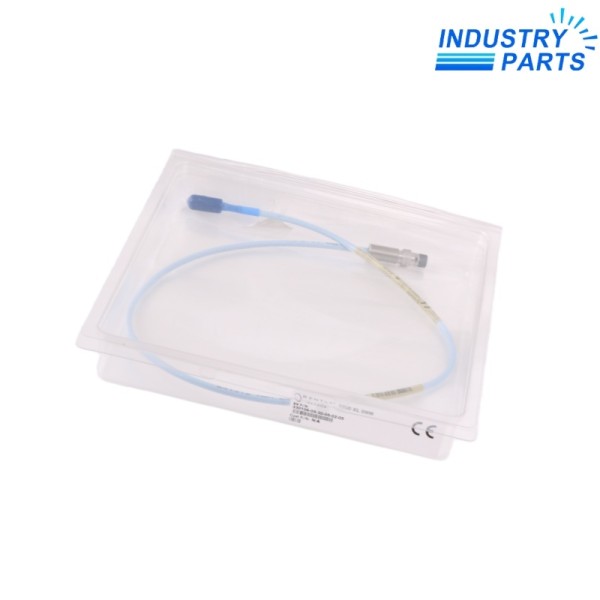

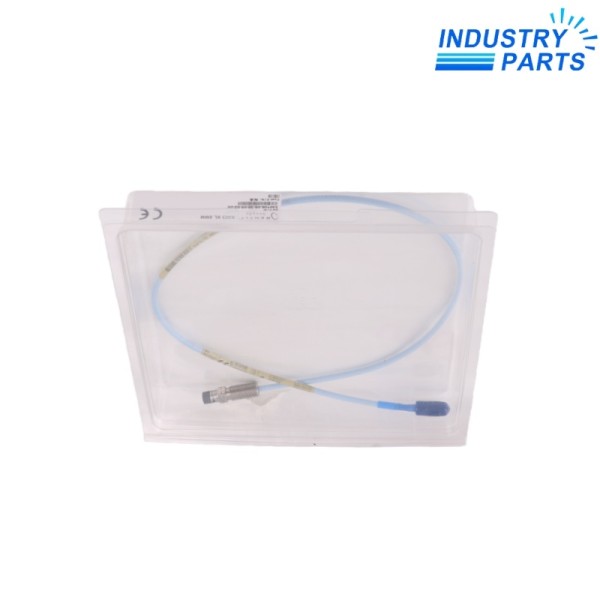

Bently Nevada 330106-05-30-05-02-05 Proximity Probes

Item NO.: 3430090
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada 330106-05-30-05-02-05 Proximity Probes
  • Item NO.3430090
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2025-11-04
Bently Nevada · 3300 XL · Approved Reverse Mount Probe

Bently Nevada 330106-05-30-05-02-05 3300 XL 8 mm Reverse Mount Probe

The Bently Nevada 330106-05-30-05-02-05 is an M10 × 1 reverse-mount probe for the 3300 XL 8 mm Proximity Transducer System. Its ordering configuration specifies a 0.5-meter total length, miniature ClickLoc coaxial connector and CSA, ATEX and IECEx agency approvals.

3300 XL Reverse Mount M10 × 1 ClickLoc CSA / ATEX / IECEx
Approved Machinery Monitoring Component

Product Profile

The Bently Nevada 330106-05-30-05-02-05 is part of the metric reverse-mount range within the 3300 XL 8 mm proximity transducer family. Its mechanical design supports reverse-side installation in suitable bearing housings and machinery-monitoring arrangements.

This ordering option adds the manufacturer-specified approval package for applications where the applicable CSA, ATEX or IECEx certification is required. Installation must follow the conditions associated with the applicable approval.

Baker Hughes Official Data

Technical Data

Manufacturer Bently Nevada
Part Number 330106-05-30-05-02-05
Product Family 3300 XL 8 mm Proximity Transducer System
Probe Type Reverse Mount Probe
Case Thread M10 × 1
Probe Tip Diameter 8.0 mm (0.31 in)
Total Length Option 0.5 m (1.6 ft)
Connector Option Miniature ClickLoc coaxial connector
Agency Approval Option CSA, ATEX, IECEx Approvals
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 303 or 304 stainless steel
Standard Probe Temperature Range -52°C to +177°C (-62°F to +350°F)
System Frequency Response 0 to 10 kHz, +0 / -3 dB
Minimum Flat Target Size 15.2 mm (0.6 in) diameter
Recommended Minimum Shaft Diameter 76.2 mm (3 in)
Ordering Configuration
330106-05-30 — Metric 3300 XL 8 mm reverse-mount probe, M10 × 1 thread
05 — 0.5 meter total length
02 — Miniature ClickLoc coaxial connector
05 — CSA, ATEX and IECEx approvals
Proximity Measurement Chain

System Role

Machine Sensing
Detects changes in distance between the probe tip and the conductive machine target.
Reverse-Mount Access
Provides a reverse-side mechanical installation arrangement for suitable machinery locations.
Approved Configuration
Provides the manufacturer-specified approval option for applicable certified installations.
System & Approval Matching

Compatibility

The Bently Nevada 330106-05-30-05-02-05 must be combined with compatible 3300 XL transducer-system components. The probe and extension cable lengths are selected so the complete electrical length corresponds to the associated Proximitor Sensor.

Approval Compatibility
Hazardous-area use depends on the complete approved installation, not only the probe part number. Follow the applicable Bently Nevada installation drawing and certification conditions for the selected protection method.
Critical Machinery Monitoring

Applications

The 3300 XL 8 mm platform is intended for non-contact machinery measurements, including shaft vibration, shaft position and rotational-reference functions when configured as the appropriate complete transducer system.

Shaft Vibration
Continuous relative shaft-motion measurement on rotating machinery.
Position Monitoring
Static shaft or machine-position measurement using non-contact proximity sensing.
Hazardous Locations
Applicable approved machinery installations when used in accordance with the relevant certification requirements.
Product Questions

Frequently Asked Questions

1. What is 330106-05-30-05-02-05?
It is an approved M10 × 1 reverse-mount probe for the Bently Nevada 3300 XL 8 mm transducer system.
2. Which approvals are specified for this configuration?
The final 05 ordering option specifies CSA, ATEX and IECEx approvals.
3. Is it the same configuration as the version ending in 00?
No. The main ordering difference is the agency approval option: 00 requires no agency approval, while 05 specifies CSA, ATEX and IECEx approvals.
4. Is an extension cable included?
The part number identifies the reverse-mount probe itself. The required system components are selected according to the complete transducer configuration.
5. Is certification alone enough for hazardous-area installation?
No. The complete installation must comply with the applicable approval conditions and Bently Nevada installation requirements.
