3300 XL 8 mm | 4.0 m (11.5 ft) extension-cable configuration

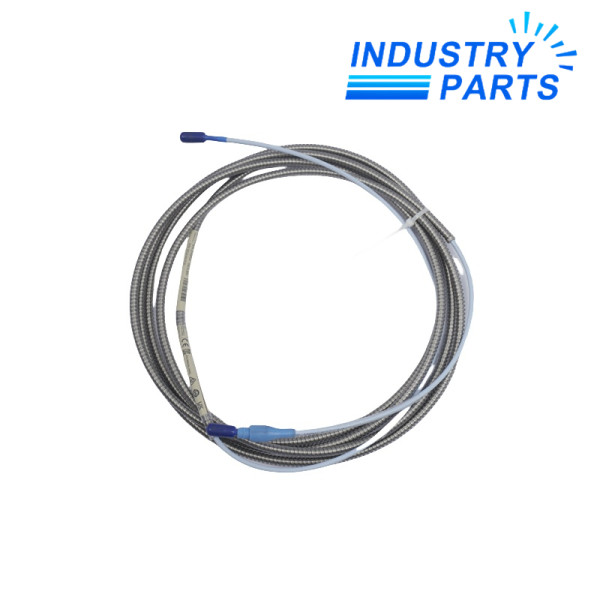

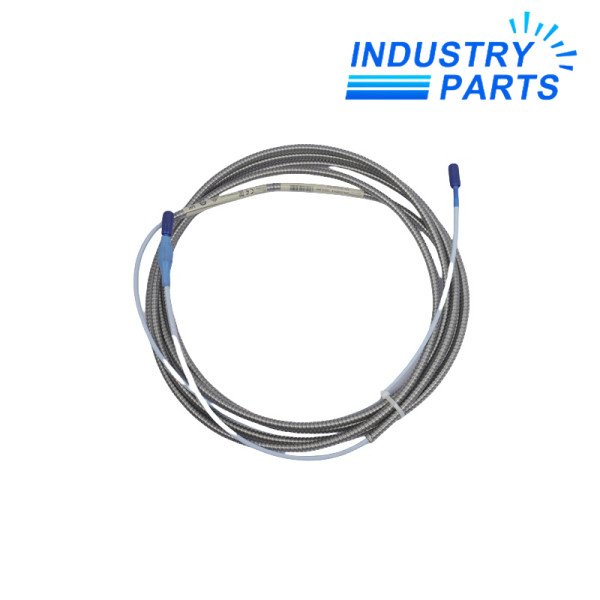

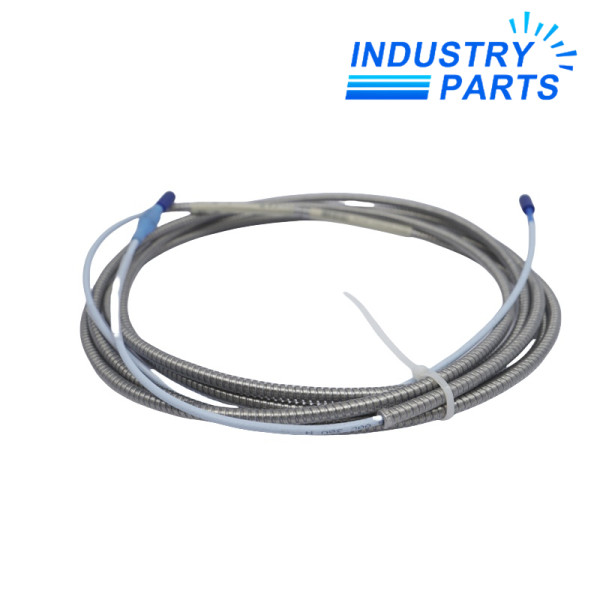

Bently Nevada 330130-040-03-00 3300 XL Standard Extension Cable
A 4.0 m (11.5 ft) armored and connector-protected cable for completing the specified 3300 XL 8 mm system length.
BrandBently Nevada
Model330130-040-03-00
Product Type3300 XL Standard Extension Cable
01
Product Identification
330130-040-03-00 is a Bently Nevada 3300 XL standard extension cable for the 8 mm proximity transducer system. Its ordering code specifies 4.0 m (11.5 ft), armored cable with connector protector and no agency approval option.
The 330130 family is the standard-temperature extension-cable range; the distinct 330190 family is used for extended-temperature cable requirements.
02
Engineering Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Part Number | 330130-040-03-00 |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Component | 3300 XL standard extension cable |
| Cable Length | 4.0 m (11.5 ft) |
| Cable Option | Armored cable with connector protector |
| Agency Approval Option | Not required |
| Base Cable | 75 Ω triaxial, FEP insulated |
| Armor | Flexible AISI 302 or 304 stainless steel with FEP outer jacket |
| Core Resistance | 0.88 ± 0.13 Ω |
| Jacket Resistance | 0.26 ± 0.05 Ω |
| Typical Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Maximum Connector Torque | 0.565 N·m (5 in·lbf) |
| Operating / Storage Temperature | -52 to +177 °C |
03
Functions
- Carries the proximity-transducer signal between the probe and Proximitor Sensor.
- Establishes 4.0 m (11.5 ft) of the complete system electrical length.
- Armored cable with connector protector provides the mechanical configuration selected by the middle option code.
- Not required defines the ordered certification selection.
- Maintains the documented 3300 XL electrical characteristics when used in the correct matched system.
04
Applications
- Radial vibration and shaft-position measurement on fluid-film bearing machinery.
- Axial position, eccentricity and differential-expansion measurement when configured with the correct probe and monitor.
- Keyphasor and speed measurement within the documented limitations of the complete 3300 XL system.
- Maintenance replacement where the installed loop requires a 4.0 m (11.5 ft) 330130 cable.
05
Lifecycle
- Keep the complete 330130-040-03-00 identifier in the maintenance record; every suffix changes a selection parameter.
- Confirm probe length, Proximitor total length and hazardous-area documentation before ordering a spare.
- Protect the connector interface and maintain the 25.4 mm minimum bend radius during installation.
- After replacement, verify gap voltage and measurement response before restoring machinery protection.
