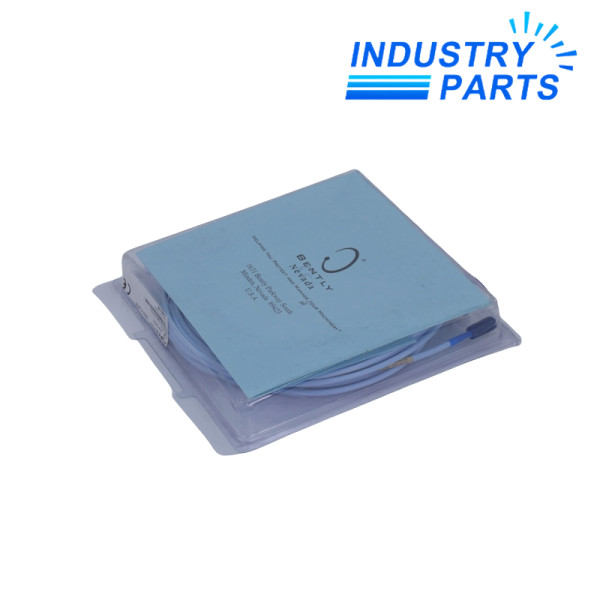

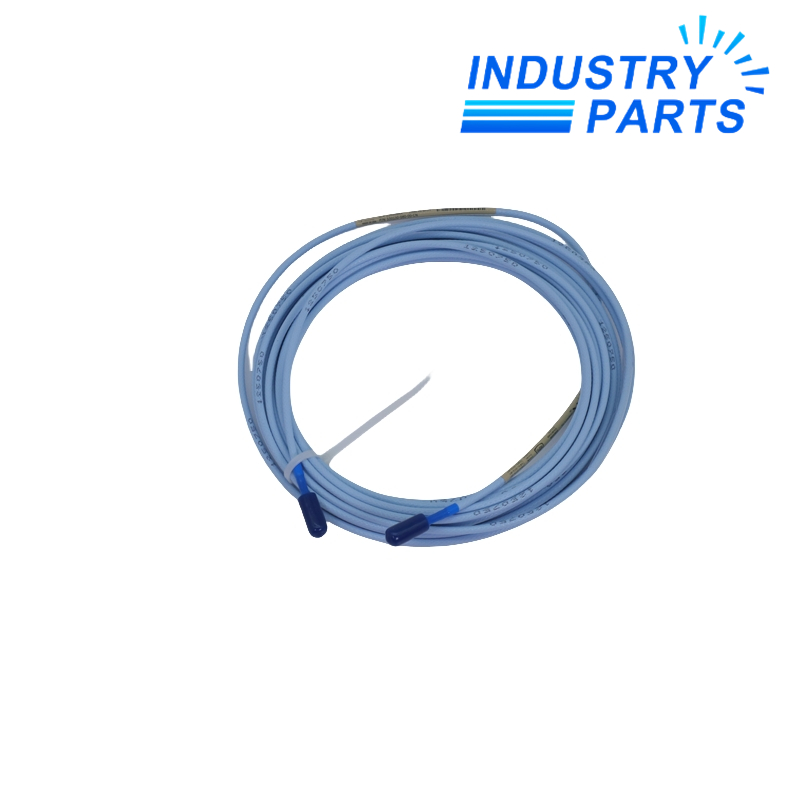

Bently Nevada 330130-080-00-CN Extension Cable
An 8.0 m standard 3300 XL extension cable whose CN suffix must remain attached to the installed ordering identity.
Product Profile
330130-080-00-CN is a standard 3300 XL extension cable used in 5 mm and 8 mm proximity transducer measurement chains.
Length code 080 identifies an 8.0 m cable and option 00 identifies standard cable without armor or factory-installed connector protectors.
The CN suffix is preserved exactly as supplied. Because the current global ordering table does not decode that suffix, its market or approval meaning must be confirmed from the physical label and purchasing record rather than inferred.
Technical Data
| Manufacturer | Bently Nevada |
|---|---|
| Exact model | 330130-080-00-CN |
| Product family | 3300 XL 5 mm / 8 mm proximity transducer system |
| Component type | Standard extension cable |
| Cable length | 8.0 m (26.2 ft) |
| Cable option | 00 — standard cable |
| Armor | No armor |
| Connector protectors | Not factory-installed under option 00 |
| Cable construction reference | FEP insulation for the standard 330130 family |
| Ordering suffix | CN retained; confirm label-specific approval or market meaning |
| System rule | Probe length plus extension cable length must equal the Proximitor Sensor total length |
System Role
The 8.0 m length supports a documented total-length measurement chain.
Standard cable construction keeps the option separate from armored, FluidLoc and protector-equipped versions.
Miniature coaxial connections form the probe-to-Proximitor signal path.
Exact suffix retention prevents an approval or market variant from being silently collapsed into a generic cable.
Compatibility
- Add the probe lead and 8.0 m extension cable to confirm the Proximitor Sensor total length.
- Inspect both coaxial connectors, insulation and routing before installation.
- Retain the CN suffix in procurement, receiving and maintenance records.
- After connection, verify gap voltage, signal stability, cable continuity and channel alarms.
Applications
- Length completion in a 3300 XL 5 mm or 8 mm transducer system.
- Replacement of a documented 8.0 m standard extension cable.
- Machine vibration, position, Keyphasor or speed channels using the approved total system length.
FAQ
Can 330130-080-00-CN be shortened in the field?
No. System length is part of the calibrated transducer chain; do not cut or splice the extension cable.
Does option 00 on 330130-080-00-CN include armor?
No. The current ordering table defines option 00 as standard cable without armor or factory-installed connector protectors.
What does the CN suffix mean on 330130-080-00-CN?
Retain it exactly and confirm its meaning from the cable label and original order record; the current global ordering table does not define that suffix.
What should accompany a 330130-080-00-CN enquiry?
Provide labels for the probe, extension cable and Proximitor Sensor, plus probe length, total system length, connector condition and site approval needs.
How can 330130-080-00-CN be checked after installation?
Verify continuity and connector seating, then confirm stable bias or gap voltage, dynamic signal quality and alarm behavior on the complete channel.
