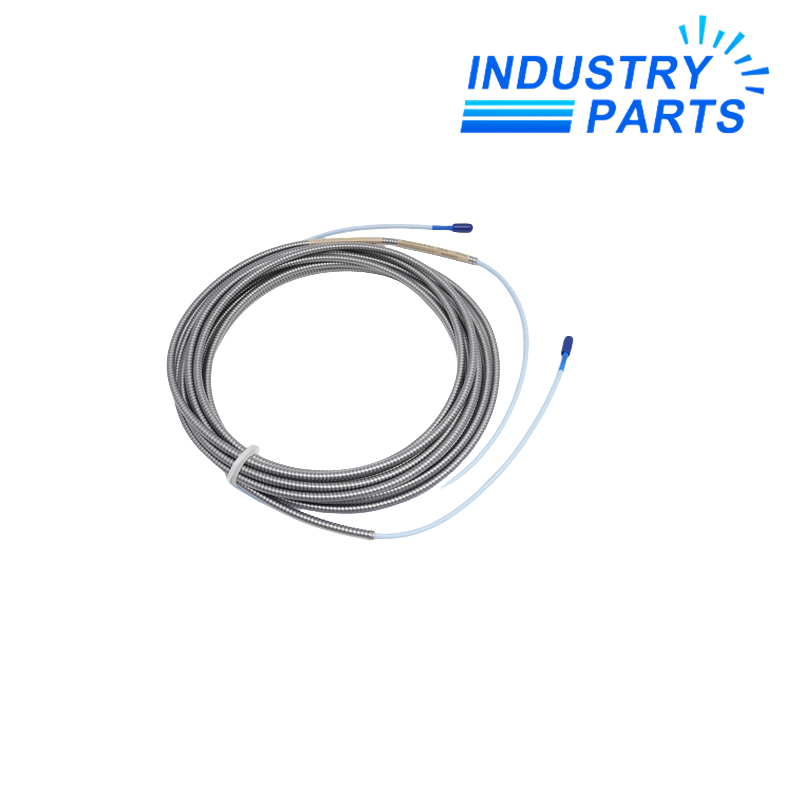

330130-080-01-05 is an 8.0 m Bently Nevada 3300 XL extension cable for the 8 mm proximity transducer system. Its middle option code specifies armored cable, while the final 05 code selects CSA, ATEX and IECEx approvals.

The cable links the proximity probe to the Proximitor Sensor. Probe-lead length plus the 8.0 m extension cable must equal the total electrical length selected for the Proximitor Sensor.

• Carries the proximity-transducer signal between the 3300 XL probe and Proximitor Sensor.
• Provides 8.0 m of the complete electrical length required by the measurement loop.
• Uses armored cable for the selected mechanical and environmental arrangement.
• Preserves the documented 3300 XL electrical characteristics when installed with compatible components.
• Supports machinery-protection measurements only as part of the complete configured transducer system.

• Retain the complete 330130-080-01-05 identifier because the length, cable option and approval suffix are all significant.
• Record the probe lead length and Proximitor Sensor total length before removing the existing extension cable.
• Do not replace the armored construction with a different middle option without reviewing the installation environment.
• Inspect connector condition, maintain bend radius and verify gap voltage after reconnection.
• Keep hazardous-area approval selection consistent across the complete measurement loop.

• Radial vibration and shaft-position measurement on fluid-film bearing machinery.
• Axial position, eccentricity and differential-expansion measurement with a compatible probe and monitor.
• Keyphasor and speed measurements within the documented limits of the complete 3300 XL system.
• Maintenance replacement for an installed loop that requires the armored 8.0 m option.
