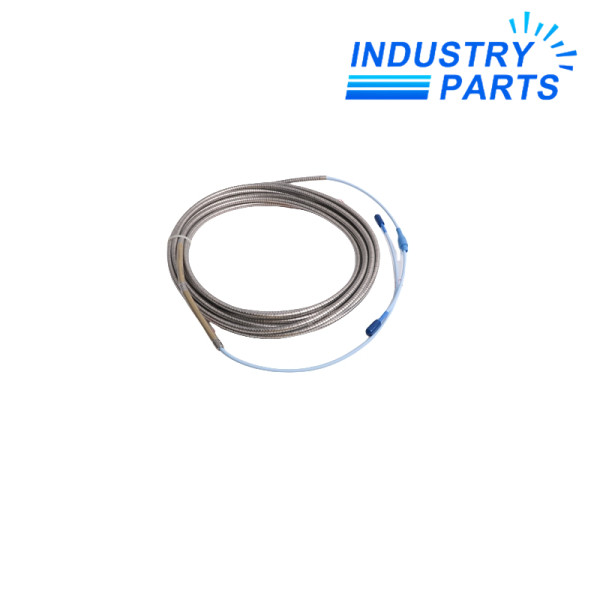

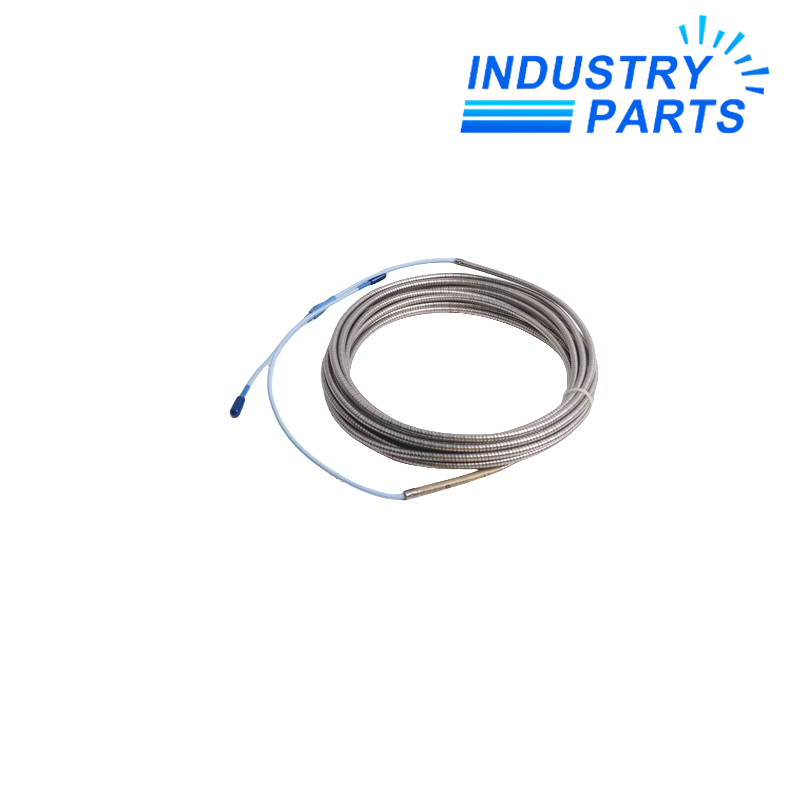

Bently Nevada 330130-085-03-05 Armored Extension Cable
An 8.5 m armored extension cable with connector protector and CSA, ATEX and IECEx approval option.
Product Profile
330130-085-03-05 is configured as an 8.5 m (27.9 ft) extension cable for the Bently Nevada 3300 XL 8 mm proximity system. Option 03 adds armor and a connector protector, while suffix 05 identifies the multiple-approval configuration.
This length normally complements a 0.5 m probe lead when the Proximitor Sensor is selected for a 9.0 m total system. The actual installed probe and Proximitor part numbers must still be verified.
Technical Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330130-085-03-05 |
| Series | 3300 XL 8 mm |
| Cable Length | 8.5 m (27.9 ft) |
| Cable Construction | Armored cable with connector protector |
| Base Electrical Cable | 75 Ω triaxial, FEP insulated |
| Armor Material | Flexible AISI 302 or 304 stainless steel with FEP outer jacket |
| Agency Approval Option | CSA, ATEX and IECEx |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Maximum Connector Torque | 0.565 N·m (5 in·lbf) |
| Operating / Storage Range | -52 to +177 °C for standard cable |
| System-Length Rule | Probe lead plus 8.5 m cable must equal Proximitor total length |
System Role
- The cable completes the electrical path between the eddy-current probe and the Proximitor Sensor.
- Stainless-steel armor provides additional mechanical protection for the routed cable.
- The factory connector protector increases environmental protection at the cable junction.
- The certified 05 option preserves the specified approval package for the ordered component.
Compatibility
- Pair 330130-085-03-05 with a compatible 3300 XL 8 mm probe and matching Proximitor Sensor system length.
- A common 9.0 m arrangement uses the 8.5 m cable with a 0.5 m probe lead; confirm the actual probe code.
- Observe bend-radius and connector-torque limits, especially where the armored ferrule enters conduit or a housing.
- Do not mix system families solely because their connectors appear similar.
Applications
- Long cable routes from machine bearings to protected Proximitor housings.
- Vibration and position measurement where mechanical cable protection is required.
- Approved hazardous-area installations built around the documented 3300 XL system configuration.
- Maintenance replacement of an 8.5 m armored cable with factory connector protection.
FAQ
What length is encoded by 330130-085-03-05?
The 085 code specifies 8.5 m (27.9 ft).
What does option 03 mean on 330130-085-03-05?
It specifies armored cable with a connector protector.
Which approvals are included with 330130-085-03-05?
The 05 suffix specifies CSA, ATEX and IECEx approvals.
Which probe lead commonly completes a 9 m system with 330130-085-03-05?
A 0.5 m probe lead commonly combines with the 8.5 m cable, but the exact probe and Proximitor codes must be checked.
Does the armor on 330130-085-03-05 remove bend-radius limits?
No. The minimum documented cable bend radius remains 25.4 mm.
What should be verified before replacing 330130-085-03-05?
Check the exact model, probe lead length, Proximitor total length, armor route, connector protection and hazardous-area documentation.
